Hangar 9 Pulse XT 60 ARF User Manual
Page 32
32

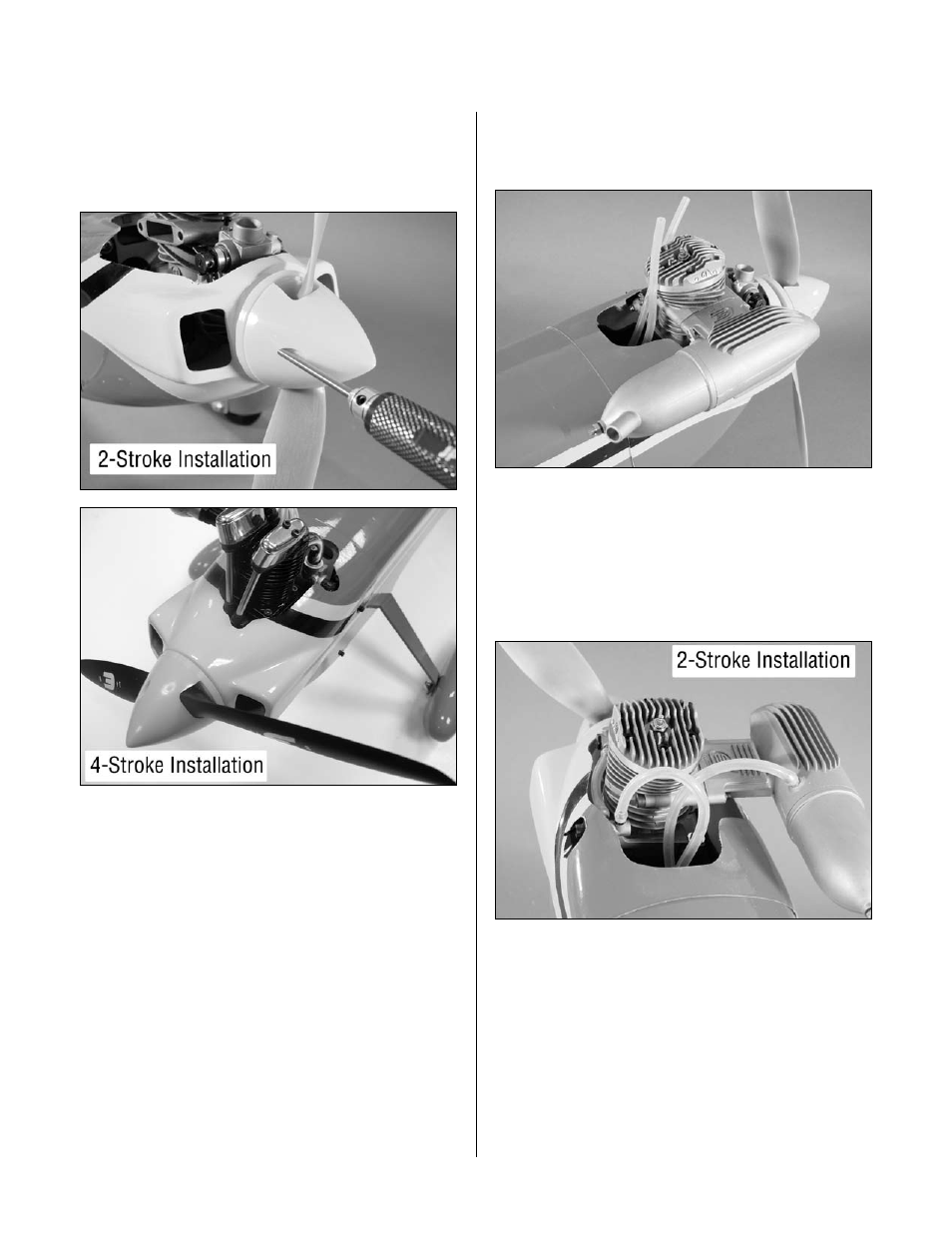

Step 27
Use a #1 Phillips screwdriver and the screws
supplied with the spinner to secure the spinner cone
to the backplate.
Note: The propeller must not contact
the spinner cone. Adjust the position
of the propeller on the backplate, or
use a rotary tool and sanding drum to
remove material from the spinner cone
so the two do not contact each other.
Step 28
Attach the muffler as instructed in the manual for your
particular engine.
Step 29
Connect the lines from the fuel tank to the engine. Make
sure the vent line is attached to the muffler and the line
from the clunk to the carburetor. Cut down the length
of the line as necessary so it does not interfere with the
operation of your engine.
Section 4: Glow Engine and Cowling Installation
