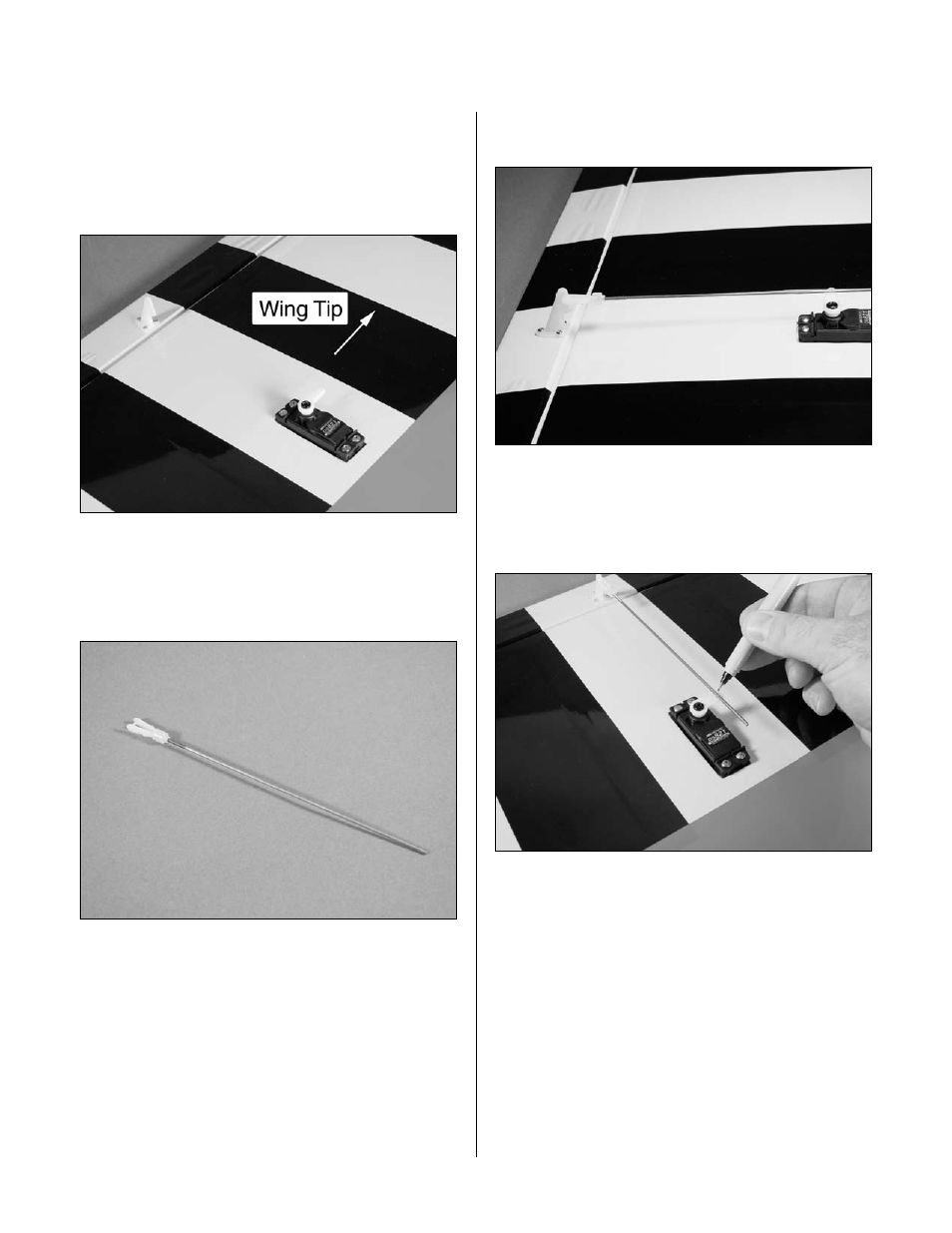

 Step 12
Secure the servo using the screws provided with
the servo. The servo is positioned so the output of the
servo faces the aileron, and the servo arm will face toward
the wing tip.
 Step 13
Slide a clevis retainer onto one of the nylon clevises.
Thread the clevis 14 turns onto the 6 1 /
4
-inch (160mm)
threaded pushrod.
 Step 14
Attach the clevis to the center hole on the servo horn.
 Step 15
Center both the aileron servo and aileron. Use a felt-tipped
pen to mark the pushrod where it crosses the outer hole of
the servo arm.
Section 1: Aileron Servo Installation
