31

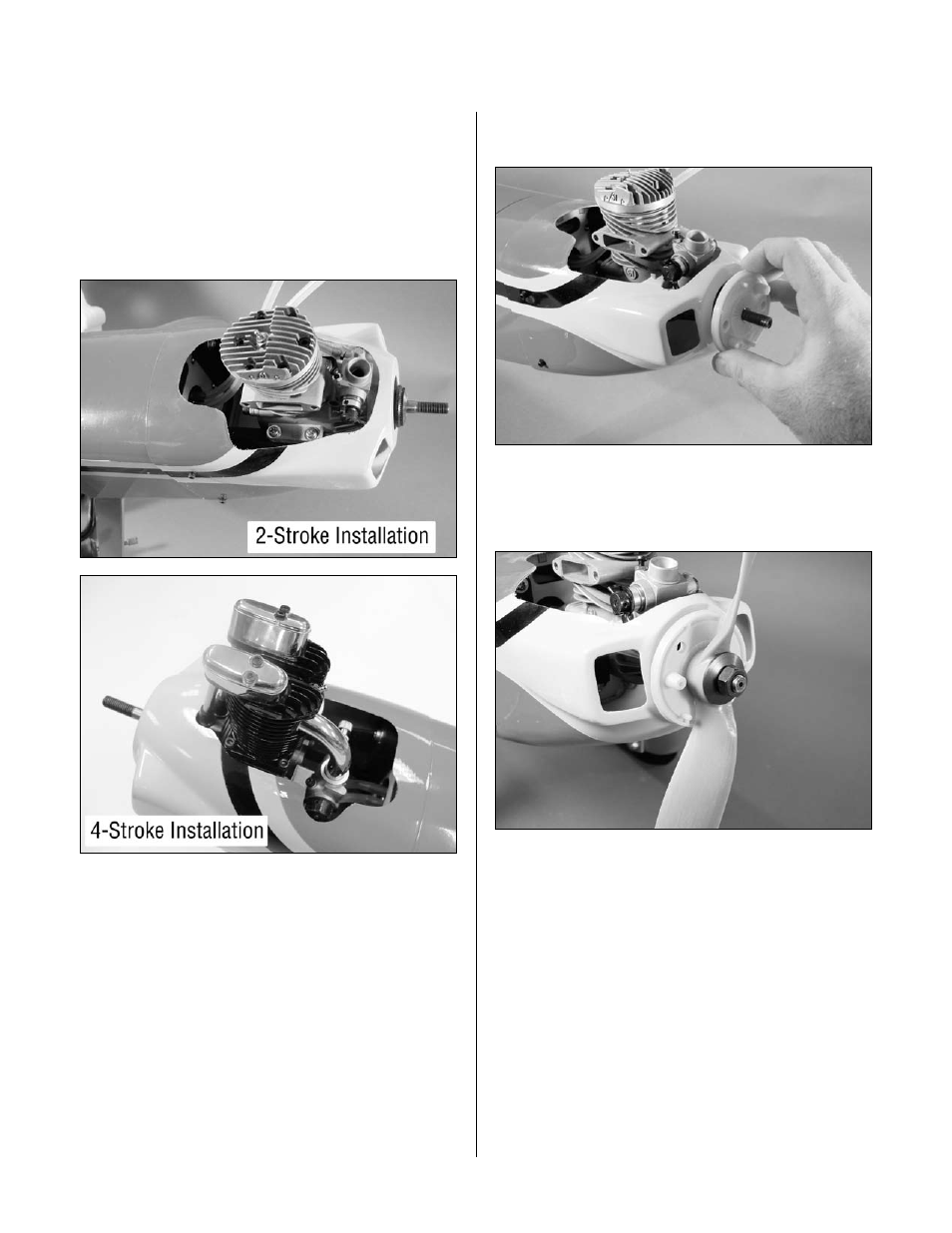

 Step 24
Install the engine back onto the engine mount. Slide the
cowling over the engine, trimming the cowl as necessary
to fit over the engine and provide clearance for items such
as the needle valve and muffler. The cowl can be secured
using the four 4-40 x 3/8-inch socket head screws and
four #4 washers at this time.
 Step 25
Slide the spinner backplate onto the propeller shaft.
 Step 26
Slide the propeller into position, aligning it with the pins
on the spinner backplate.
Section 4: Glow Engine and Cowling Installation
