Logical Device View

Accessing the Logical Device View

Device View

DEC GigaSwitch

2-4

Management Module Guide

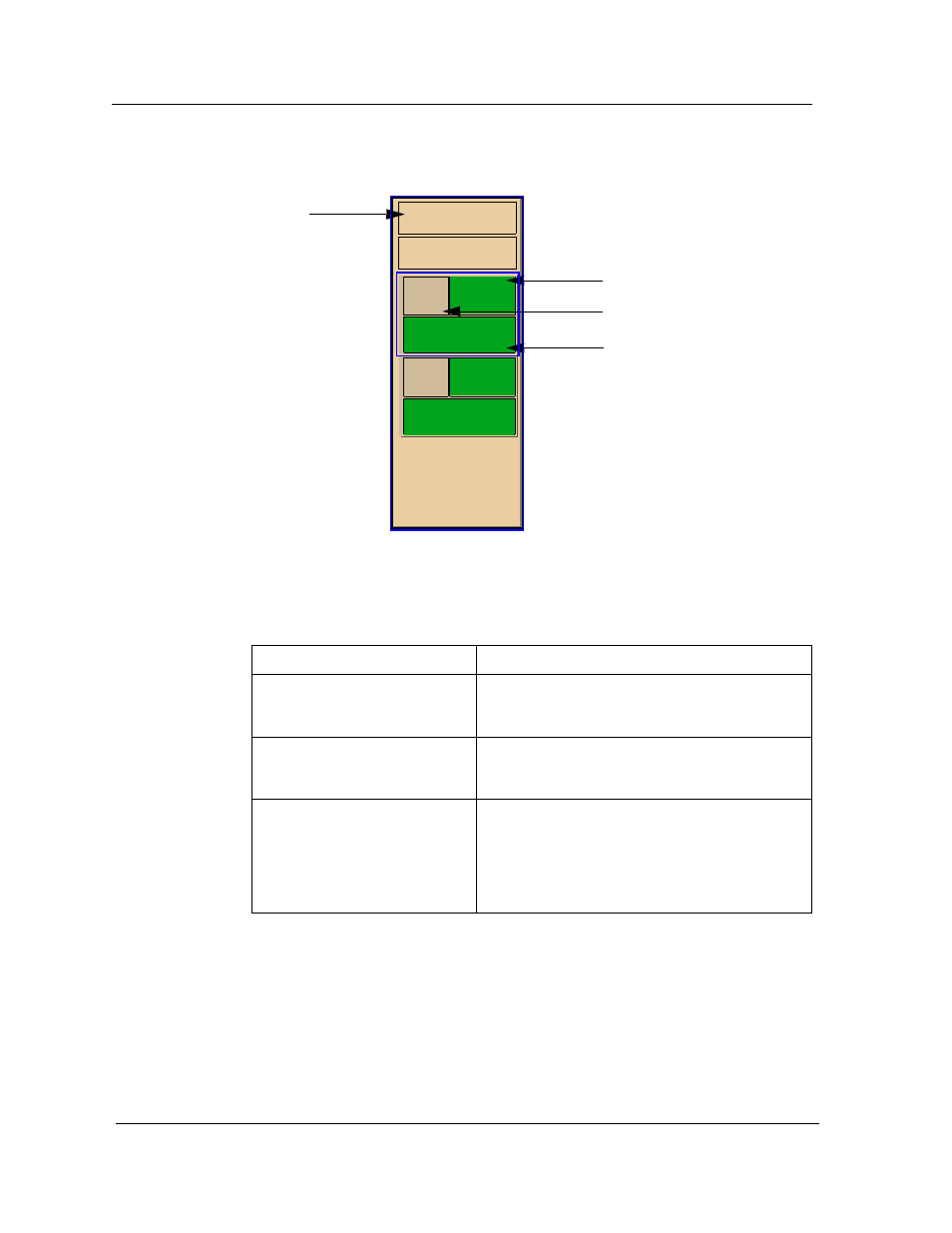

Figure 2-2.

DEC Gigaswitch Logical Device View - Label and Double-Click Zones

6

FGL2

Run

Spanning

14

Run

Spanning

13

Port Status/
Port Configuraton view

Port Number/
Port Notes view

Port Application/
STP Table view

Module Number/
Module Notes view

Table 2-1.

Module Menu Selections

Menu Selection

Description

Module Notes

Opens the Module Notes view, allowing you to
write, save, and email notes about the highlighted
module.

Module Port Table

Opens the Module Port Table view, which displays
the module’s number, its ports, the MIB II Index
and Bridge Ports.

Module Configuration

Opens the Board Table view, allowing you to
change the DEC Gigaswitch’s status. NotPresent,
PowerDown, PowerUp, PowerDownTheUp,
Fault, RevMismatch, and SelfTestInProgress

are the status choices. For more information, refer
to Chapter 3, Configuration Views.
