15.16.Lift the deflector from the anti-pivot hole there
are (2) hooks that support the assembly in the
defector. See Figure 15.16.
15.17.Examine the removes joy stick assembly: If it
failed because of something other than normal
wear, identify and correct the cause before
returning to service
15.18.Install new joystick assembly by reversing the
removal procedure.
15.19.Test/ adjust the cables before returning to ser-
vice.
15.20.Unwind the cables prior to attaching them to the
Snow Thrower.Allow the cables to flow without
tangling or twisting. See Figure 15.20.

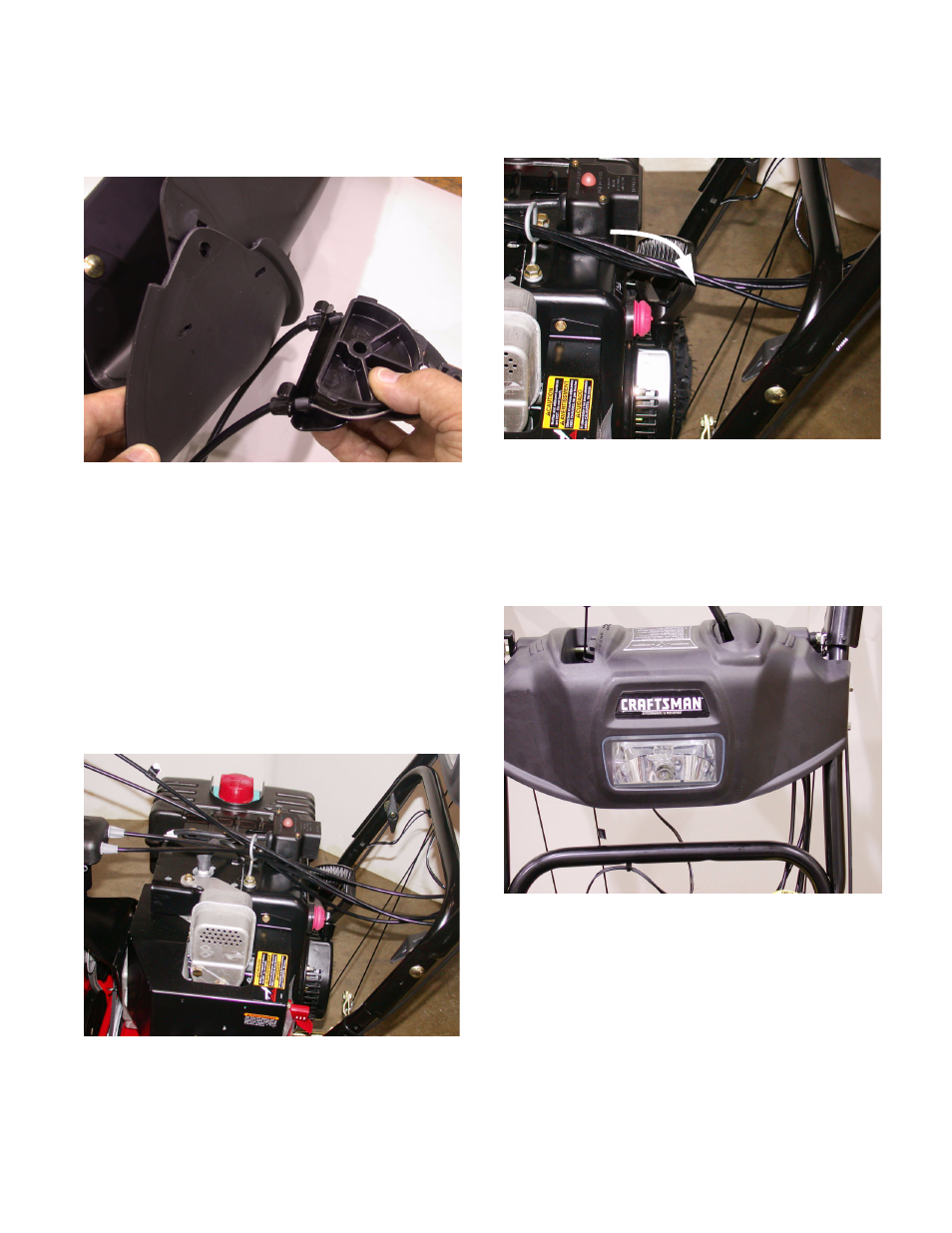

Figure 15.16
Figure 15.20
15.21.Twists or kinks in the cable can create a bind in
the chute directional control. See Figure 15.21.
16. OPTIONAL LIGHTING
16.1. Some units come equipped with a head lamp.If
not originally fitted with a halogen bulb they can-
not convert to halogen because the extra heat
will melt the housing. See Figure 16.1.
16.2. The lamp is set up in a series circuit, and pow-
ered from a 12V output stator equi8ped in the
engine.
NOTE: Beginning in the 2005/1 season if a snow
thrower is not equipped with a head light there
are no provisions to add one.
Figure 15.21
Figure 16.1
