500 and 600 SERIES 2-STAGE SNOW THROWER
6
7. SPEED SELECTOR CABLE
7.1. A cable has replaced the rod to link from the
speed control lever to the speed control assem-
bly on some models.
7.2. With the engine stopped and allowed to cool dis-
connect the spark plug wire and ground it to the
engine
7.3. Confirm that the fuel level is low enough to pre-
vent spillage through the gas cap vent, or seal
the vent with a plastic bag between the fuel cap
and the filler neck.
7.4. Carefully tip the snow thrower forward so it rests
on the auger housing
7.5. Remove the bottom access panel.
7.6. Place a block on the left side of the drive wheel
to hold the shifter arm stationary. See Figure 7.6.
7.7. Release the tension on the Speed selector cable
with two 7/16” wrenches. See Figure 7.7.
7.8. Loosen the cable screw and nut enough to free
the z-fitting from the from the Speed control pivot
bracket.

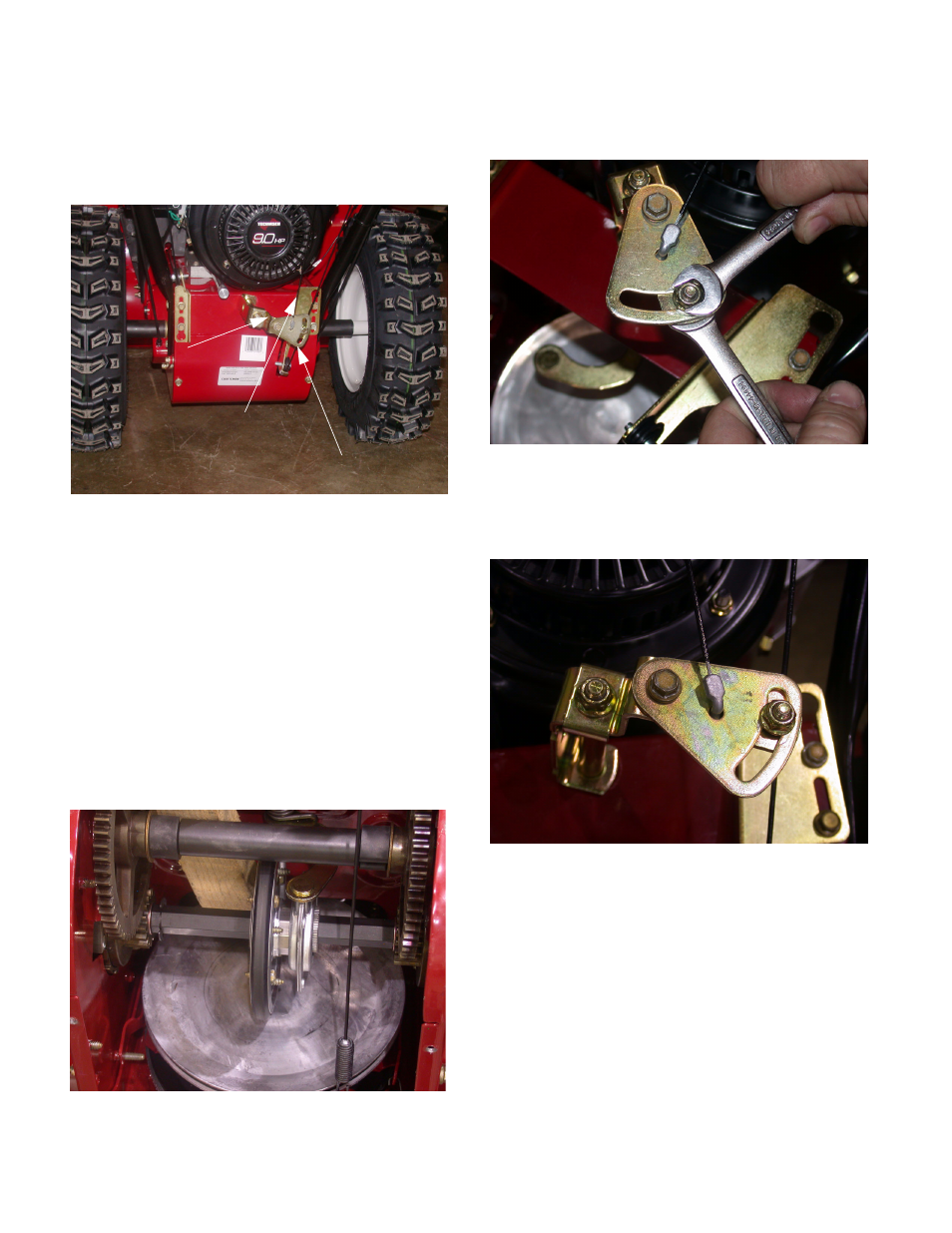

Figure 7.1
Shifter Arm
Speed Control Cable
Speed Control Pivot Bracket
Figure 7.6
Figure 7.7
Figure 7.8
