COP-USA CD66MK-HW User Manual
Page 27
- 24 -

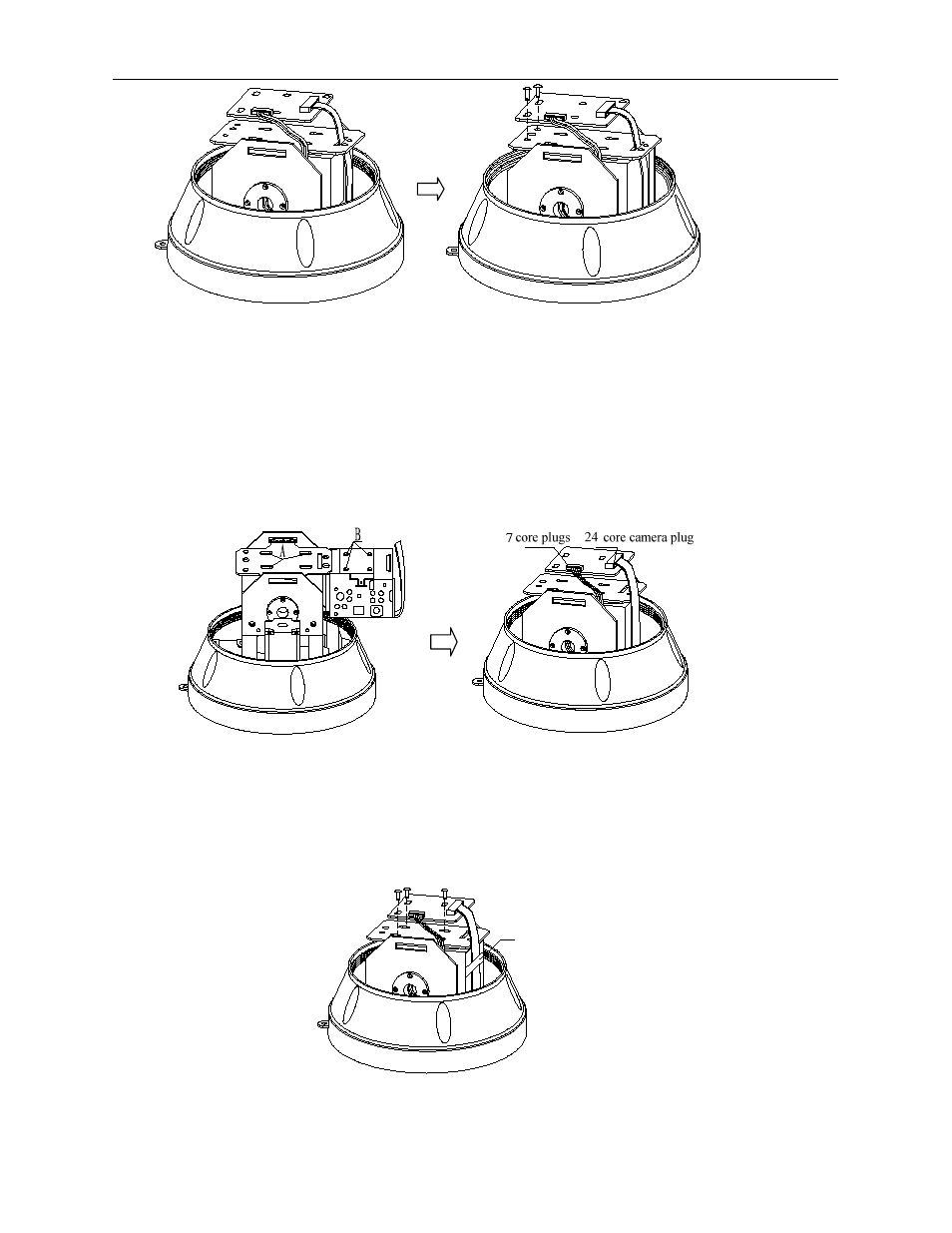

Figure 22 Figure 23
2) The Installing way of Samsung camera
：
a)
Take out Samsung camera’s junction board, make it that Camera on hole B alignment camera mounting
panel hole A ,then take out camera junction panel ,and insert the camera flat wire to the 24 core camera
plug, then insert the plug to 7 core plugs.
（As Figure 24 shows）.
Figure 24
b)
please fix the hole of camera Junction panel according to the hole A and hole B with three pcs
M2X5 screws, finally please fix the camera flat wire to the camera with black Sticks strip, so as it
could avoid the bottom of camera touching of the PCB board.
（As Figure 25 shows）.
black Sticks strip
Figure 25
