b)

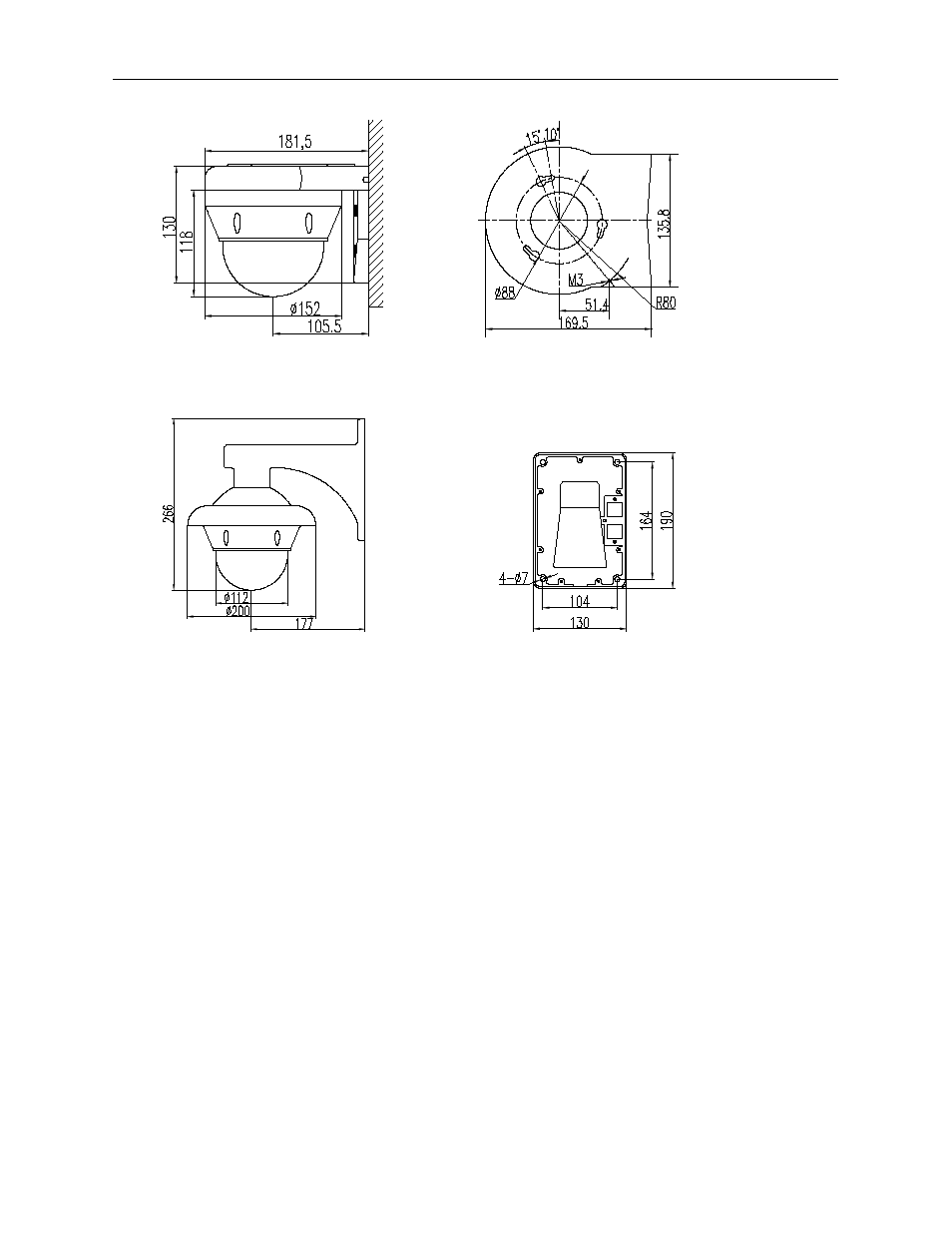

Wall installation
Figure 4 Figure 5
c)
Outdoor wall Installation
Figure 6
Figure 7
4.6 Installing of the dome
1)
Steps of installation for ceiling bracket.
a)
Open the packing cartons, take out of the dome and accessories carefully.
b)
Drill 3 holes according to the size on the ceiling.
（Figure 8）.
c)
Fix the dome on the ceiling with screws.（Figure 8）.
d)
Take out of the dome, and put three pieces of screws into the fixing hole, rotate it
towards the clockwise direction until it’s tighten.
（Figure 9）.
