C-650 Operation Manual, Version B 5 Putting into operation 23
5.5 Installing the nebulizer/glass chamber assembly
Parafilm TM is used to cover various openings inside the compartment, nebulizer and glassware to
prevent dust particles from entering the detector during shipment.
NOTE
When installing the transparent black front cover, first fix its right side, and then push its left side.
When removing the front cover, pull only its left side.

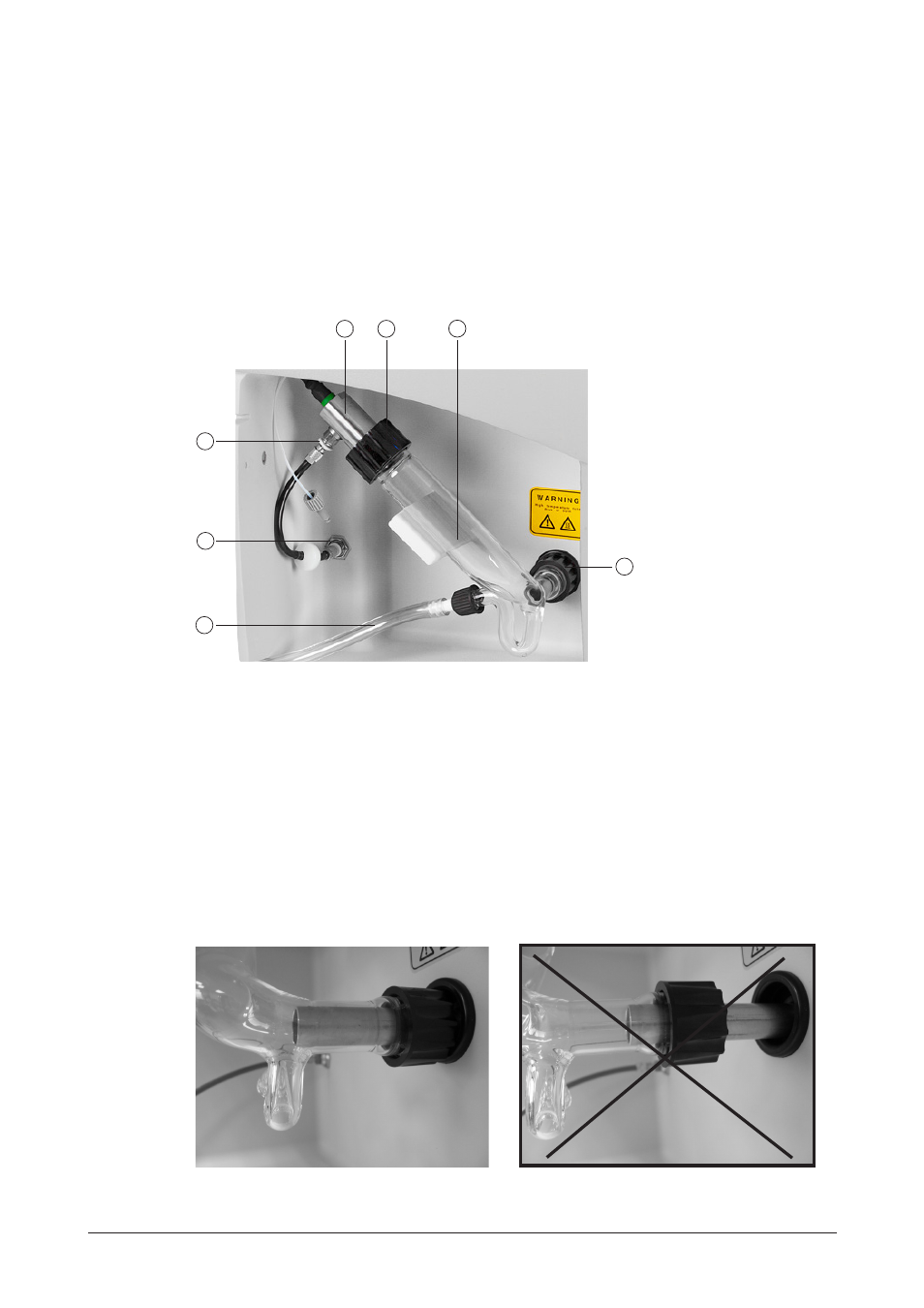

The installed nebulizer/glass chamber assembly is shown in Fig 5.10.
1
2
3
4 6
7
5
a Siphon overflow
b Gas one-way valve
c Gas inlet fitting
d Nebulizer e Nut
f Glass chamber
g Nut
Fig 5.10: Installing the nebulizer/glass chamber assembly
To install the the glass chamber:
Remove the Parafilm TM from all detector openings and from the nebulization cell.
Position the glass chamber as shown in Fig 5.10 and tighten the black nut at the bottom. The
glass chamber should be flush with the back wall as shown in Fig 5.11.
Fig 5.11Fixing the tip of the glass chamber
