C-650 Operation Manual, Version B 5 Putting into operation 21

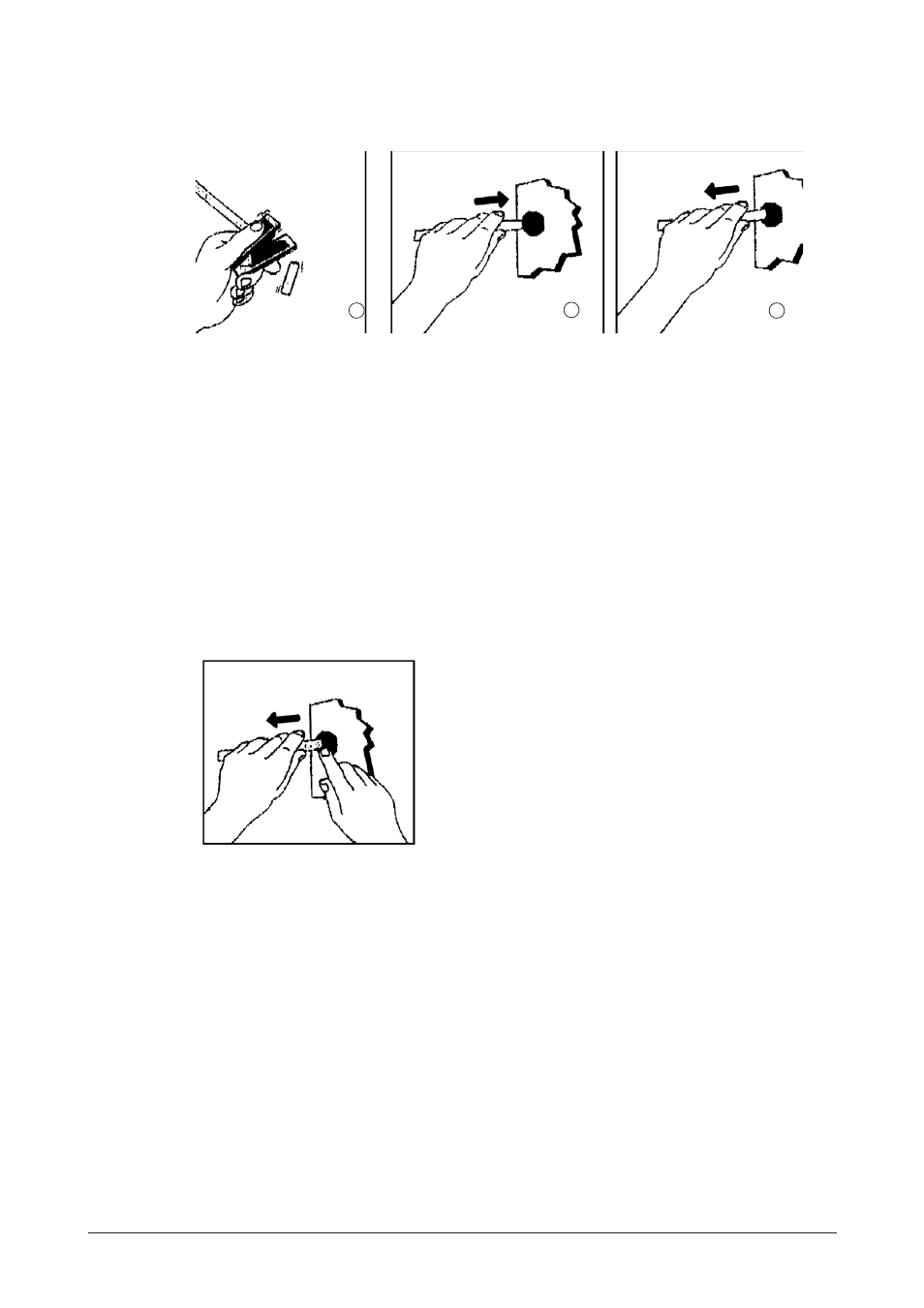

After Parafilm is removed from the detector gas inlet, the tubing should be cut and firmly inserted
into the fitting as shown below.
1 2 3
a Cutting the tube square
b Inserting the tube into the fitting until it bottoms c Pull the tube to check engagement of
the grab
Fig 5.8: Inserting the gas inlet tube
Two pieces of tubing are provided. If you are using the device with an external filter, connect the
gas source to the filter and then connect the filter to the back of the unit.
Make certain that no tube damage or inappropriate installation could allow a gas leak in labora-
tory.
To remove the gas inlet tube (if necessary); refer to Fig 5.9.
To remove the tube, disengage the grab ring teeth by a
simple manual pressure on the push sleeve and with-
draw the tube from the fitting.
Fig 5.9: Removing the glass inlet tube
