Fitting the interface unit
1 1
2
3

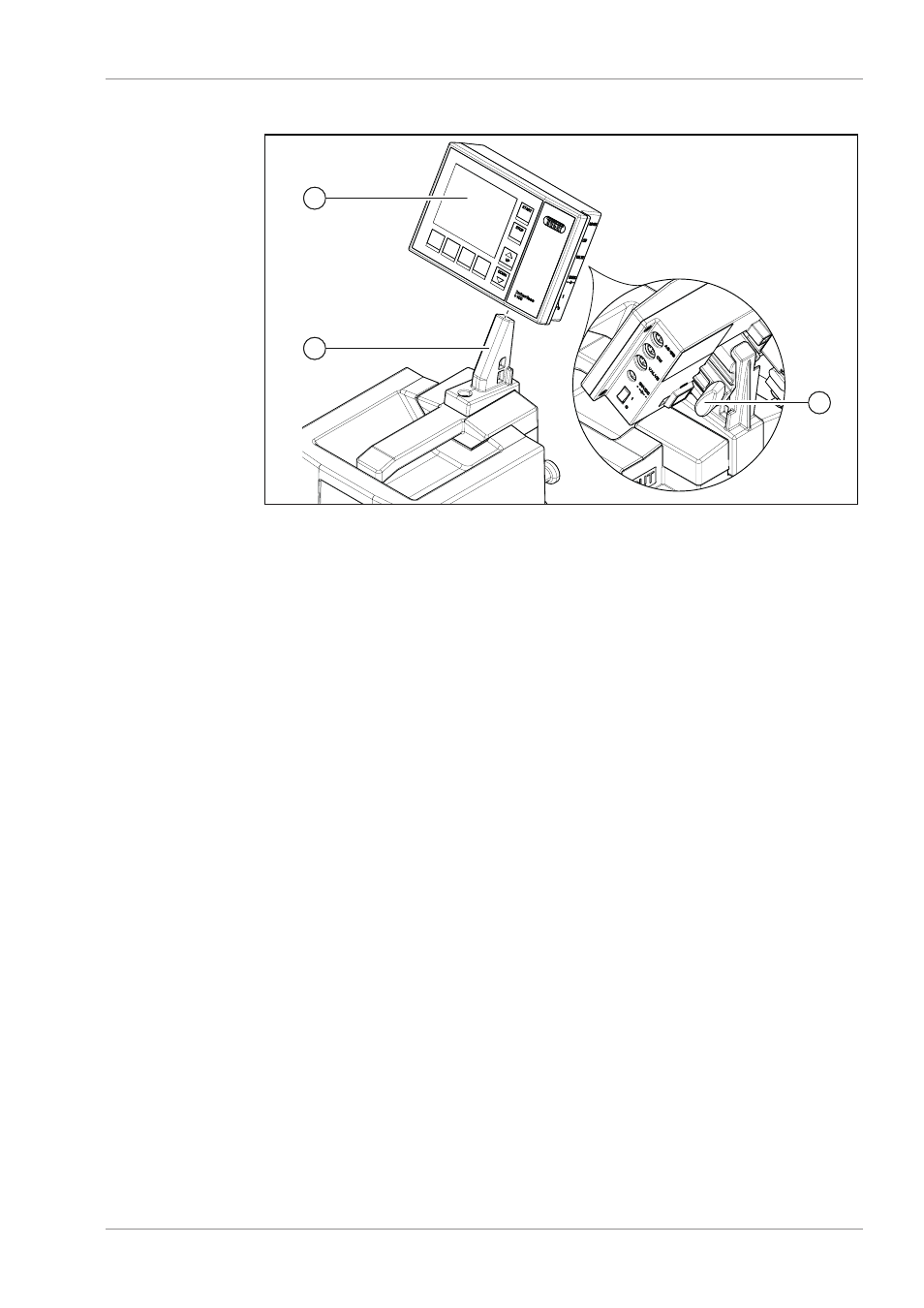

Fig. 8: Fitting the Interface I­100
1 Interface I­100 3 T­screw
2 Holder
u Fit the interface unit (1) onto the holder (2).
u Tighten the T­screw (3) on the back of the interface unit by turning it clockwise.
5.1.2 Mounting interface unit on laboratory stand
u Slide the interface unit onto the laboratory stand and fix it in place by tightening the
knob on the back.
