BÜCHI Labortechnik AG Product description | 3
Operation Manual Interface I­100 11/42
3.2.4 Screen
1 1
1 3
1 2
1 4
1 5
1 6
1 7
1 8

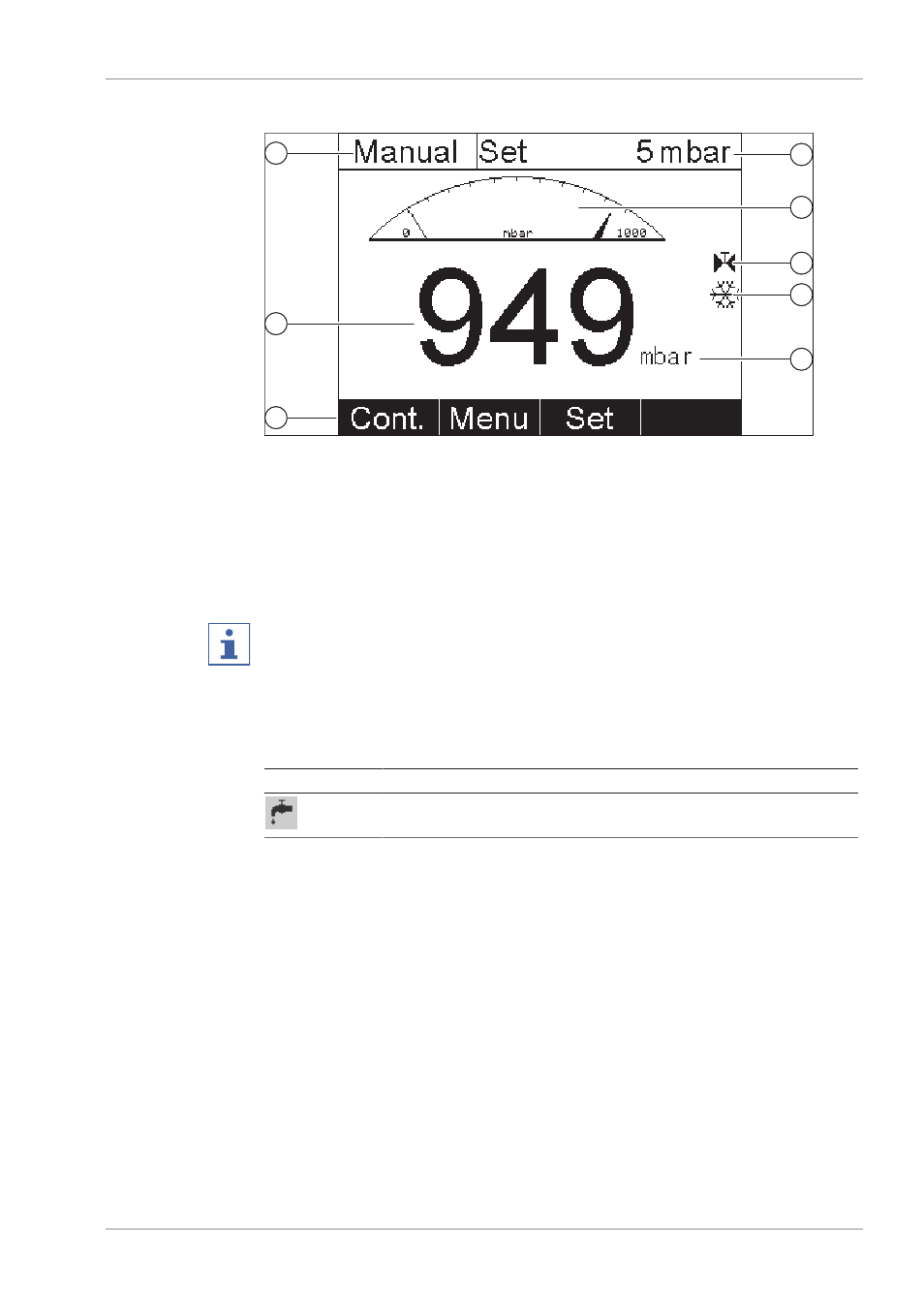

Fig. 4: Screen layout
1 Operating mode 4 Specified pressure in system
2 Actual pressure in system 5 Analogue pressure indication
3 Functions of the buttons below 6 Vacuum valve connected
7 Recirculating chiller connected
8 Unit of pressure
NOTE
Depending on application, the standard display may show different symbols.
When a component is active, the symbol concerned is shown in inverse type (white
symbol on black background).
Other symbols:
Symbol Meaning
Water coolant valve is connected
