3 | Product description BÜCHI Labortechnik AG
10/42 Operation Manual Interface I­100
3.2.2 Rear view
4
5
1 1
2
3

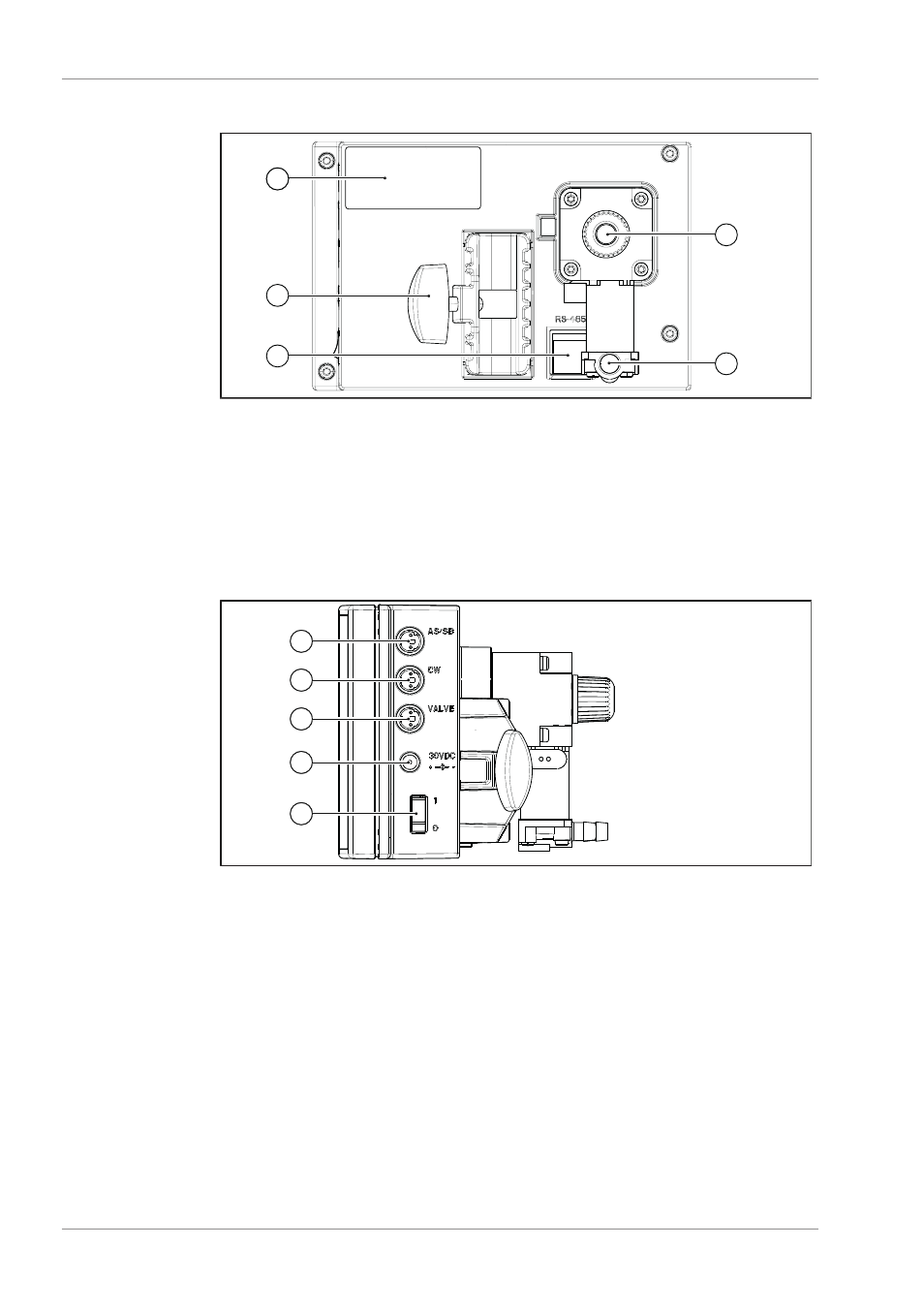

Fig. 2: Rear view of Interface I­100
1 Type plate 4 Vacuum connection
2 Mount 5 Venting valve with inert gas connec­
tion
3 RS485 connection (for recirculating
chiller)
3.2.3 Side view from right (connections)
1 1
1 2
1 3
1 4
1 5
Fig. 3: Connections on Interface I­100
1 Vacuum pump connection
2 Water coolant valve connection
3 Connection for valve unit or straight­way valve
4 Power supply connection
5 Master switch
