3 | Product description BÜCHI Labortechnik AG
12/42 Operation Manual Interface I­100
3.2.5 Typical application
The Interface I­100 is designed to be used in the following combination of devices:
Recirculating
Chiller F-100

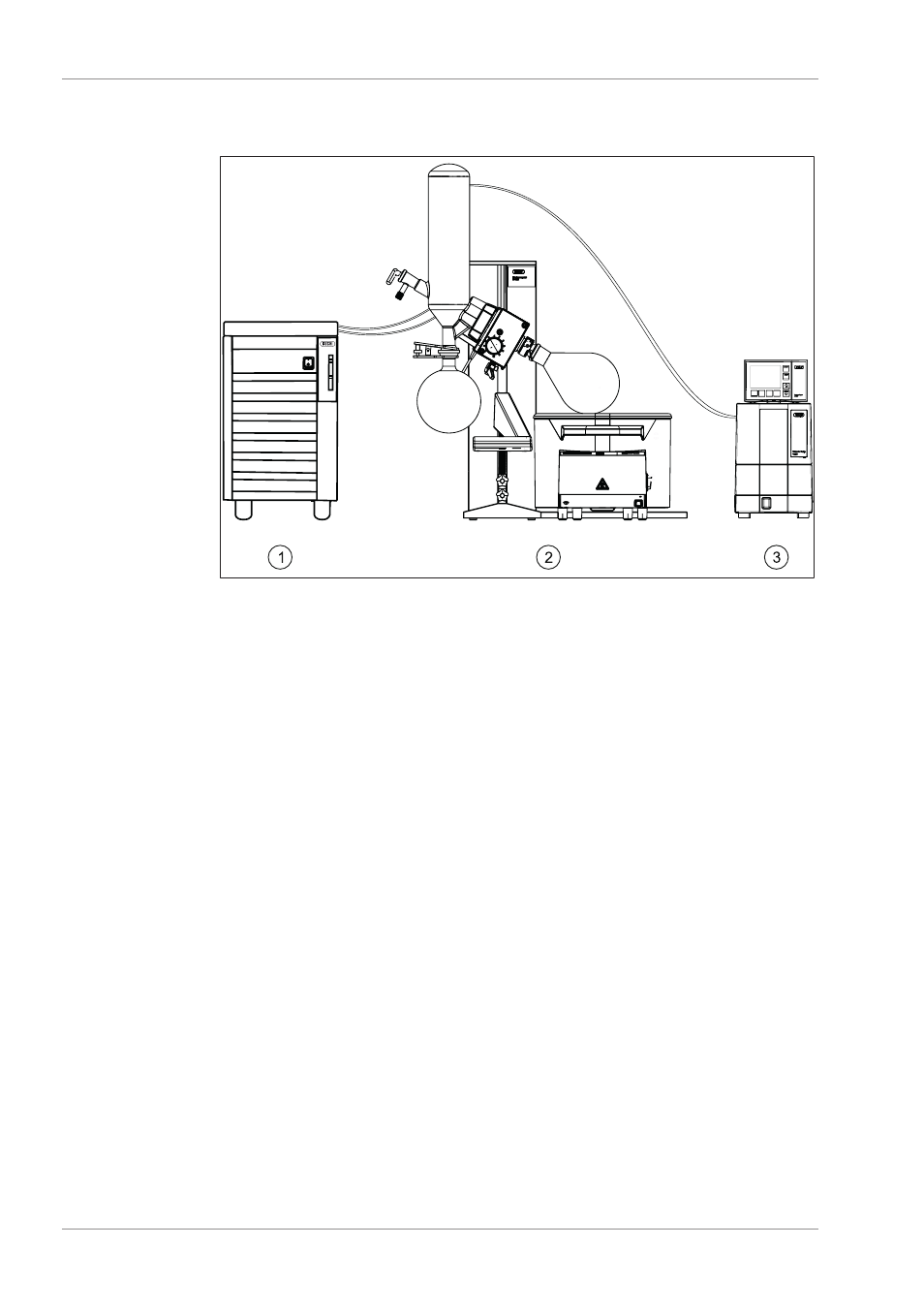

Fig. 5: Configuration of a complete system
1 Recirculating Chiller F­100/F­105
2 Rotavapor R­100
3 Vacuum Pump V­100 with Interface I­100
The F­100 and F­105 are sealed­system recirculating chillers. They are available in
various capacity ratings. The F­105 can be electronically controlled.
The Rotavapor R­100 is a rotary evaporator with the aid of which single­stage distilla­
tion can be carried out quickly under vacuum conditions without unduly stressing the
product.
The Vacuum Pump V­100 is designed for evacuating laboratory apparatus. It can be
operated either as a standalone device or combined with optional accessories such as
an interface unit and a secondary condenser to form a complete vacuum system.
