5 | Installation BÜCHI Labortechnik AG
16/42 Operation Manual Interface I­100
5 Installation
5.1 Assembly
The Interface I­100 can be mounted either on the Vacuum Pump V­100 or a laboratory
stand.
5.1.1 Fitting an interface unit to the Vacuum Pump V­100
Fitting the holder
1 1
2
3
4

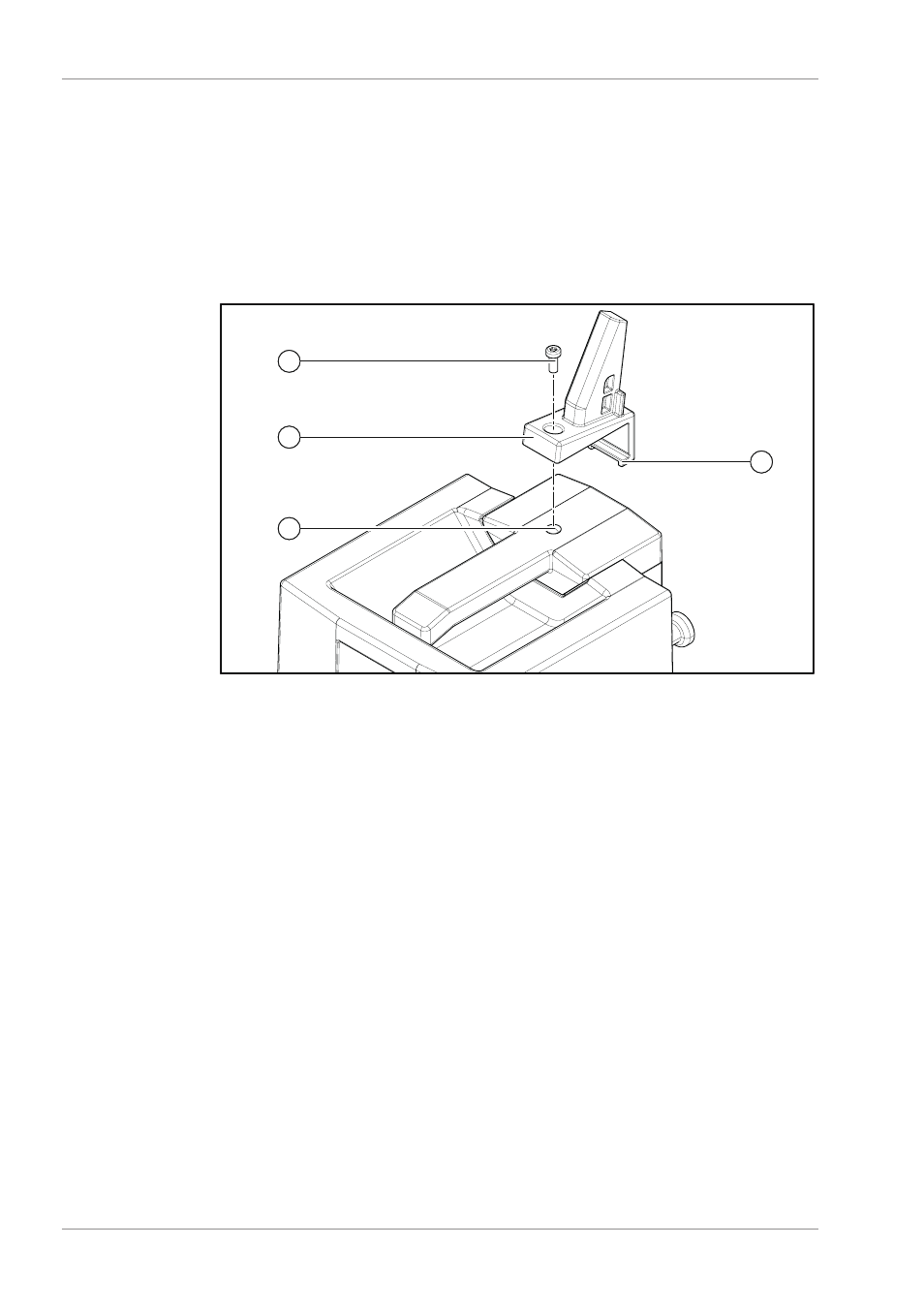

Fig. 7: Fitting the holder for the Interface I­100
1 Screw 3 Rubber plug (in thread for screw)
2 Holder for Interface I­100 4 Lower hinge of holder
The Torx key required for fitting the holder is included in the specifications supplied.
u Remove rubber plug (3).
u Fit the holder (2) onto the pump top cover from behind and secure it with the screw
(1).
u Make sure that the hinge (4) of the holder is engaged in the slot on the rear of the
V­100.
