C HAPTER 8 | WISP Mode Wireless Configuration
Link Status
– 93 –
L
INK
S
TATUS

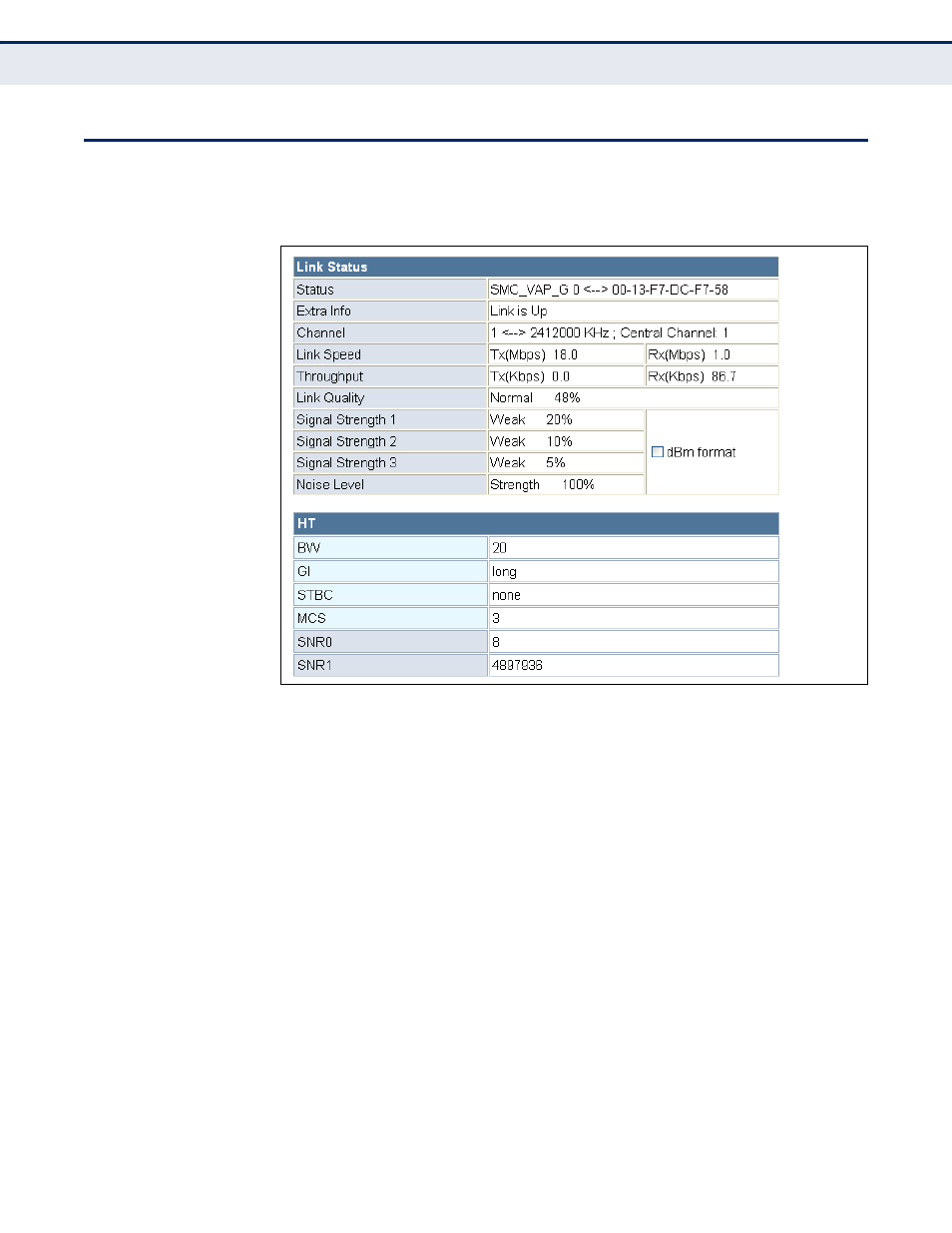

The Link Status page displays the current status of the connection to the
wireless network.
The following items are displayed on this page:
◆ Status — The service set identifier of the wireless network and the
MAC address of the connected AP.
◆ Extra Info — Indicates if the link is active.
◆ Channel — Specifies the current channel in use.
◆ Link Speed — The current transmitting and receiving rates.
◆ Throughput — The transmitting and receiving throughputs.
◆ Link Quality — The strength of the receive signal compared to other
interference and noise.
◆ Signal Strength 1~3 — The current receive signal strength indication.
◆ Noise Level — A value that indicates the amount of radio noise on the
current channel.
◆ dBm Format — Displays the signal strength and noise values in dBm.
