Page 114
C
HAPTER
10
| Administration Settings
Statistics
– 114 –
S
TATISTICS
The 11n Router Traffic Statistics - Interfaces window displays received and
transmitted packet statistics for all interfaces on the 11n Router.

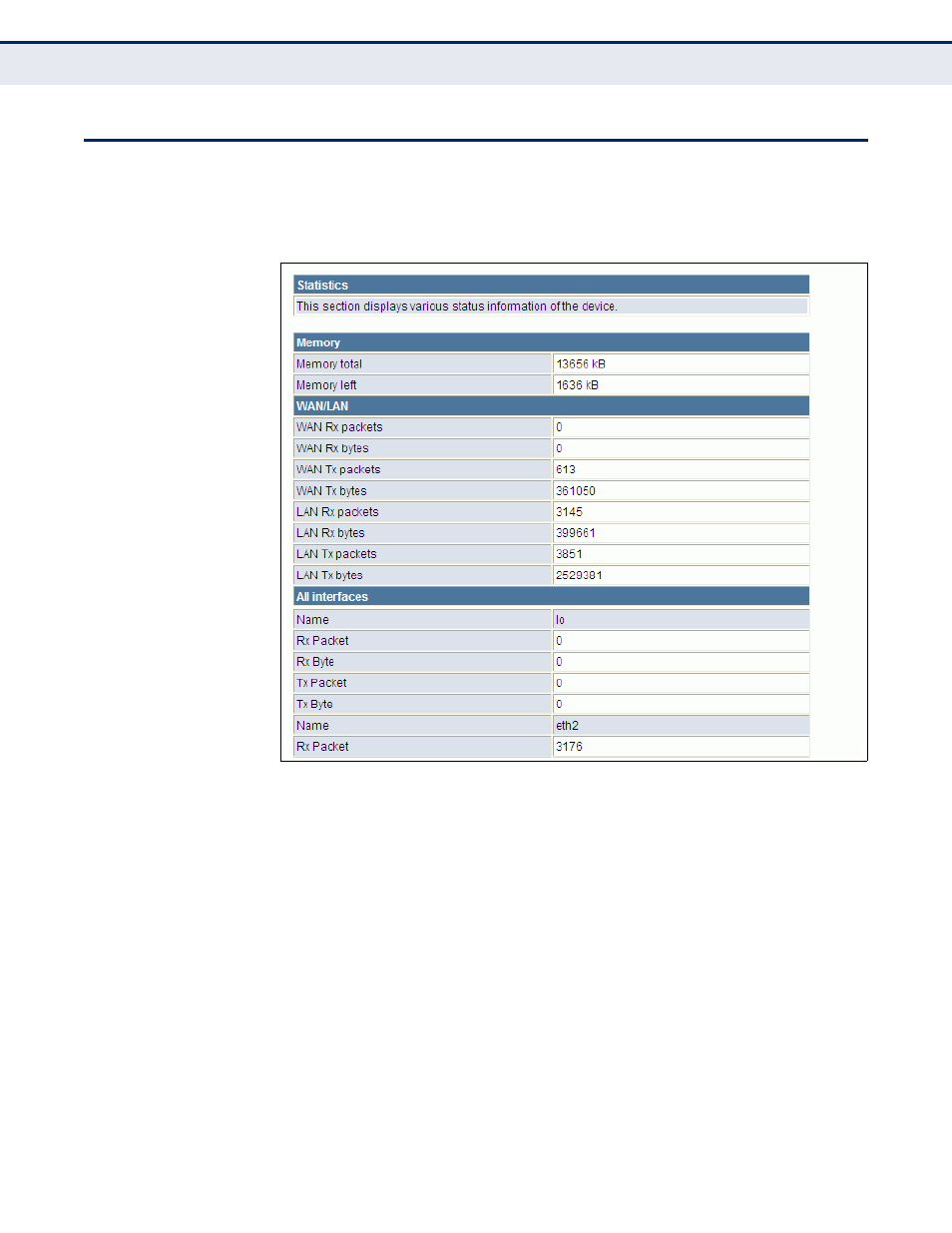

Figure 70: Statistics
The following items are displayed on this page:
◆
Memory total — The total memory of this 11n Router.
◆
Memory left — The available memory of this 11n Router.
◆
WAN/LAN/All Interfaces — Displays the interface on which traffic is
being monitored.
◆
Rx packets — Displays the total number of packets received by the
specified interface.
◆
Rx bytes — Displays the total number of bytes transmitted by the
specified interface.
◆
Tx packets — Displays the total number of packets transmitted by the
specified interfaces.
