C HAPTER 2 | Network Planning
Wireless Client
– 26 –
W IRELESS C LIENT
The 11n Router can operate as a wireless client on one SSID interface,
which enables a connection to another Wi-Fi network, such as a Wireless
Internet Service Provider (WISP). When the wireless client (or WISP mode)
option is enabled, the client SSID interface functions as an external
gateway WAN port, and the other SSID interface and LAN ports all function
as the local network within the same IP subnet.

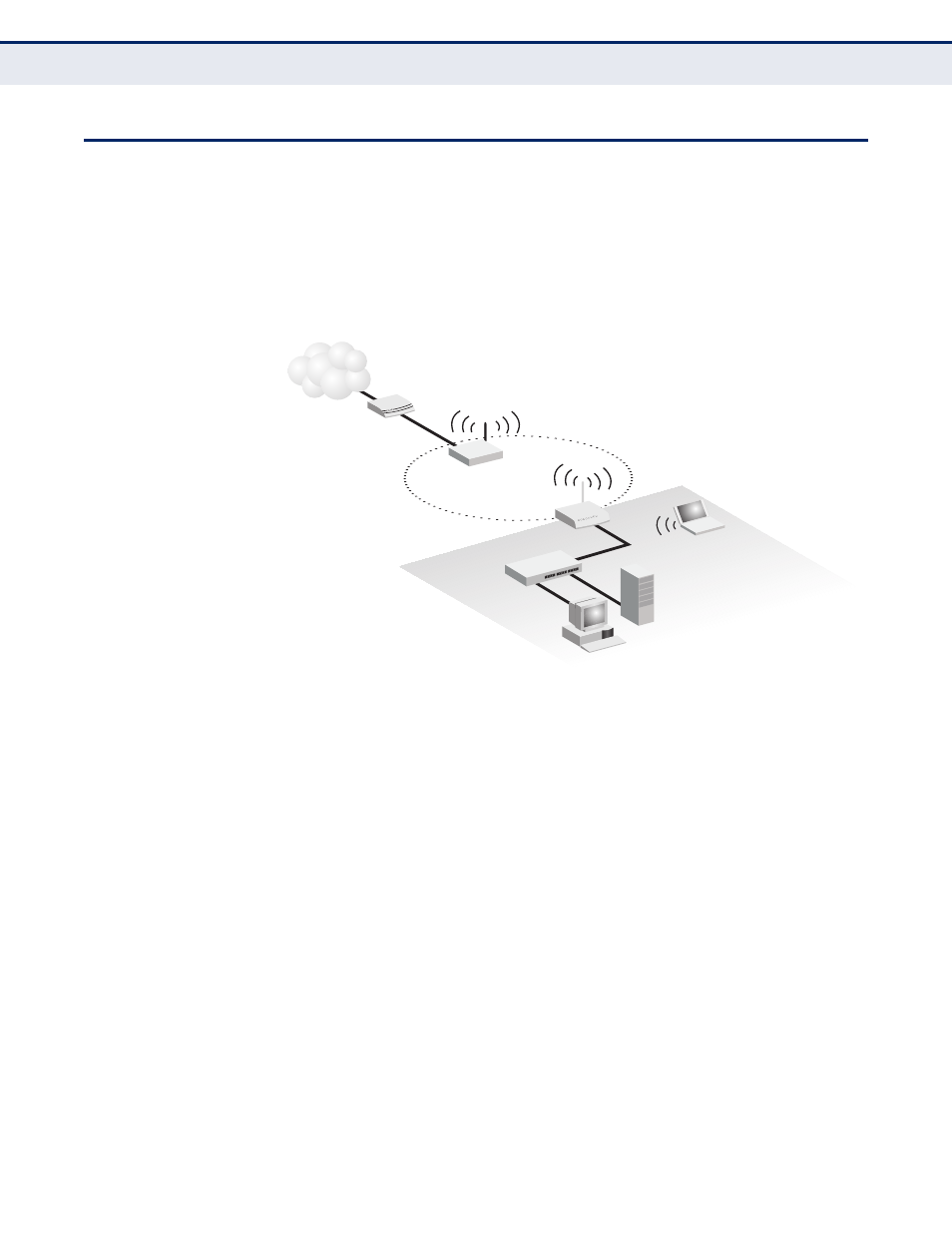

Figure 8: Operating as a Wireless Client
Cable/DSL
Modem
Internet
Service
Provider
Server
(IP: 192.168.2.x)
Desktop PC
(IP: 192.168.2.x)
Notebook PC
(IP: 192.168.2.x)
Wireless
Client W
AN
(IP from
external network)
LAN Port
(IP: 192.168.2.x)
LAN Switch
Access Point
(External SSID)
