10/100base-tx pin assignments, Straight-through wiring, Table 5: 10/100base-tx mdi and mdi-x port pinouts – ALFA NETWORK AIP-W505 User Manual

Page 122

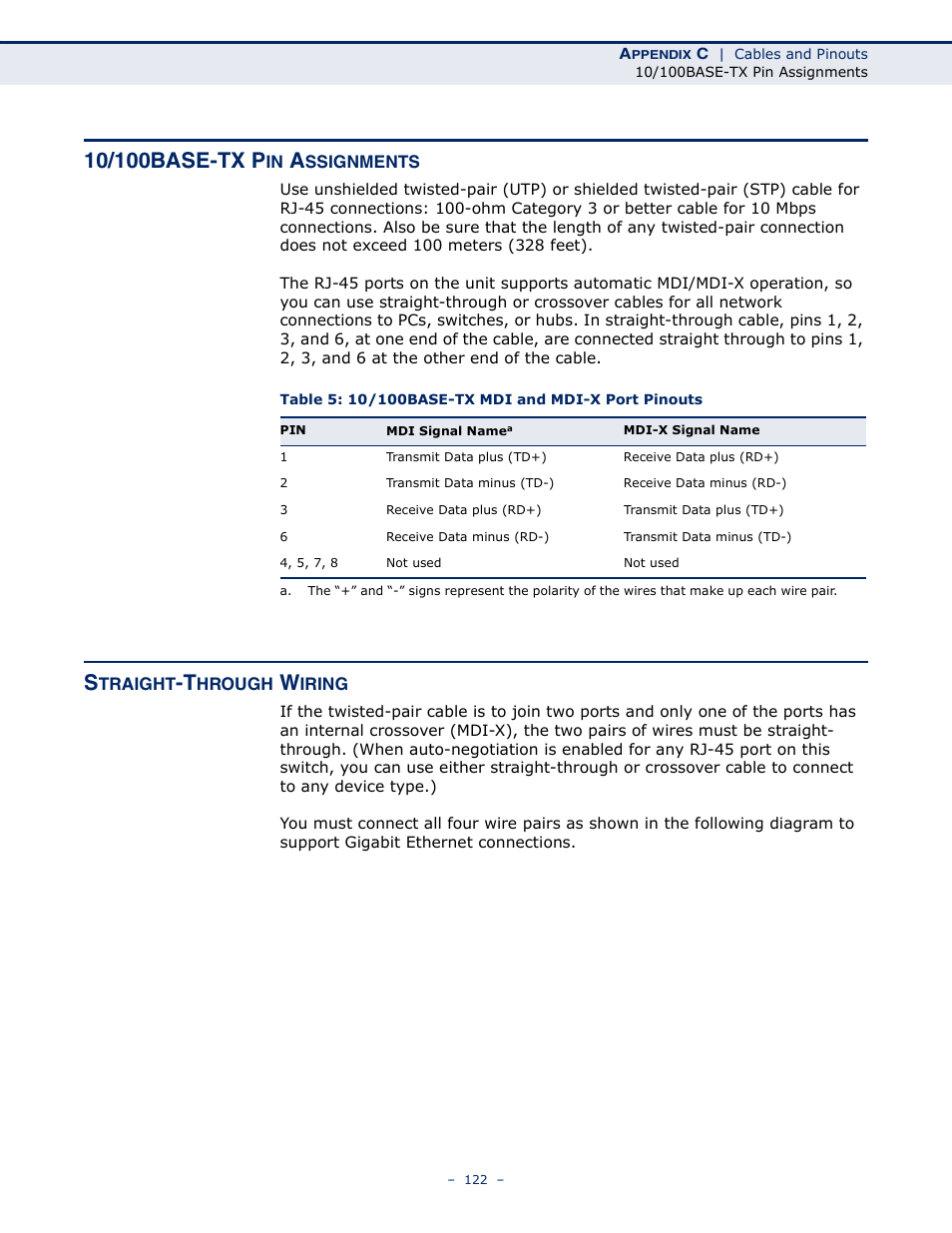

10/100base-tx pin assignments, Straight-through wiring, Table 5: 10/100base-tx mdi and mdi-x port pinouts | ALFA NETWORK AIP-W505 User Manual | Page 122 / 135 10/100base-tx pin assignments, Straight-through wiring, Table 5: 10/100base-tx mdi and mdi-x port pinouts | ALFA NETWORK AIP-W505 User Manual | Page 122 / 135
