Precaution:
The following connections should be made by qualified service personnel or system installers in
accordance with NEC 725-51,

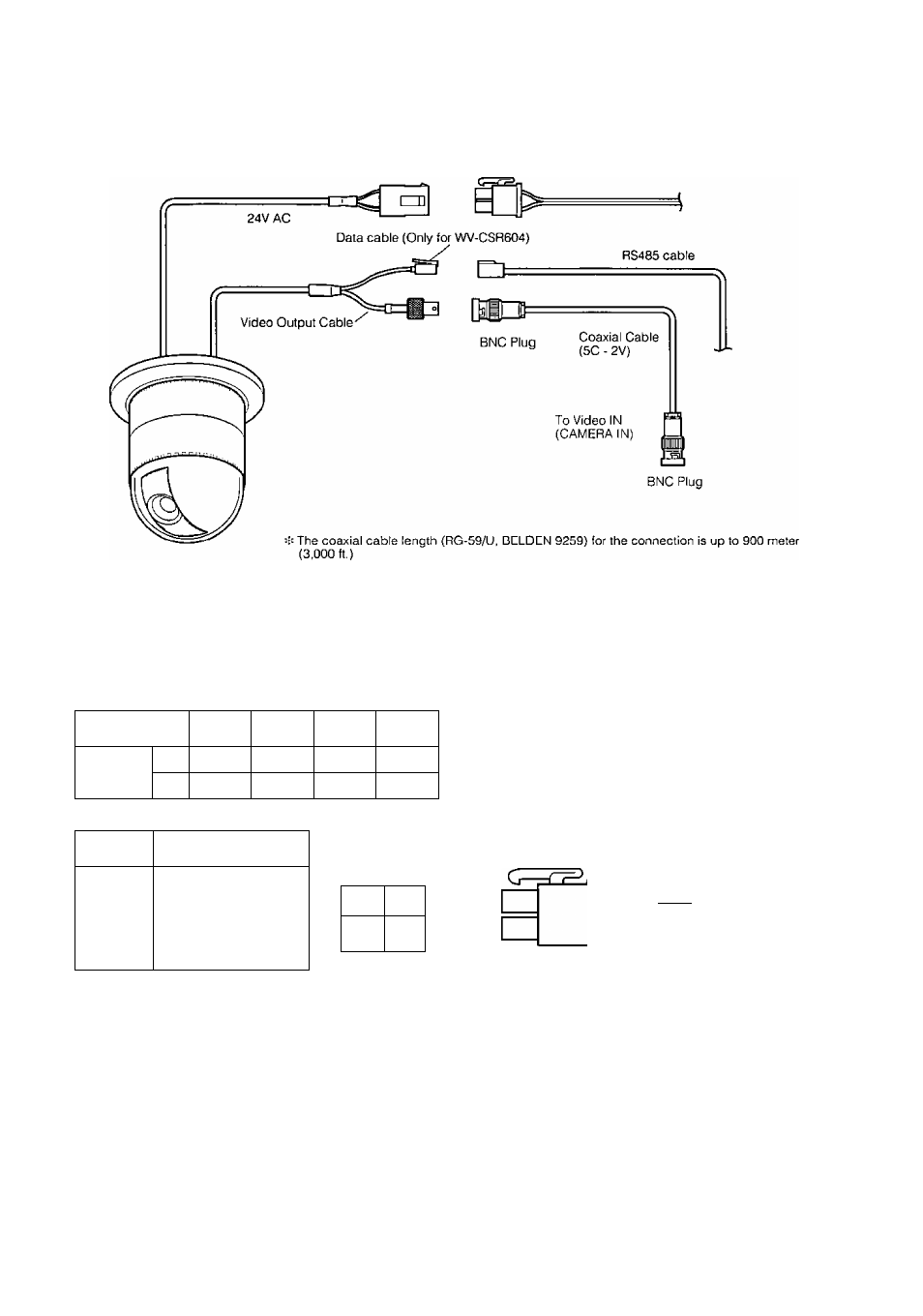

CONNECTIONS
Note: When powered up, the unit performs a self-check (including ene panning, tilting, zeeming and focusing
operation).
• Power supply connection
Recommended wire gauge sizes for 24V AC line.
Copper wire size
(AWG) #24
(0.22mm0
#22
(0.33mm*)
#20
(0.52mm*)
#18
(0.83mm*)
Length
of Cable
(Approx.)
(m) 20 30 45 75
(ft) 65 100 160 260
Accessory Connector Information
Pin No. Power Source
1 : 24 V AC LIVE
2 : 24 VAC NEUTRAL
3 : Ground
4 ; Not use
4 3
2 1
How to assembie the cable with the accessory
connector
Strip back the cable jacket approx. 3 mm (0.1 inch)
and separate the individual conductors.
Approx.
3 mm (0.1 inch)
Up
Contact
Wire
^ Insert
—\J Insert the wire until A position
’ and clamp the contacts.
Prepare the individual conductors for clamping.
Use MOLEX band tool part number 57027-5000
(for UL-Style Cable UL1015) or 57026-5000 (for UL-
Style UL-1007) for clamping the contacts.
After clamping the centacts, push them inte the
proper holes in the accessory connector of this
camera until they snap in place.
Up
Trnrt
Wire
Contact
Г-
CAUTIONS
1. Shrinking the cable-entry seal is a one-time
procedure. Do not shrink the cable-entry
seal until it has been ascertained that the
unit is functioning.
CONNECT THIS TO 24V AC CLASS 2
POWER SUPPLY ONLY.
2. To prevent fire or electric shock hazard, the
UL listed wire (VW-1, style 1007) should be
used for the cable for 24V AC Input
Terminals.
