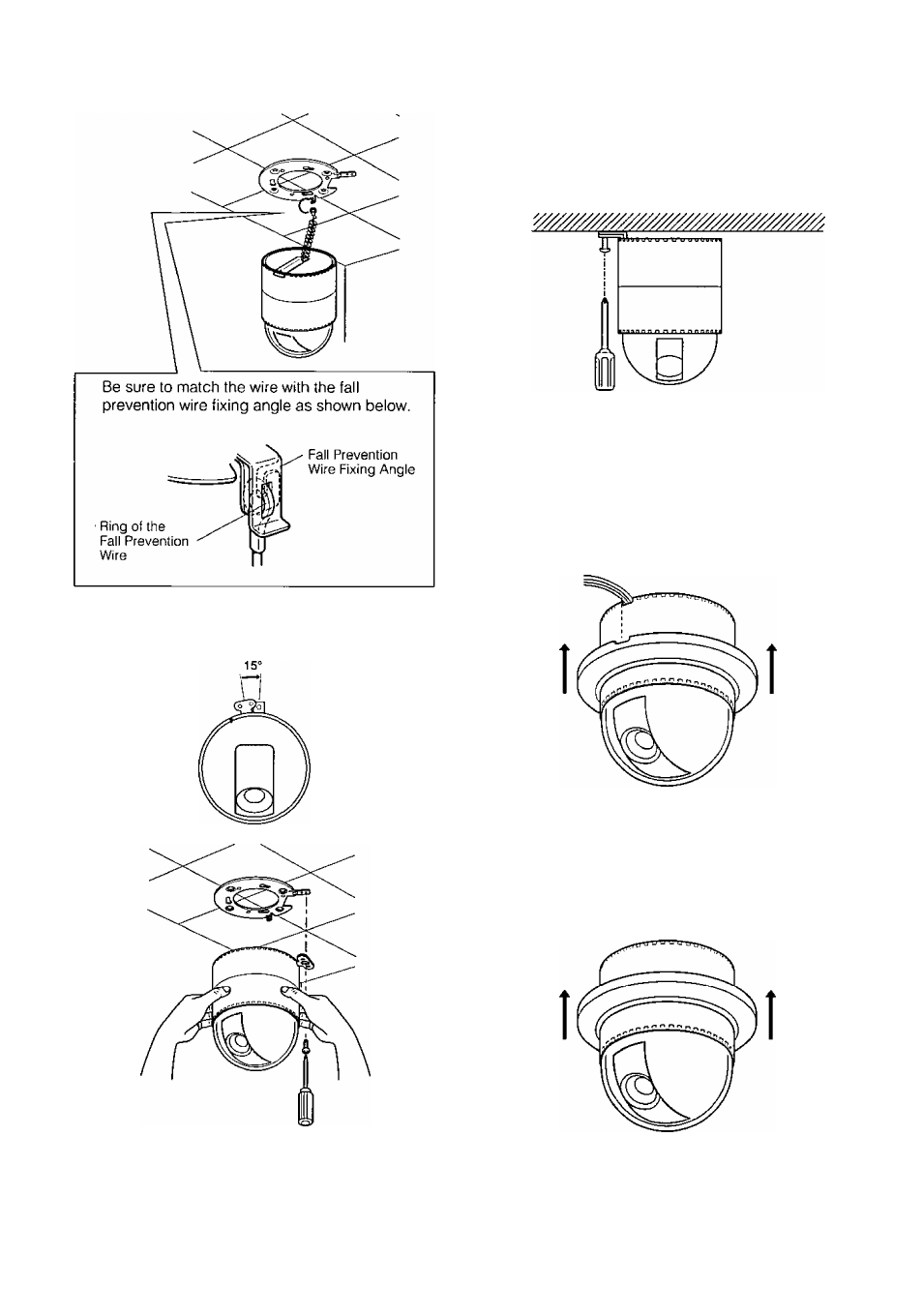

Hook the Fall prevention wire on the camera
mounting angle.
Mount the camera on the camera mounting
angle and rotate the camera clockwise.
2.
Follow the instructions given here to
ensure that the camera and camera
mounting angle are installed safely.
3. When removing the camera from the
camera mounting angle, loosen and press
up the camera fixing screw (M3) by using
a screwdriver.
7. Fix the decoration cover to the camera mount
ing angle.
a. Sideway cable exit
Pass the cables through the cutout made in
the diecast case and decoration cover (refer to
item a, INSTALLATION),
6, Tighten the fixing screw M3 (provided).
Notes ;
1, Tighten the camera fixing screw with a
screwdriver.
b. Top cable exit
Push the decoration cover against the camera
mounting angle.
- 3 1 -
