Time Code

The SMPTE time code signal recorded onto the tape by using a time code generator/reader permits absolute addressing (the

identification of storage iocations by actual addresses). The time code signal will be recorded on audio CH2 track.

Set the selectors.

CH2 METER Selector

AUDIO CH2

(ON-SCREEN)

“CH2"

(AG-7350

only)

(Refer to page

“TIME CODE”

(Refer to pages 38 to 40.)

When the time code signal has

been entered. (AG-7350 only)

■ The AUDIO CH2 LEVEL meter indicates near 0.
■ Time code signals are recorded during recording and dub

bing (including audio dubbing on channel 2).

Refer to the operating instructions of the SMPTE time code

generator/reader you are using for details.

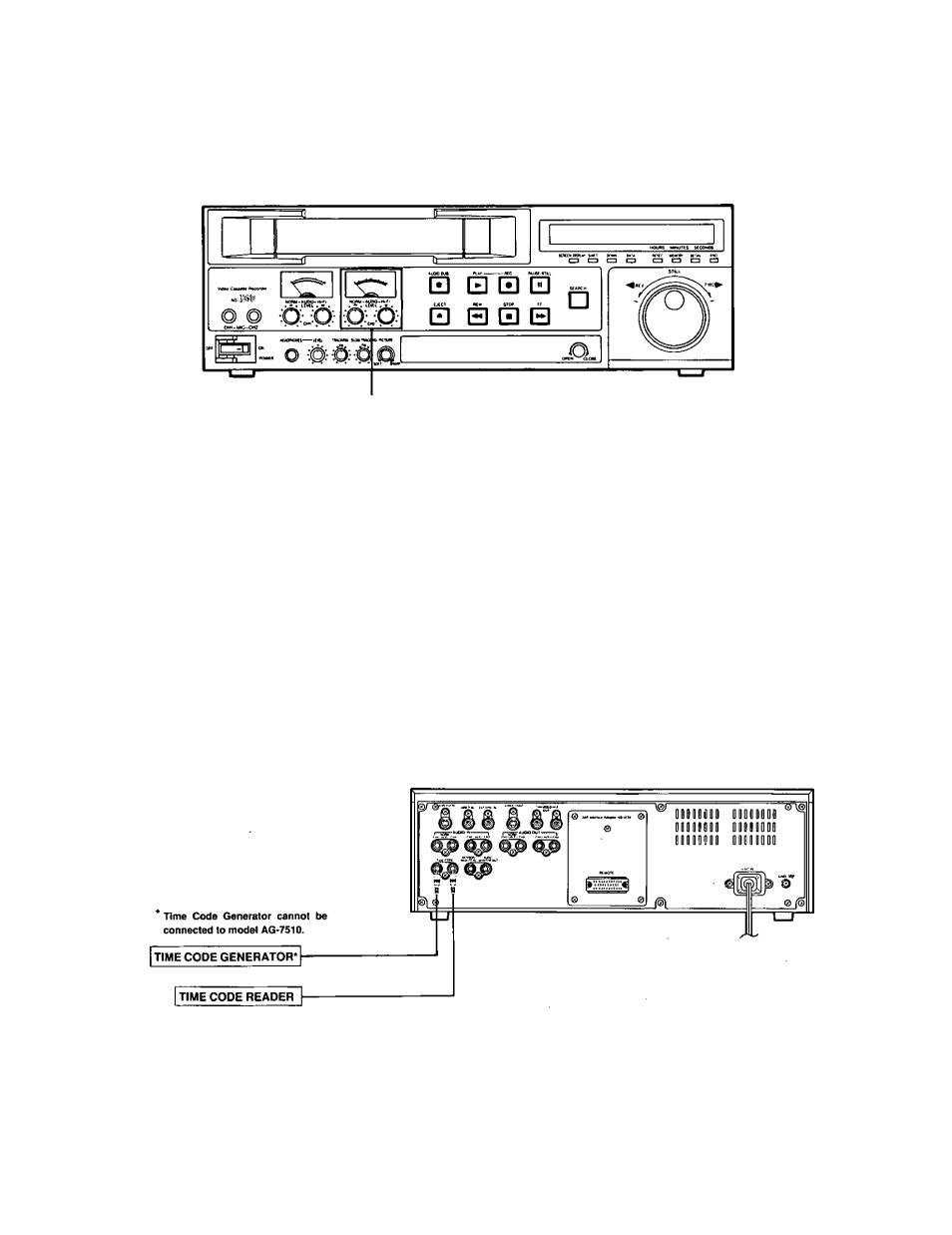

Connections

■■'fm

■D

Note

The unit’s tape counter does not count the time code signals, but the control (CTL) signals recorded onto the tape.
Connect the time code generator/reader to the unit to read the addresses of the time code signal.
