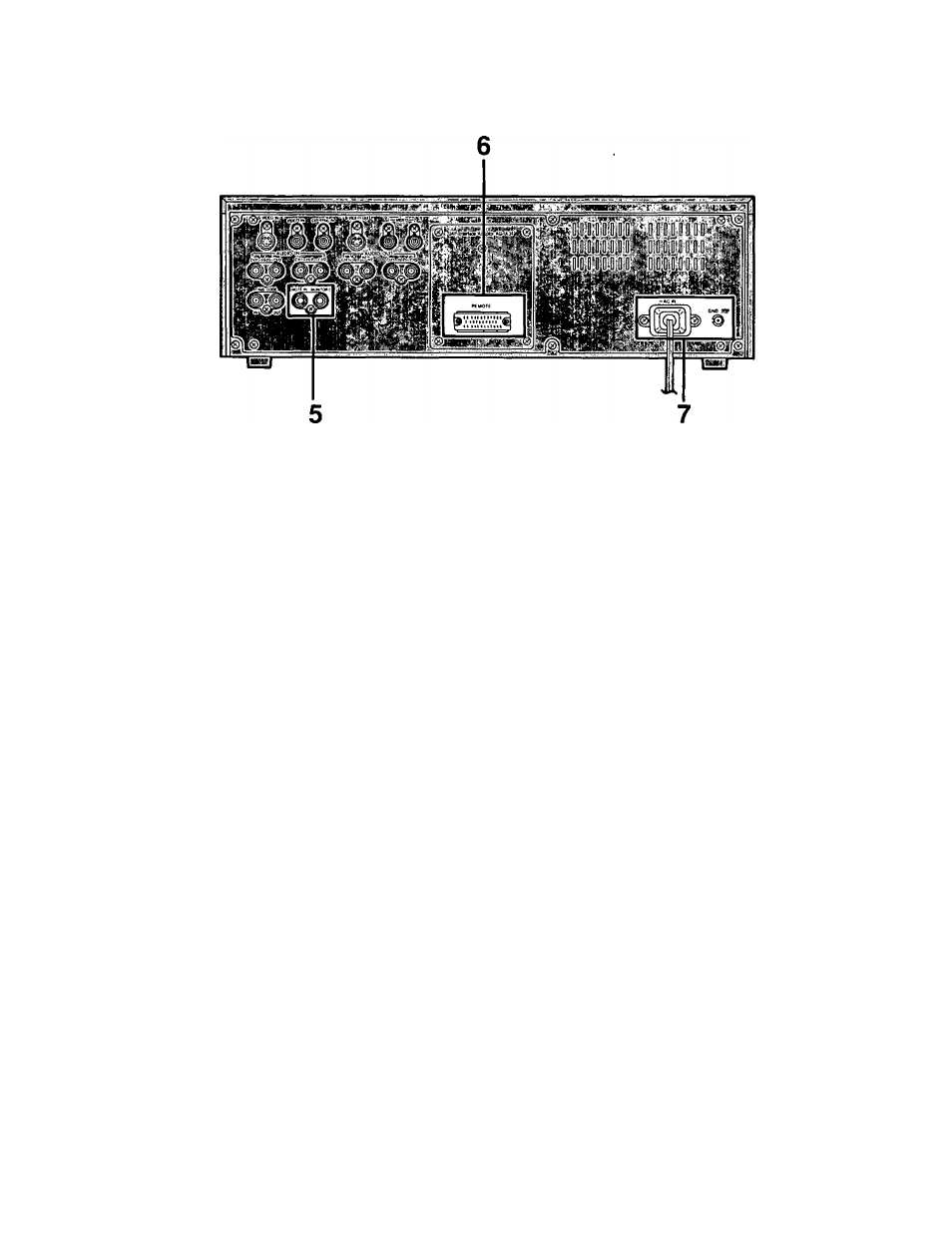

5 Sensor remote recording/Monitor output area
SENSOR REMOTE connector
(AG-7350 only)
.. Sensor remote signal recording connector.
AUDIO MONITOR OUT connector
................ Audio monitor signal output connector.
(D
Remote signal area
REMOTE connector..................
Connector for remote search controller (AG-A600).
Power supply circuit area
AC IN socket
....................................................... Connected to AC 120-240V power outlet.
GND terminal
..................................................... When connecting this unit to any other component, make
absolutely sure that it is properly grounded by connecting this
terminal.
10
