Setting the Switches
2 4

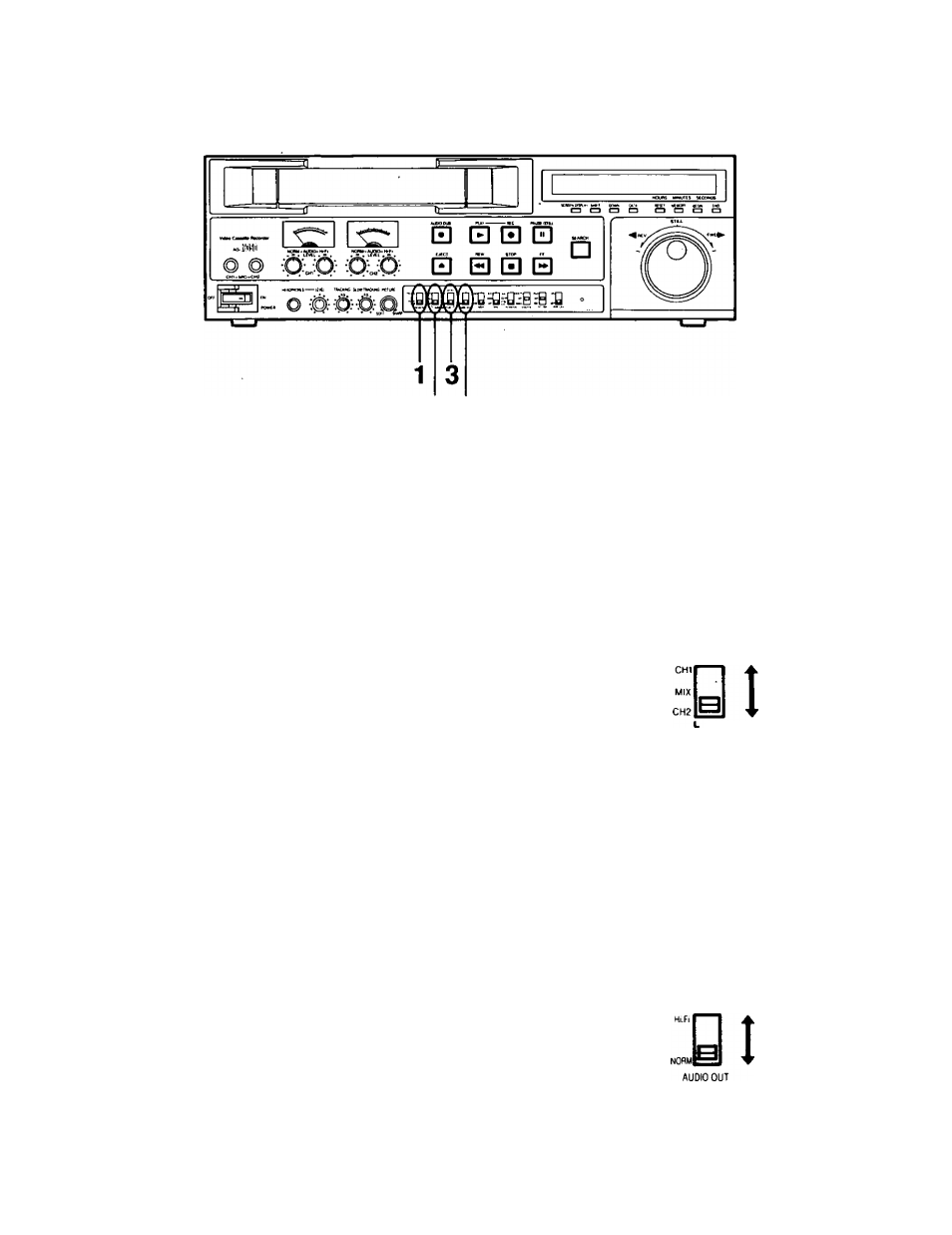

(The above illustration is AG-7350.)
CH2 METER Selector (AG-7350 only)
Used to adjust the audio (CH2) input level during recording. Set
this selector to "AUDIO CH2" before making adjustment for the
recording level of audio channel 2.
TRACKING
AUDIO
CH2
M
CH2 METER
1
■
t/i
O)
AUDIO MONITOR Selector
o
CO
Used to select the audio channel which is to be heard on the
TV monitor or headphones through the HEADPHONE Jack on
the front panel or the AUDIO MONITOR OUT connector on the
rear panel of the unit.
cm:
To monitor the audio signal from channel 1.
To monitor the mixed audio signals from channels
^ and 2 through the AUDIO MONITOR OUT
connector or HEADPHONES Jack. When using
headphones, audio channels 1 (left) and 2 (right)
can be monitored separately.
To monitor the audio signal channel 2.
S
MIX:
AUDIO MONITOR
CH2:
METER Selector
(No LEVEL meter for AG-7150.)
Used to display the recording level of Hi-Fi audio or normal
audio on the LEVEL meter and select the audio output signal
from the HEADPHONES Jack on the front panel or the AUDIO
MONITOR OUT connector on the rear panel.
Hi-Fi:
Selects Hi-Fi audio.
NORM:
Selects normal audio.
H
i
-F
i
NORM
I
AUDIO MONITOR
AUDIO OUT Selector
Used to select the audio output signal from the NORM/Hi-Fi
audio output connectors on the rear panel.
Hi-Fi:
Discriminates between Hi-Fi and normal audio
automatically. When there is no Hi-Fi audio output
signal, normal audio will be automatically outputted.
NORM:
Normal audio is outputted.
11
