Replacing Consumable

Open

the

optional

"Roller

Exchange Kit (KV-SS009)", and

take out the paper feed roller

module.
For supplies and accessories:
Call 1-800-346-4768 (U. S. A.

only) or your dealer.

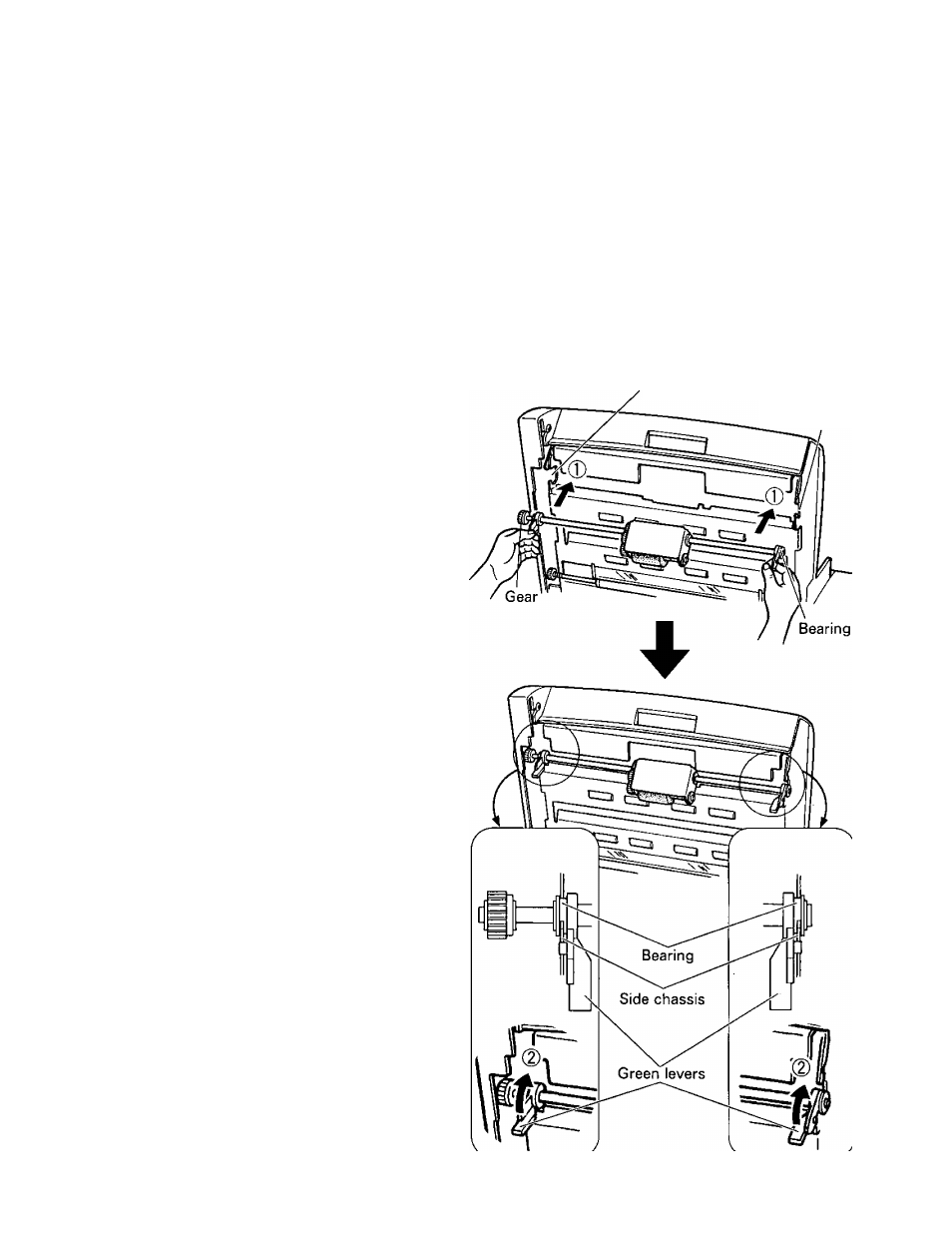

Install the new paper feed roller
module with the gear on the left

side and the bearings into the
guide grooves of the side chassis

in the scanner. (©)

Then push up the green levers on

both ends until they click into
place. ((D)

•

Match

the

paper

feed

roller

module

with

the

bearings

and

guide

grooves,

and then attach it.

Guide groove

Guide

groove
