Cleaning the Unit

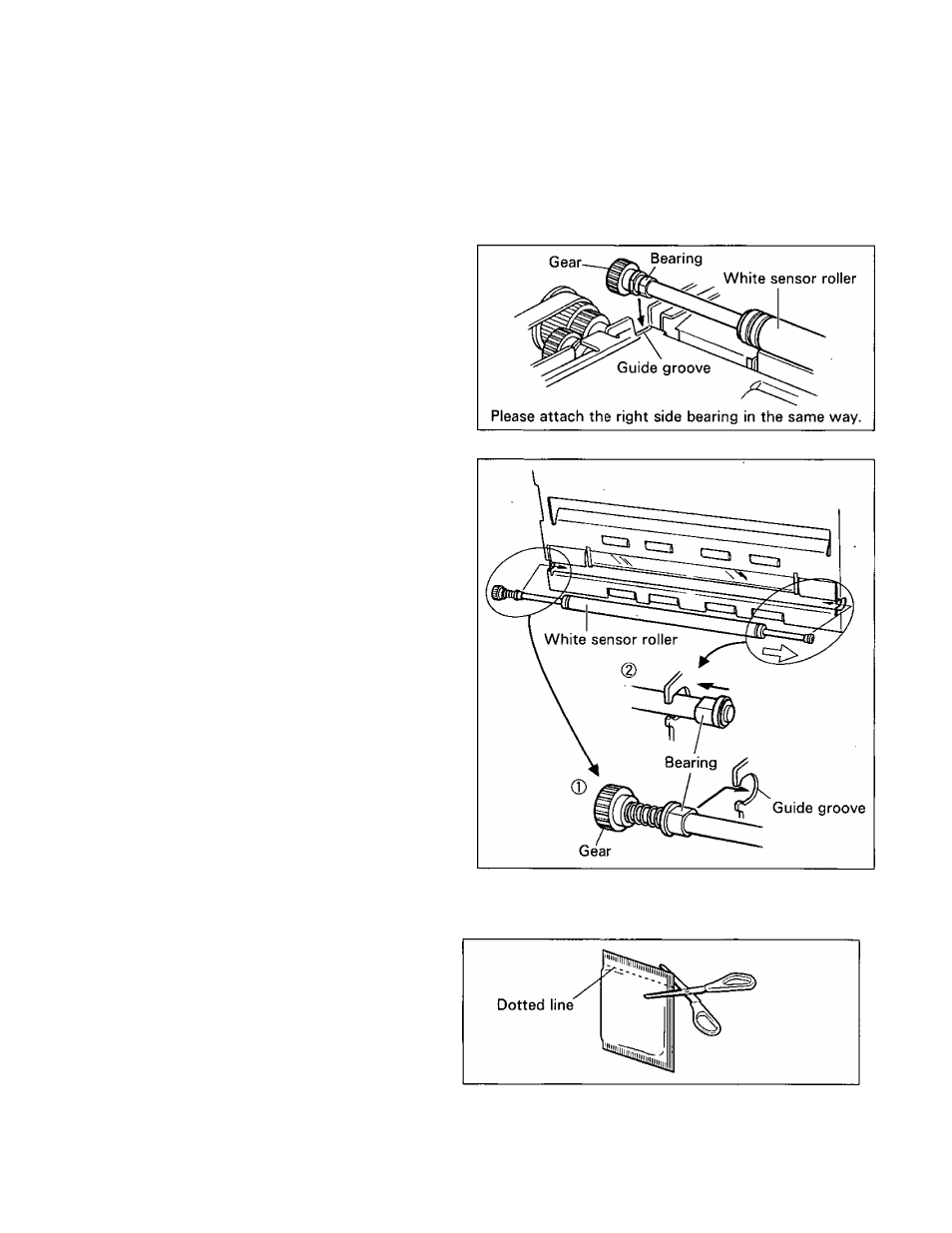

Re-attachment of the white sensor roller
When the white sensor roller is removed while cleaning the inside of the scanner, re­
attach it as shown below.
Lower white sensor roller:
Attach the roller by placing the gear
side to the left side of the scanner
and inserting both side's bearings
into the guide grooves.
• After attaching, press down on top of
the white sensor roller with your finger
to confirm if it moves or not.
Upper white sensor roller:
©Attach the roller by inserting the
bearing of the gear side of the
roller into the guide groove on the
left side of the scanner.
• Match the flat side of the bearing with
the flat side of the guide groove.
©Hold the shaft on the right side of
the white sensor roller, push the
tip of the gear, and slide the white
sensor roller in the direction of the
arrow
Then attach the roller by inserting
the bearing of the non-gear side of
the roller into the guide groove on
the right side of the scanner.
• Match the flat side of the bearing with
the flat side of the guide groove.
IRoller cleaning paper
Open the bag on the dotted line and
take out the roller cleaning paper.
• If the bag is left open for a long period
of time, the alcohol will evaporate.
Please use the roller cleaning paper
immediately after opening the bag.
^*The roller cleaning paper (Model No. KV-SS03) is available from the dealer where
you purchased your scanner.
For supplies and accessories: Call 1-800-346-4768 (U. S. A. only) or your dealer.
