Cleaning the Unit
3
Use the accessory roller cleaning
paper (KV-SS03) to remove the
dirt from the surfaces of all rollers.
•
When wiping off the dirt, hold the
rollers
to
prevent
them
from
rotating.
Wipe
the
rollers
all
the
way
around
from
one
end
to
the
other
in
the
directions of the arrows shown on the
diagram to the right.
•
Perform the retard roller cleaning only
in the left direction. If cleaned in the
right direction, the roller may slip out
of the proper position.
•
When cleaning the rollers in the back
of
the
bottom
scanning
section
glass
(rollers of part ®), do not touch the
tip
of
the
plastic
pointer
(black)
in
the back of the unit.
Set the paper path selector as shown
below. When the tip of the pointer is
raisedii the tip may cause an-injury^
The rollers to be cleaned are shaded.
Wipe in the direction of the arrows.
Pointer

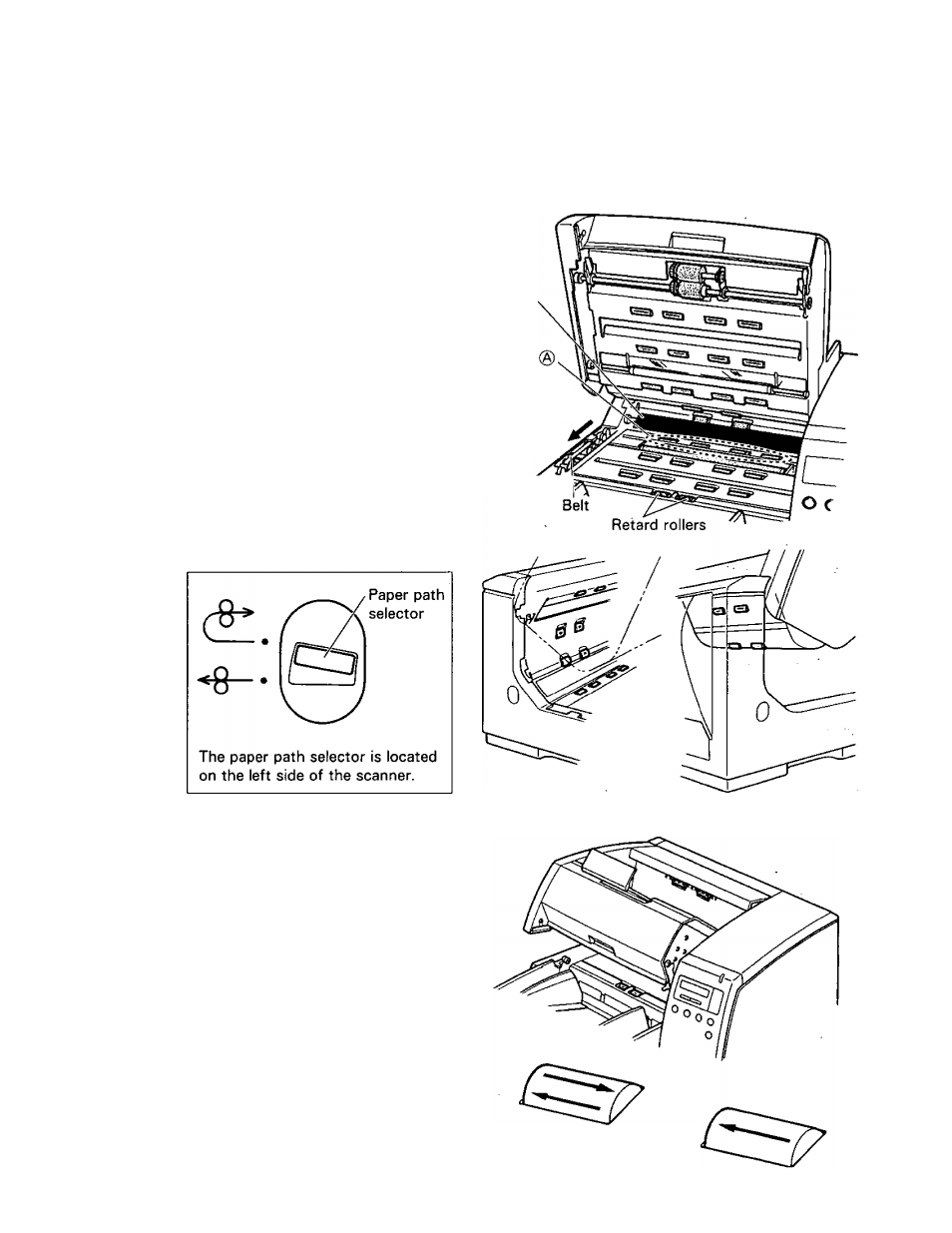

For roller cleaning,
pull the belt in the
direction of the
arrow to rotate
the rollers.
^ i\
Left side view
Other rollers
Retard rollers
