Loading Documents
6

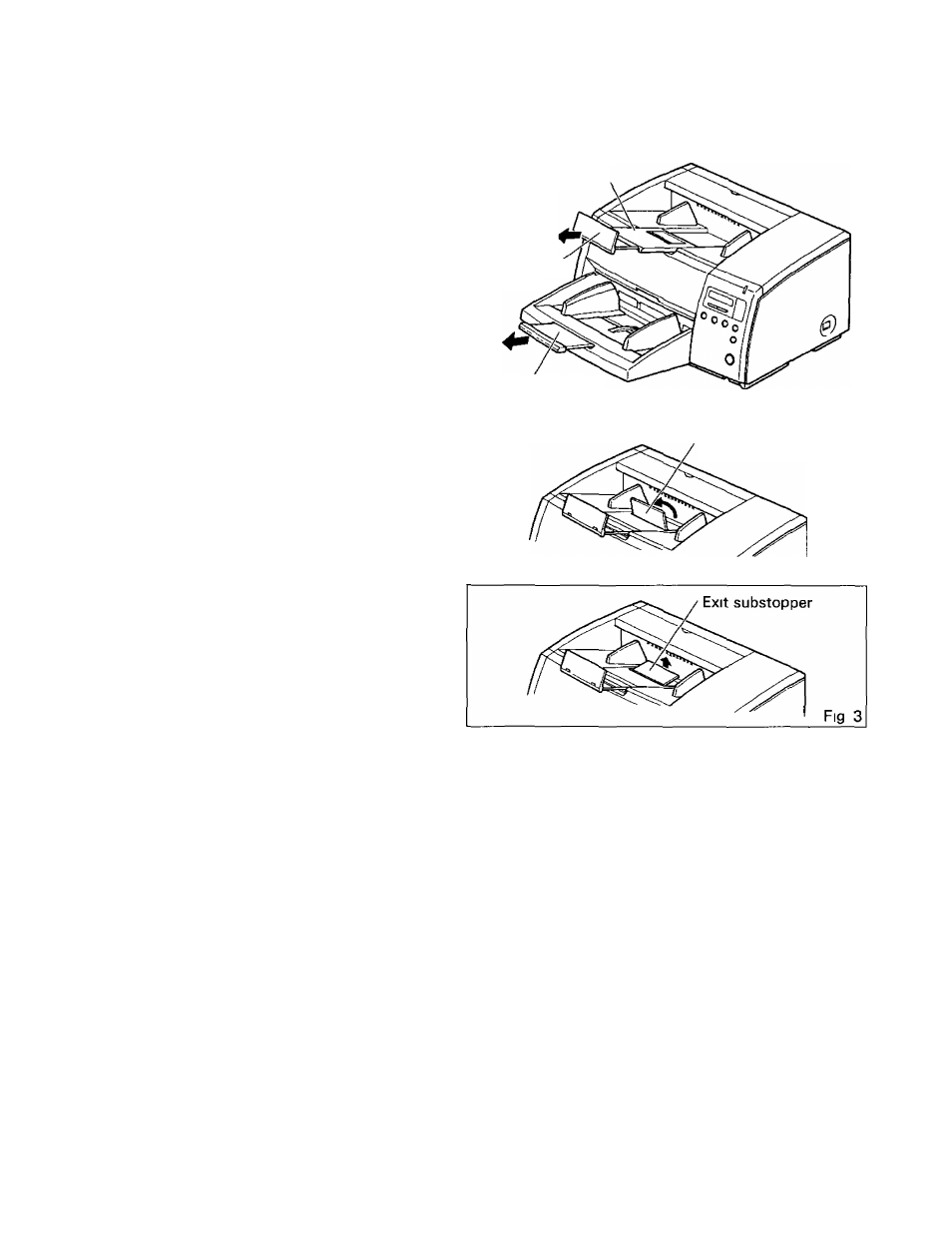

When using long paper, pull out
the hopper extension tray from
the hopper and the exit stopper
from the exit extension tray
You can also extend the exit
extension tray, if required (See
fig 1)
• When scanning narrow documents as
shown below, pull up the exit
substopper (See fig. 2)
Scanning direction
Exit extension tray
Exit stopper
Hopper extension
tray
Fig 1
Document
• When scanning thin documents, raise
the exit substopper slightly to let the
document exit smoothly. (See fig 3)
Exit substopper
Fig 2
Cautions :
• For thin, thick or important paper, scan the document using single sheet (manual feed) mode Also,
remove the document from the pre-imprinter door (exit part) after it is scanned
• The scanner will accept 50 to 157 g /m’ ( 13 to 42 lbs ) paper for continuous scanning and 20 to 157 g /'m’
(5 3 to 42 lbs ) paper for single scanning
• When scanning a thin, folded, creased or curled document, after straightening the document, set the feed
speed to "Slow"
• When scanning thin documents, be sure to use less than 300 sheets
• When scanning copying paper such as carbon or carbonless paper, set hopper single sheet (manual
feed)
• When setting the document, be sure that it does not exceed the fill indicator (limit mark)
• Be sure to remove the document from the pre-imprmter door (exit part) after it is scanned
• In cases where very fragile documents are to be scanned, it is recommended to make a copy and scan
the copy
Types of documents to avoid :
• OHP sheets, other plastic film, cloth, or metallic sheets
• Paper with irregularities such as tabs, staples, paste, etc
• Documents with wet ink
• Thick or irregular documents such as envelopes, paste, etc
• Copying paper such as carbons or carbonless paper (Chemically treated carbonless forms)
Note Scanning chemically treated paper will result in premature wear of the paper feed roller
• Damaged or wrinkled documents
• Unusually shaped documents
• Tracing paper
