ConnecHons
Red {+)
^i;fe (+)
(+)
Black H
H
ET
VOLT ^DJ
110V 127V <-► 220V 230-240V

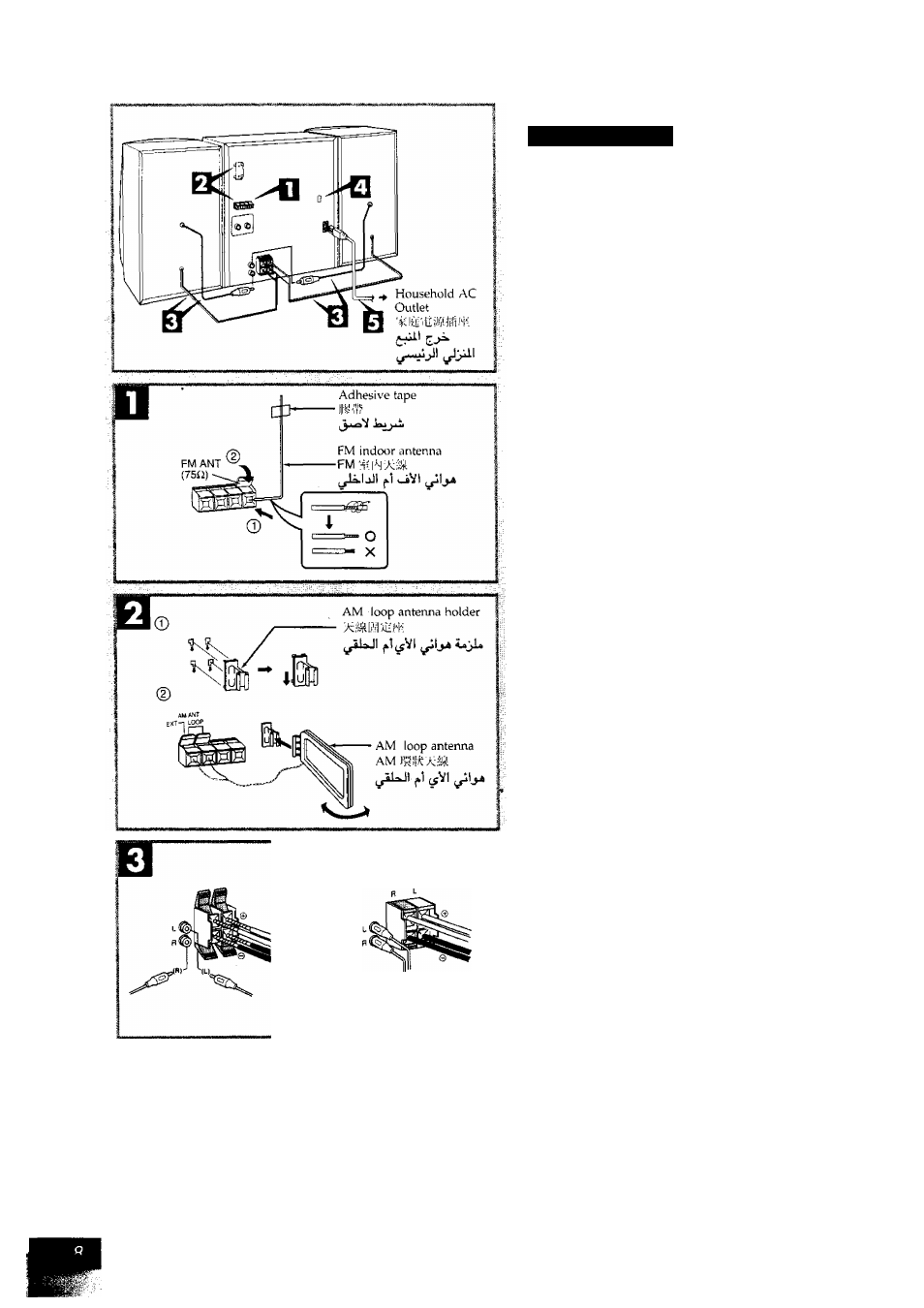

Basic connections
Plug the AC power cord into a household AC outlet only after ah
other connections have been made.
FM indoor antenna
Tape the antenna to a wall or column, in a position where
radio signals are received with the least amount of interference
For best reception sound quality:
An FM outdoor antenna is recommended, {See page 10.)
AM loop antenna
After attaching the antenna, turn on the system and tune in a
broadcast station. Then, turn the antenna to the angle of best
reception and least interference.
0 Connect the right (R) and left (L) speaker cords
(pin type).
0 Connect the right (R) and left (L) speaker cables.
• To prevent damage to circuitry, never short-circuit positive
(- h ) and negative (-) speaker wires.
• Be sure to connect only positive (red) wires to positive (-i-)
terminals and negative (black) wires to negative (-) terminals,
(Only when your system has VOLT ADJ)
Set the voltage.
Use a flat-head screwdriver to turn the voltage selector on the
rear panel to the appropriate position for the area in which this
system is used.
If the power supply in your area is 115 V or 120 V, please set
the voltage selector as follows:
• For 115 V; Set to llOV.
• For 120 V; Set to 127V.
AC power supply cord
(For areas except Hong Kong).
If the power plug does not fit your socket, use the power
plug adaptor (included) Q
Caution
Use the speakers only with the recommended system.
Failure to do so may lead to damage to the amplifier and/or the
speakers, and may result in the risk of fire.
Consult a qualified service person if damage has occurred or if
you experience a sudden change in performance.
