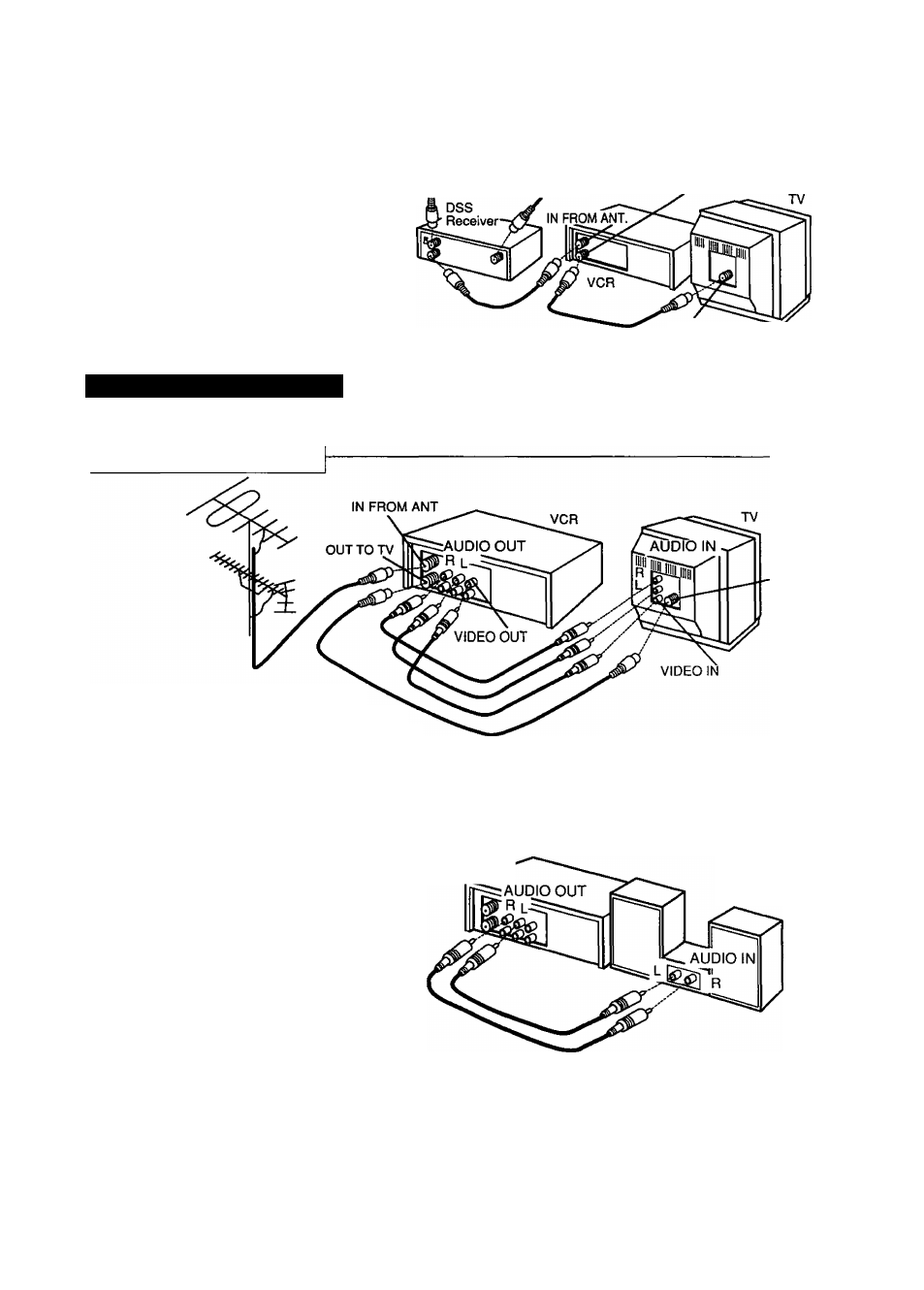

r With a DSS Receiver
You can;
1)
Record and view any channel including
scrambled channels; channel selection
must be made at the DSS Receiver.
2)
Program one channel for unattended
recording.
NOTE: The DSS receiver must be turned
off to view programs from a cable
box or antenna. See the DSS
manual for details.
IN FROM
CABLE or
Antenna
IN FROM
Satellite Dish
OUT TO TV
VHF/UHF
Audio/Video Connections
If your TV has AUDIO IN and VIDEO IN terminals, you can connect your VCR to them to receive a higher quality
picture and sound. The antenna-VCR and VCR-TV connection is as shown.
Audio/Video Connections
VHF/UHF
Connect the VIDEO OUT terminal on the
VCR to the VIDEO IN terminal of your TV.
Connect the “L" and “R” AUDIO OUT terminals on
the VCR to the "L" and “R” AUDIO IN terminals of your TV.
Set the VIDEO/TV selector of your TV (Monitor/Receiver) to “VIDEO."
NOTE: To use your TV as a VCR monitor, set the VIDEO/TV selector on the TV (Monitor/Receiver) to “VIDEO.
Stereo Ampiifier Connections
When you connect your VCR to a
Stereo Component System, you can
view the picture from the VCR while
enjoying stereo from your audio
system.
Connect the “L" and “R” AUDIO OUT
terminals on the VCR to the “L" and “R”
AUDIO IN terminals of your stereo.
VCR
Stereo Amplifier
‘DSS® is a registered trademark of DIRECTV, INC., a unit of GM Hughed Electronics.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC in USA (and to the
Canadian Electrical code in Canada) that provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
