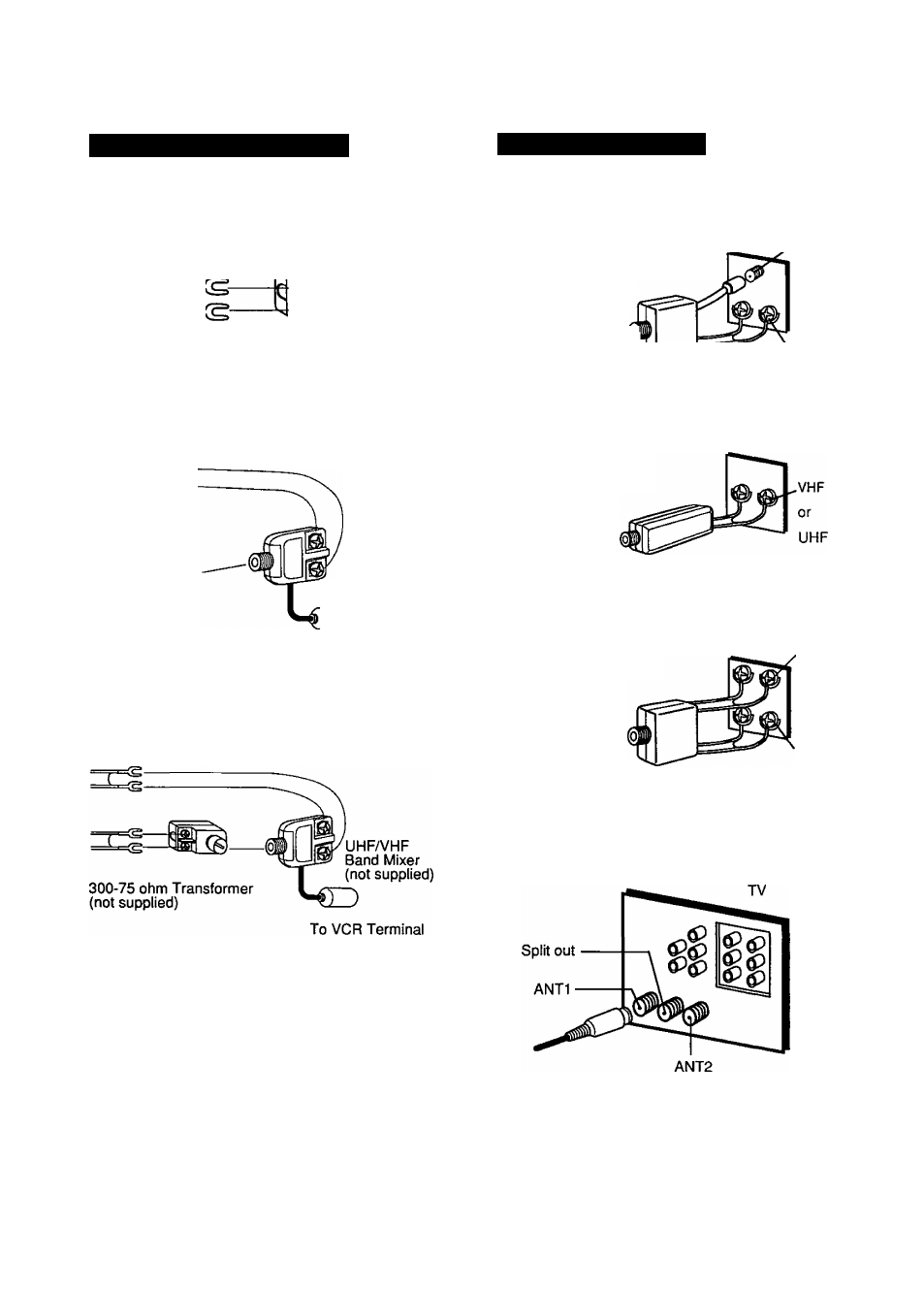

Between Antenna and VCR
Between VCR and TV
Case 1: Twin Lead Cable Only
(Flat) Twin Lead 300
Ohm Cable
To VCR Terminal
300-75
ohm
Transformer
{not supplied)
Case 2: Twin Lead & Coaxial Cables
(Round) 75 Ohm
coaxial Cable
UHF/VHF
Band Mixer
{not supplied)
D
To VCR Terminal
Case 3: Two Twin Lead Cables
If your TV has both post and screw-type VHF
terminals, using the post connection is
recommended to minimize signal loss.
Case 1: Screw & Plug Type Terminal
UHFA/HF Band Separator
wup
(not supplied)
-
^ ^
U j . , . . - . — \ U H F
RF Coaxial Cable
Case 2: Screw Type Terminal
75-300
ohm
Transformer
(not supplied)
TV
Case 3: Double Screw Type Terminal
TV
UHF/VHF
Band
Separator
(not supplied)
VHF
UHF
Case 4: Complex TV Terminal
TERMINALS ON BACK OF TV SET
Connect to one of the ANT terminals and select
the same antenna number on the TV.
