Toil pi MTS Broadcast/ VHS Hi-Fi Stereo System
ai<
Check list before you begin
D The VCR is connected to a stereo TV, or a mono TV and stereo amp or receiver with speakers.
^ The VCR and other components are plugged in and turned on.
Connections
to Make

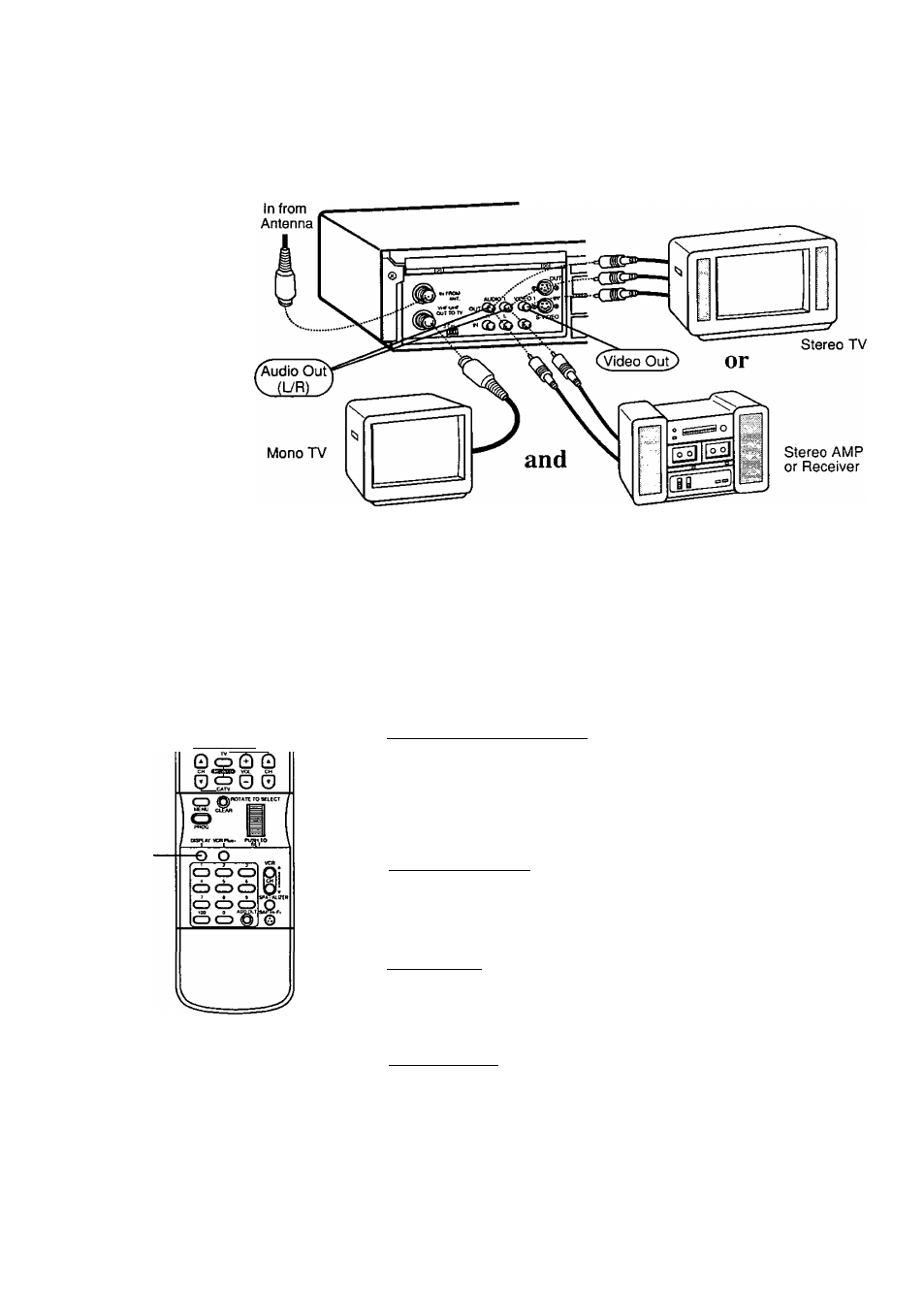

When recording, you may monitor in
stereo, by connecting the VCR to
either a stereo TV, or a mono sound
TV with stereo amp and speakers.
VCHTV^iKti"»^D
O O O
oil« PMBi
o © © S
DISPLAY
Equipped with dbx^ -TV Noise Reduction
for true MTS reproduction. dbx^ -TV
Noise Reduction is required for good
stereo separation and audio fidelity,
dbx*
is a registered trademark, and is
licensed by dbx^ Technology Licensing.
24
Receivable Broadcast Types
The following are possible broadcast types with their accompanying on-screen
displays. The signal(s) not being received is enclosed in parenthesis. The
currently selected audio mode is indicated with an arrow. To change the audio
mode for listening to, or recording these broadcasts, follow the steps on page 25.
DISPLAY
I
Push DISPLAY to display the broadcast
signal currently being received on-screen.
MTS Stereo and SAP broadcast
Multi-channel Television Sound Stereo
(main language) and Second Audio Program
(second language) broadcasts are being
received simultaneously. Select the STEREO
or SAP audio mode as desired.
MTS Stereo broadcast
Multi-channel Television Sound Stereo
broadcast is being received.
SAP broadcast
Second Audio Program (second language)
broadcast is being received. Select SAP
audio mode for the second language.
MONO broadcast
Normal monaural sound broadcast is
being received.
• If a stereo broadcast is weak and the display
flickers, you may want to select the MONO
audio mode for better results.
STOP 12:00AM V/NET
0:00:00
STEREO
SAP
MONO
SLP
STOP 1 2 : 00AM WNET
0 : 00:00
STEREO <-
(SAP)
MOW
SLP
STOP 12:00AM WNET
0 : 0 0 : 0 0
(STEREO)
SAP
MONO
SLP
STOP 12:00AM WNET
0:00:00
(STEREO) SLP
(SAP)
MONO <-
When recording, the currently selected broadcast sound is always recorded
on the left and right Hi-Fi tracks as well as the normal monaural track. This
means your tapes can be played back on Hi-Fi as well as non-Hi-Fi VCRs.
