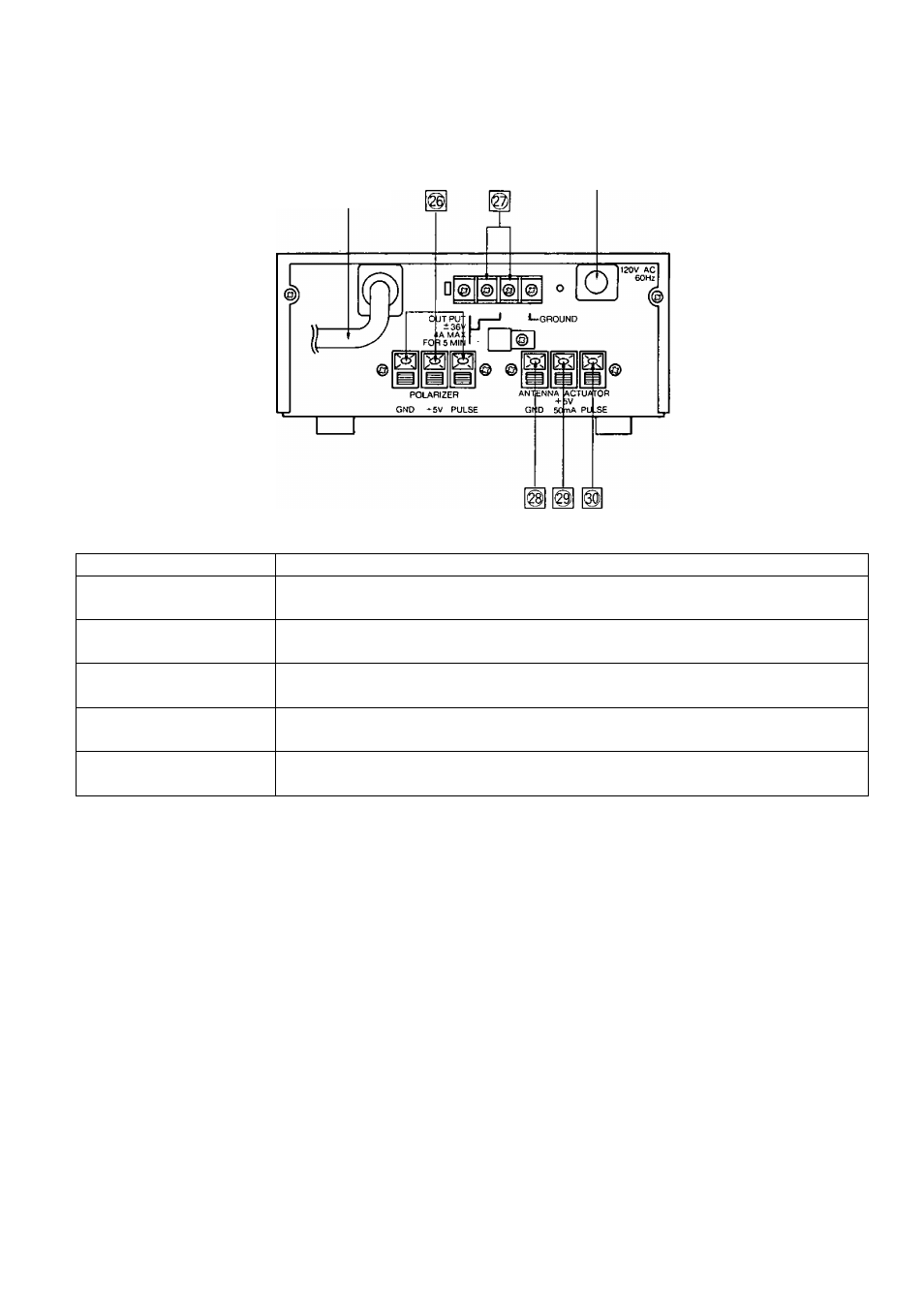

REAR TERMINALS [CRD-4500P]

25P Connecting Cable

AC Cord

ITEM NO.

PURPOSE

1^ POLARIZATION CONTROL

^ SIGNAL TERMINAL

Polarizer signal outputs.

@ ±36V/+36V TERMINAL

±36V DC output to actuator motor.

1^ GND TERMINAL

Signal ground conductor from actuator.

g| DC 5V TERMINAL

5V DC (50 mA) output to supply Hall or Optical sensor in actuator.

O PULSE TERMINAL

Connection from the sensor pulse output of the actuator.
(Reed switch, hall sensor or optical type)

Note: n Terminals
