Connections

2 3 4

-ACM

ira

(For areas except

^ Australia and

New Zealand only)

Connect the FM Indoor antenna provided with

this system.

Tack or tape this antenna to a wall. If you use a tack, be sure

it does not contact the internal antenna wire. Experiment with
the height and direction of the antenna untii you achieve the

best reception.

For best rec^tlon and sound quality:
Use an FM outdoor antenna. If you use an FM outdoor an
tenna, disconnect the indoor antenna.

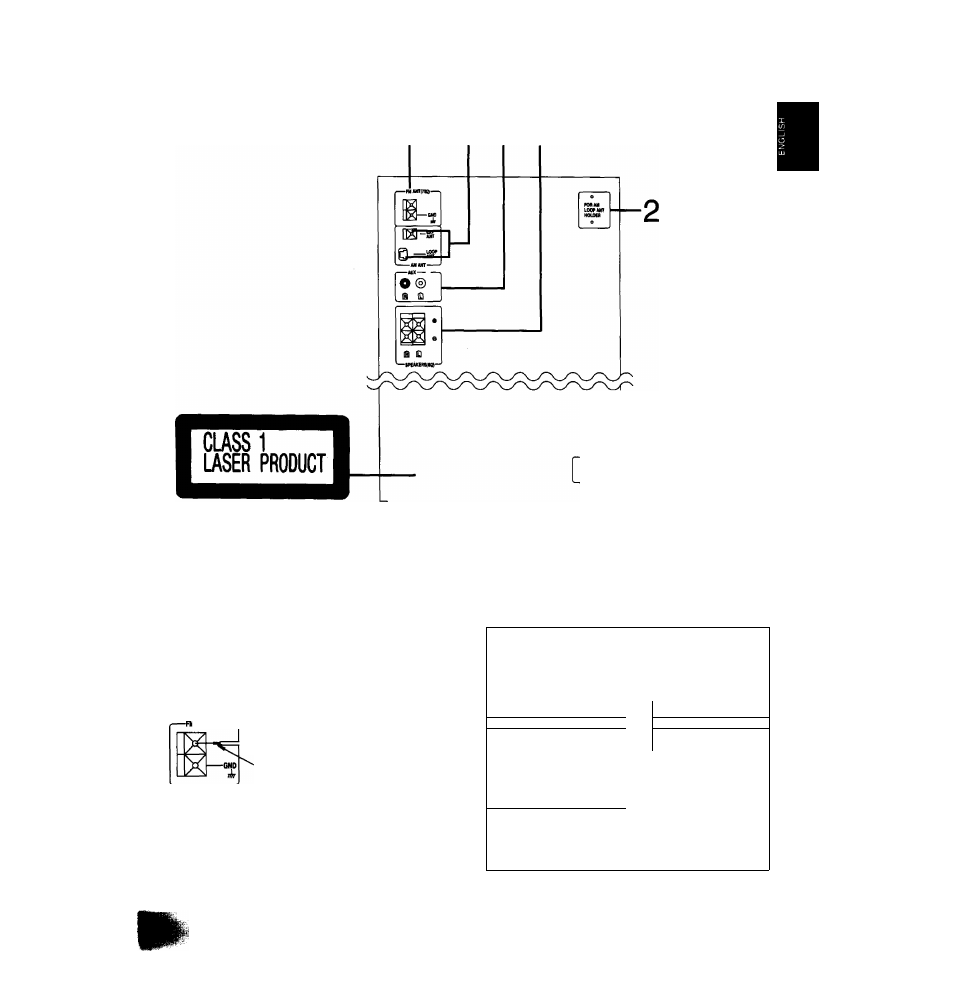

Connecting the FM Indoor antenna

■ FM outdoor antenna (not included)
If the FM indoor antenna does not provide satisfactory reception of
FM broadcasts, use an outdoor antenna.
You may need an outdoor antenna if you use this system in a
mountainous region or inside a reinforced-concrete building, etc.

An outdoor antenna should be installed by a competent technician
only.

lANTpSQ)

FM indoor antenna
(included)

______

Tack or
tape to wall

Remove a piece of the outer vinyl

sheath and twist the center conductor
wires together.

Connecting a 75-ohm coaxial cable

1. Remove a piece of the

3. Tilt the lever back and

outer vinyl sheath from

insert the core wire and

the end of the cable.

the shield braid.

h-im-

---------- 1

I—

30 mm

2. Bundle the shield braid,

4. Close the lever and pull

and remove a piece of

die cable gently to be

the inner vinyl sheath

sure that it is secure.

covering the core wire.

15 mm
