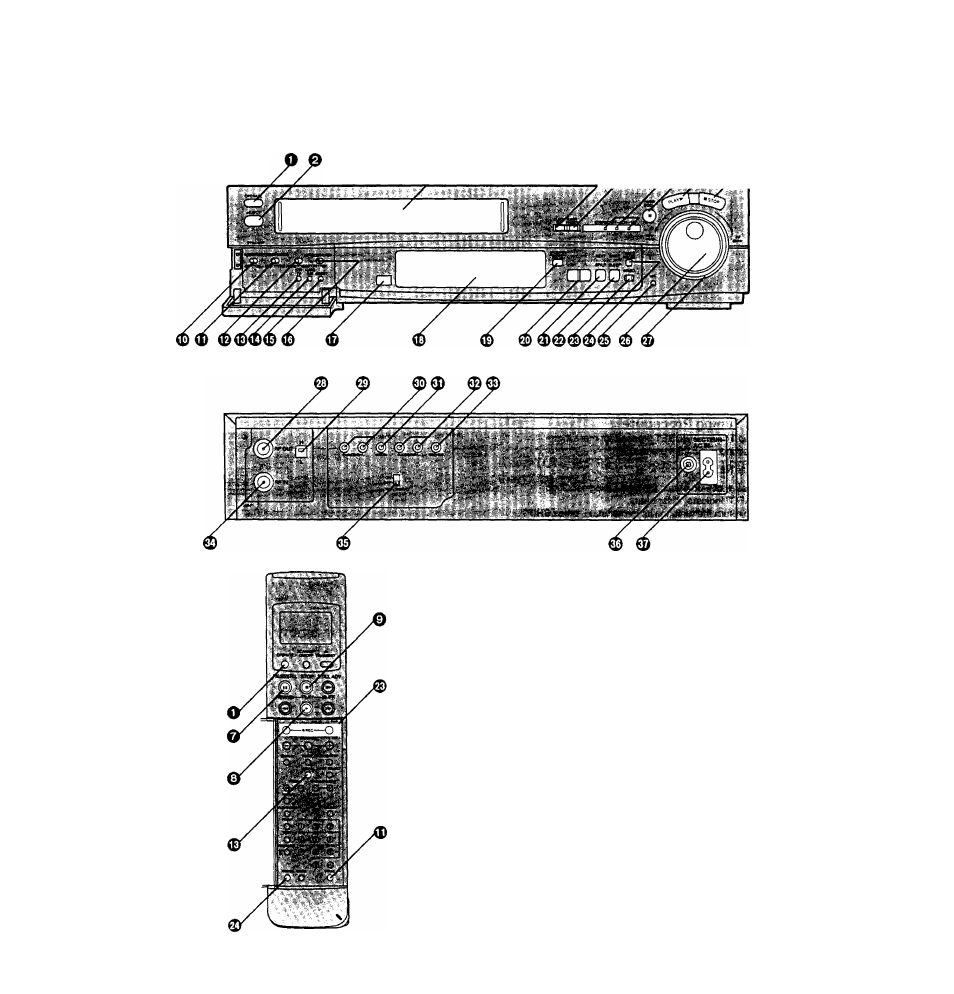

Controls and Connection Sockets
This gives a detailed explanation of the function of each button, switch and connection socket.
o
OPERATE
To turn the VTR on and off.
0
EJECT
To eject a video cassette.
e
Cassette Compartment
Insert a video cassette here.
©CLOCK SET
To set the time,
0
TUNER PRESET
To initiate TV station settings for the tuner.
© Indicator Lamps for Ml, M2 and Stereo Reception
When receiving a TV programme, automatically
indicates when a TV programme is broadcast with the
NICAM sound system.
o
PAUSE/STILL
During playback; Still picture.
During recording; To interrupt recording.
In the stop mode: Still picture. (Only VTR)
0
PLAY
To start playback. is lit.
0
STOP
To stop any playback or recording.
to
