Installation Guide
(Continued)

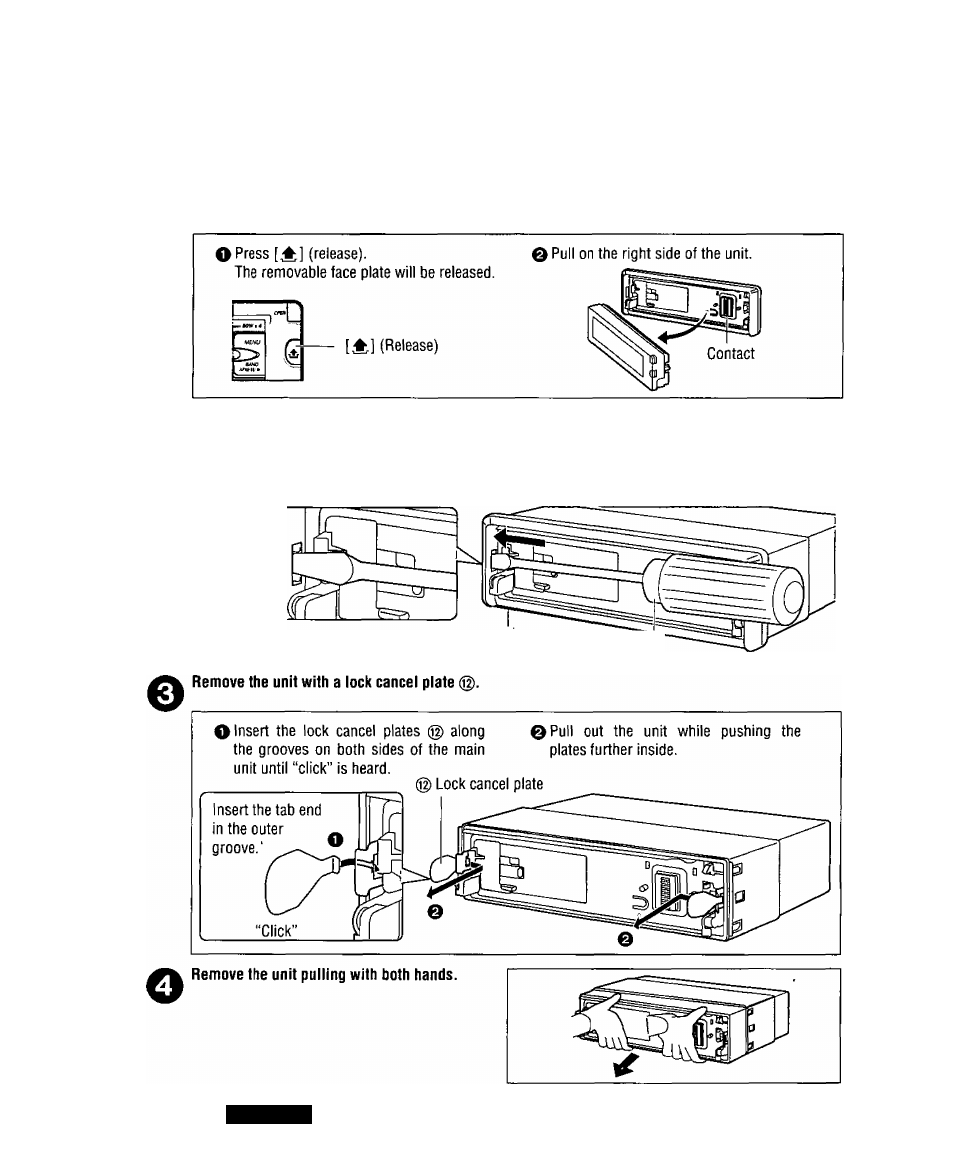

Remove the Unit
Switch off the power of the unit.
Remove the removable face plate.
e
Remove the trim plate (g) with a screwdriver.
• First remove one side, then the other.
O
Fit the screwdriver into the hole of 0 Insert the screwdriver until “click” is heard,
the trim plate.
©Trim plate g„ewdriw
58
CQ-DF802U
