Removing a paper misfeed (8A^)
When paper misfeed has occured, the misfeed indicator and misfeed
position(s) will be indicated on the touch panel display.
o o o
o o
o o o
o o o
>
o o o o
§§So

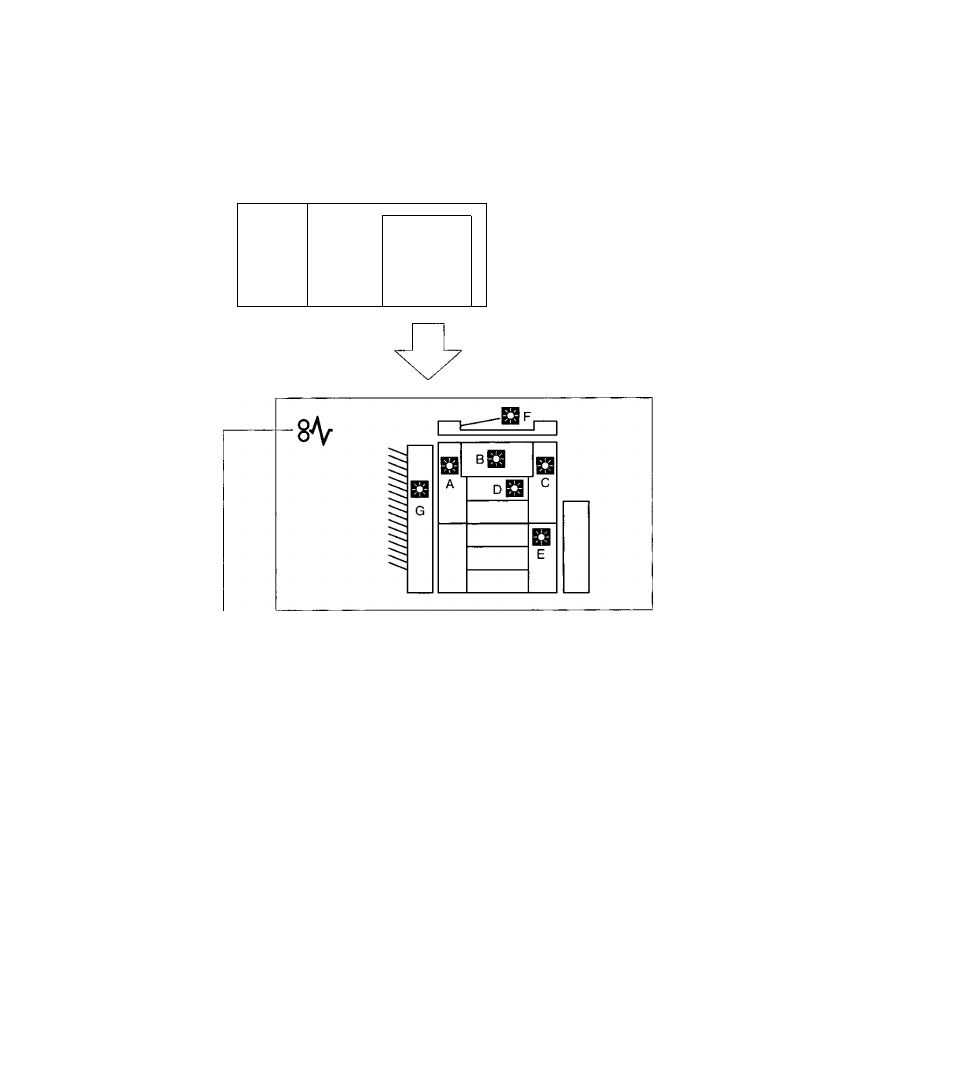

Paper Misfeed Positions
Copier
8
A^
System Console
ADF
i-ADF
Sorter
A: The paper exit area (See P.52)
B: Paper transport area (See P.53)
C: Paper entry area (See P.53)
LCC, Large Capacity Cassette (See P.55)
D: Automatic Duplex Unit (See P.54)
E: System Console (See P.55)
F: ADF/i-ADF (See P.56-57)
G: 20 Bin Sorter (See P.58)
