Electrical Connections
Cautions:
• This product is designed to operate off a 12 V DC, negative ground battery system.
• To prevent damage to the unit, be sure to follow the connection diagram below.
• Remove approx, V4" (5 mm) of protective covering from the ends of the leads before connecting.
• Do not insert the power connector into the unit until the wiring is completed.
• Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables and keep
cable terminals free from touching any metal parts.
• Remember, if your car has a drive computer or a navigation computer, the data of its memory may be erased when
the battery terminals are disconnected.
Accessory used for wiring
No. Mem Q’ty
CD
Power connector 1

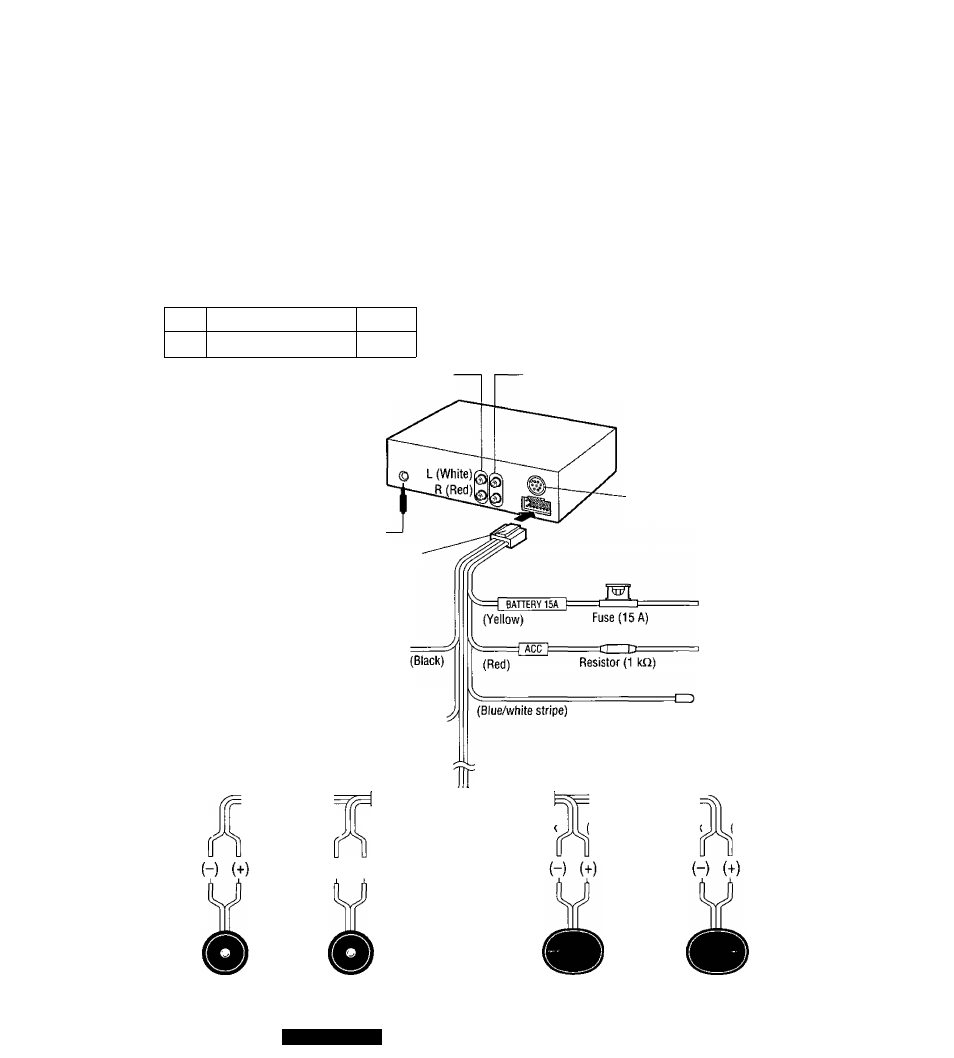

□ Wiring Diagram
Pre-Amp output
connector
(Rear)
CD changer input connector
w
CD changer control
connector
Antenna
Power connector
Ground lead
To a clean, bare metallic part of the car
chassis.
Motor antenna
relay control lead
CZI
(To motor antenna) (Max. 500mA) (Blue)
This lead is not intended for use with switch actuated
power antenna.
Note:
The power antenna extends automatically
when
the radio mode is selected.
(White/black
stripe)
(White) (Gray/black
stripe)
FRONT SP
Speaker lead
REAR SP
Battery lead
To the car battery,
continuous +12 V DC
ACC power lead
To ACC power,
+12VDC
External amplifier control lead
(Max. 500 mA)
This lead is for connection to the power amplifier.
Note:
This lead is used for power control when
an external power amplifier is connected. The
power supply of a power amplifier will be
activated when turning on the power of this unit.
(Gray) (Green/blacI Green) (Violet/blacl Violet)
stripe)
H (+)
stripe)
Left Speaker
(Front)
Right Speaker
(Front)
Left Speaker
(Rear)
Right Speaker
(Rear)
30
CQ-DP171U
