Installation Guide
A
WARNING
This installation information is designed for experienced installers and is not
intended for non-technical individuals. It does not contain warnings or cautions of
potential dangers involved in attempting to install this product.
Any attempt to install this product in a motor vehicle by anyone other than a qual
ified installer could cause damage to the electrical system and could result in
serious personal injury or death.
□ Installation Hardware
No.
Item
Diagram
Q’ty
Mounting collar
%
1
CD
Hex. nut (5 mmo)
1
CD
Rear support strap
1
©
Tapping screw (5 mmo x
16 mm)
1
CD
Mounting bolt (5 mmo)
1
®
Power connector
1
Removable face plate case
1
Trim plate
1
Caution: This unit operates with a 12 V DC negative
ground auto battery system only. Do not attempt to use
it in any other system. Doing so could cause serious
damage.
Betöre you begin installation, look for the items which are
packed with your unit.
• Warranty Card
... Fill this out promptly.
• Panasonic Servicenter for Service Directory
... Keep
for future reference in case the product needs servicing.
• Instaiiation Hardware
... Needed for in-dash installa
tion.
□ Required Tools
You’ll need a screwdriver, a 1.5 V AA battery, and the fol
lowing:
Side-cut
pliers
1 2 V D C
Electrical
Test bulb
tape
(n)
□ Overview
This product should be installed by a professional.
However, if you plan to install this product yourself, your
first step is to decide where to install it. The instructions in
these pages will guide you through the remaining steps:
(Please refer to the “WARNING” statement above).
• Identify and label the car wires.
• Connect the car wires to the wires of the power connec
tor.
• Install the unit in the dashboard.
• Check the operation of the unit.
If you encounter problems, please consult your nearest
professional installer.

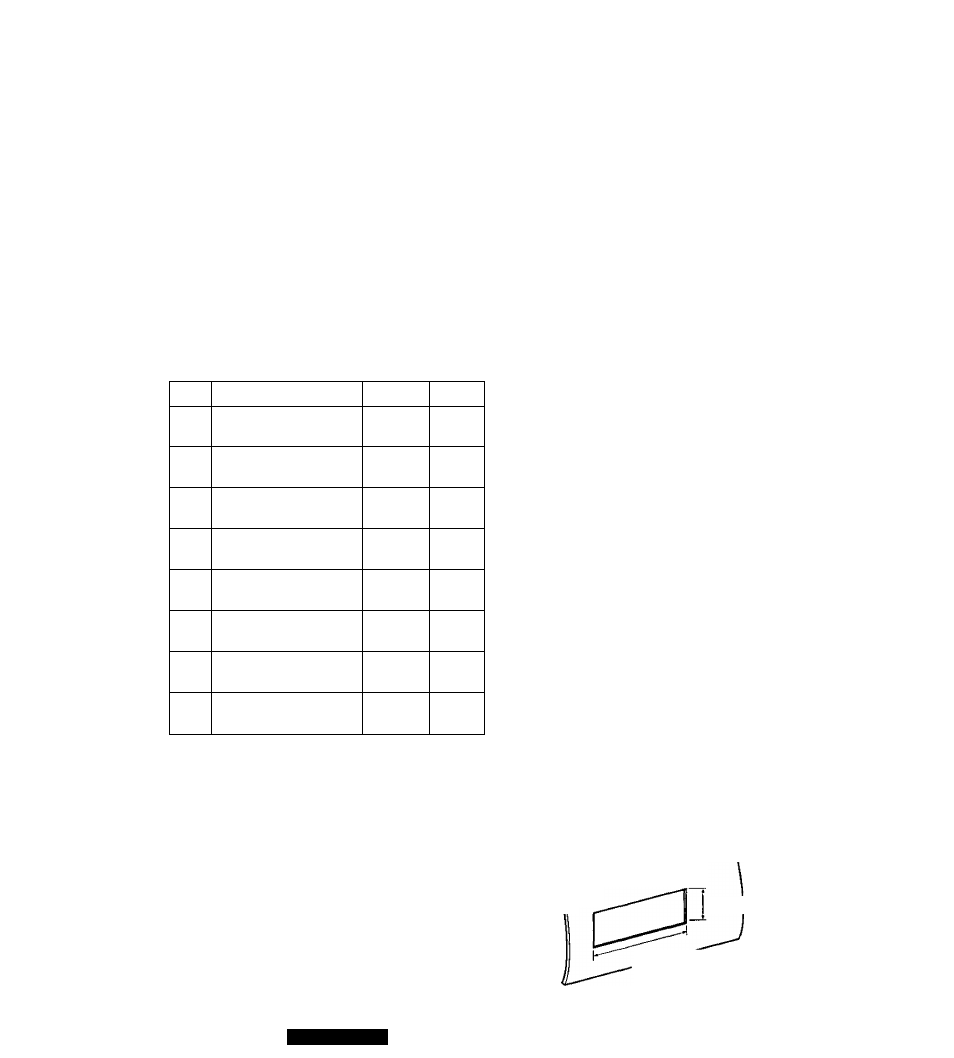

□ Dashboard Specifications
Thickness
Min. 3/16” (4.75 mm)
"II"— Max. 7/32” (5.56 mm)
I
2 3/32” (53 mm)
7 5/32” (182 mm)
24
CQ-DP171U
