Chapter 3 Installing the Cisco Global Site Selector 4490
Connecting Cables
3-14
Cisco Global Site Selector 4490 Hardware Installation Guide
78-15755-01
Connecting Cables
To connect network and console cables to your GSS 4490, follow these steps.
1. For network connections, insert a Category 5 UTP cable into the Ethernet 0
or Ethernet 1 receptacle on the GSS 4490 back panel (
Figure 3-9 ).
2. Connect the other end of the network cable to a hub or switch in your
network.
3. For console connections, plug the cable into the console port on the
GSS 4490 back panel.
4. Connect the other end of the console cable to a console or a
communications server.

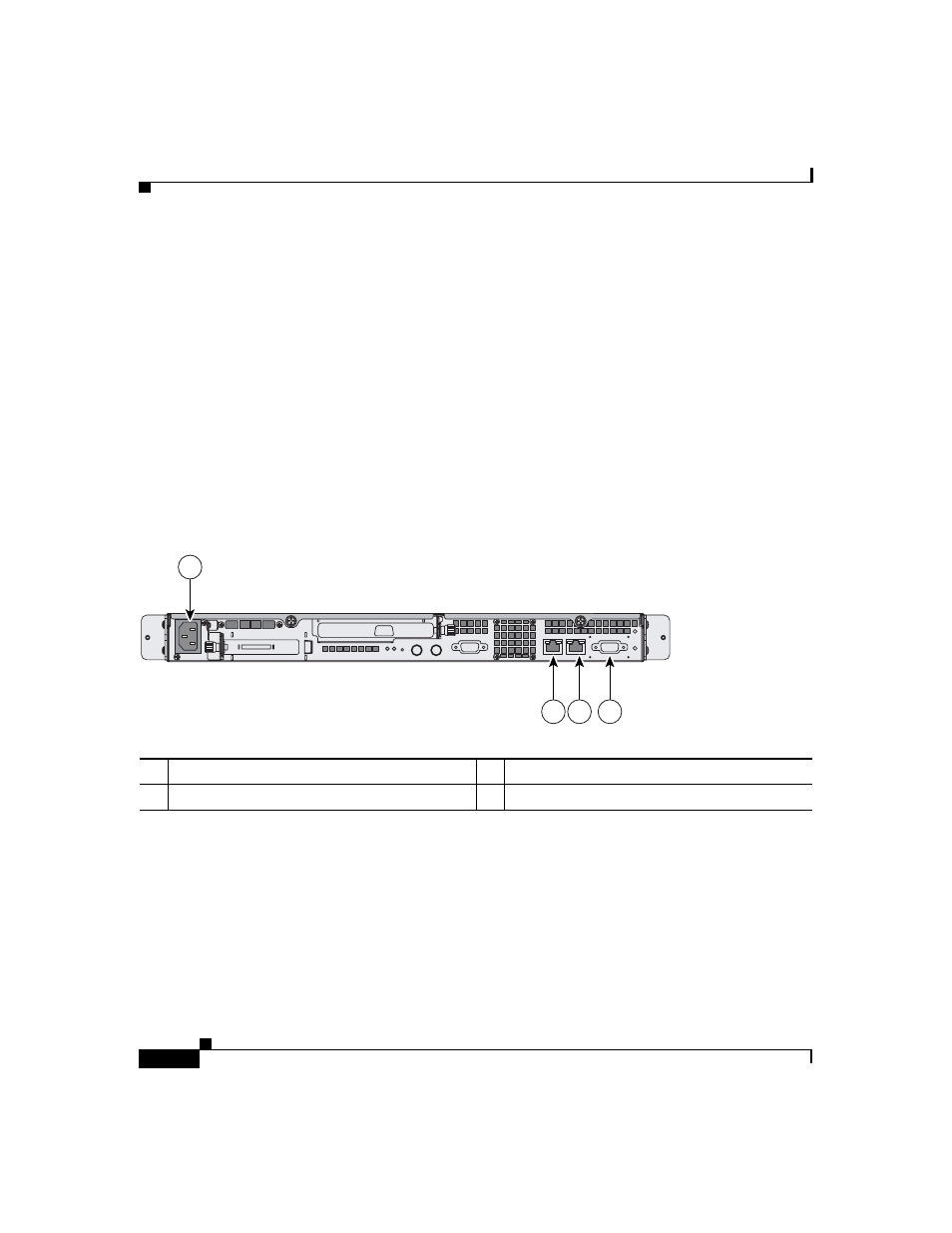

Figure 3-9 Global Site Selector 4490 Back Panel Ports and Receptacles
1 AC power receptacle 2 Ethernet 0 receptacle
3 Ethernet 1 receptacle 4 Console port
97214
1
3 4 2
