Chapter 1 Introduction
Hardware Features
1-10
Cisco Global Site Selector 4490 Hardware Installation Guide
78-15755-02

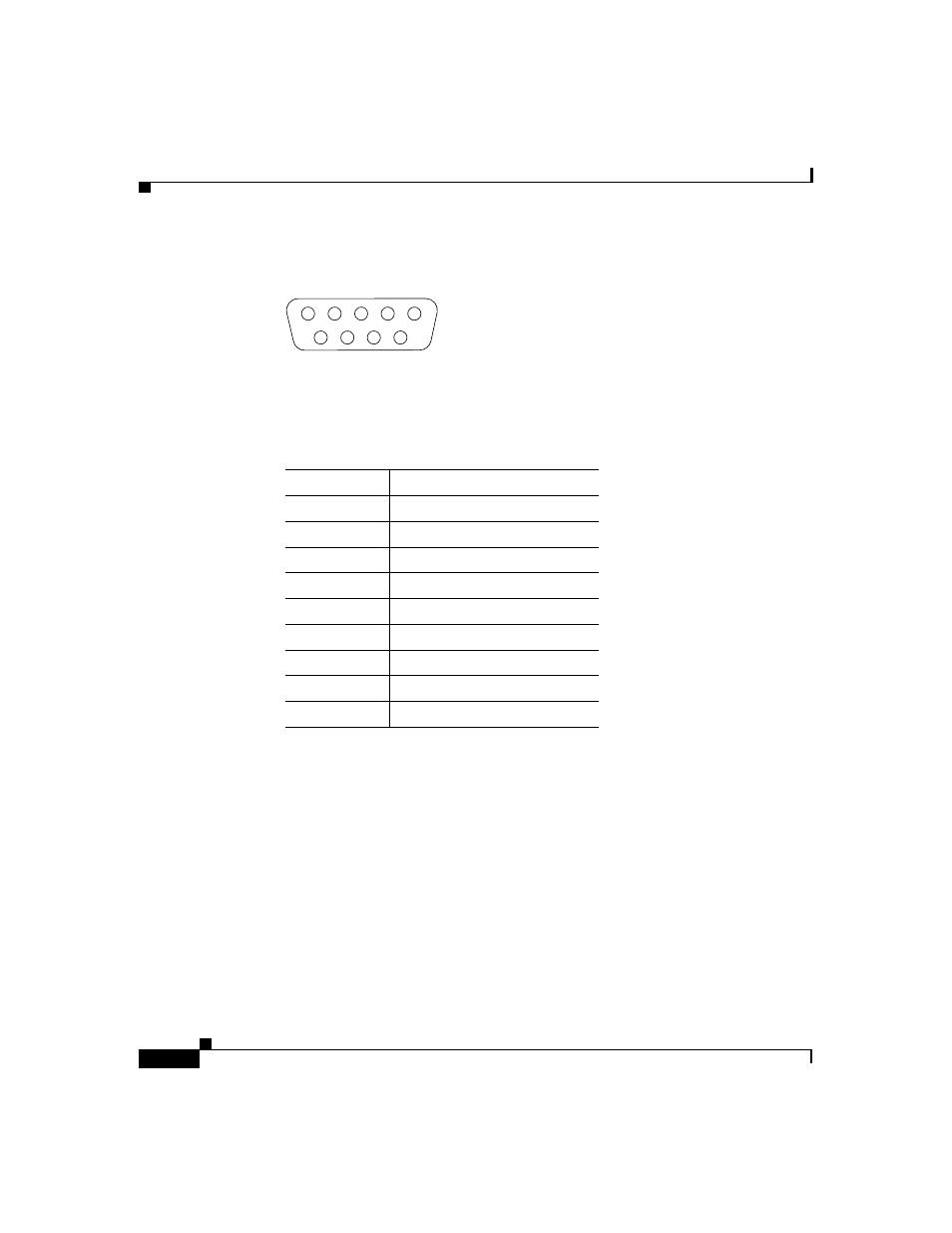

Figure 1-8 Console Port Connector
Table 1-5 lists the connector pinouts for the console port on the GSS 4490 back
panel.
1 5
6 9
83193
Table 1-5 Console Port Connector Pinouts
Pin Number Signal Name
1 DCD (Data Carrier Detect)
2 RD (Receive Data)
3 TD (Transmit Data)
4 DTR (Data Terminal Ready)
5 SG (Signal Ground)
6 DSR (Data Set Ready)
7 RTS (Request to Send)
8 CTS (Clear to Send)
9 RI (Ring Indicator)
