Figure 3-4 – Cisco 4490 User Manual
Page 54
Chapter 3 Installing the Cisco Global Site Selector 4490
Installing Your Unit
3-8
Cisco Global Site Selector 4490 Hardware Installation Guide
78-15755-01

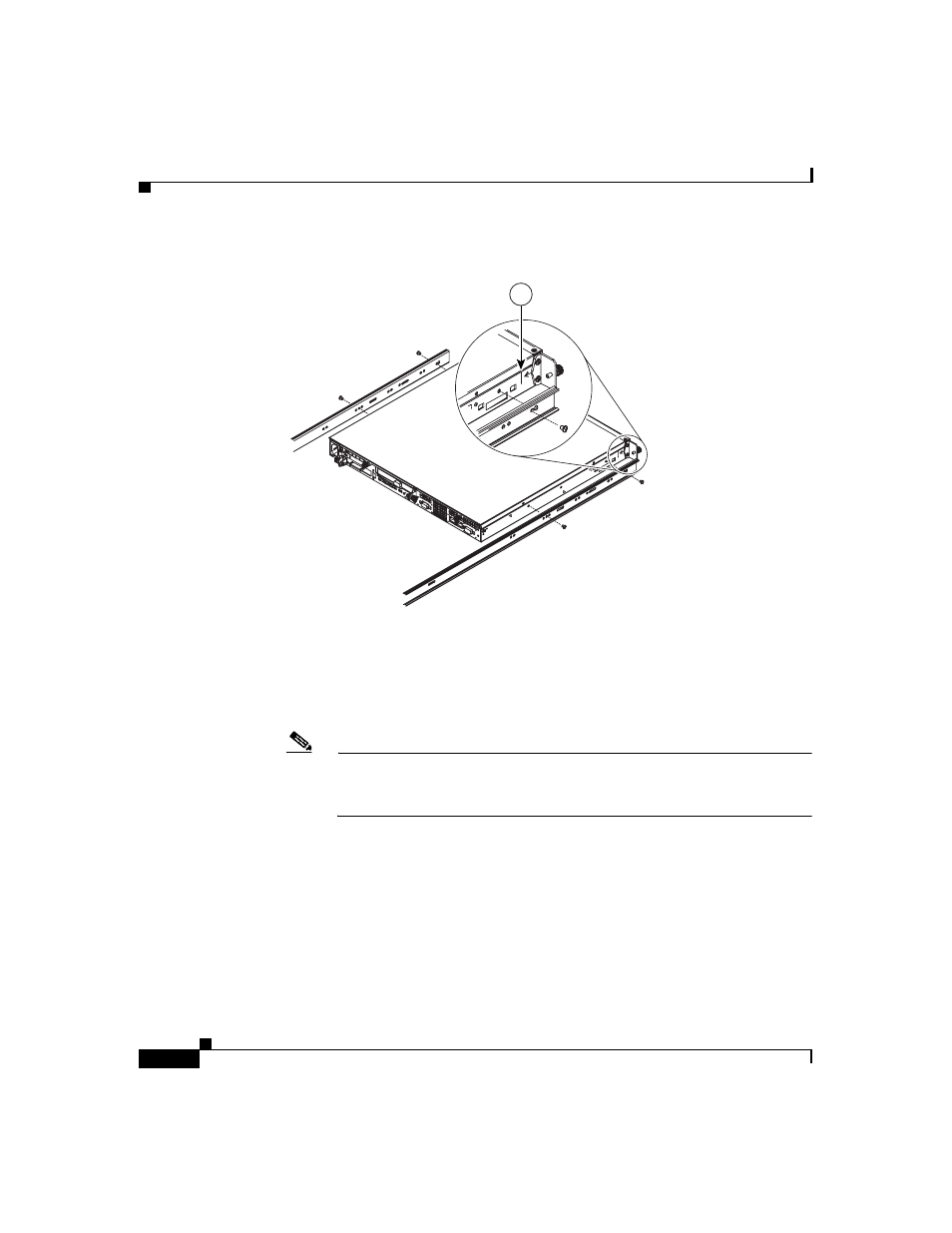

Figure 3-4
Attaching the Inner Slide Rail to the GSS 4490
4.
Insert the tab on the front of the slide rail assembly through the center hole
between the two clip nuts or cage nuts on the front flange.
5.
Align the slide rail assembly to the front flange on the rack.
Repeat step 4 and this step to install the other slide rail assembly.
Note
If it is necessary to adjust the length of the slide rail, loosen the
adjustment screw on the rear of the slide rail; then adjust the length of the
slide rail and tighten the adjustment screw (
6.
Insert and tighten two M6 screws to secure the slide rail to the front flange
(
).
1
97661
