3-7
Cisco Global Site Selector 4490 Hardware Installation Guide
78-15755-01
Chapter 3 Installing the Cisco Global Site Selector 4490
Installing Your Unit
2. Remove the inner slide rails from the slide rail assemblies by pressing the
release latches on the sides of the slide rail assemblies (
Figure 3-3 ).

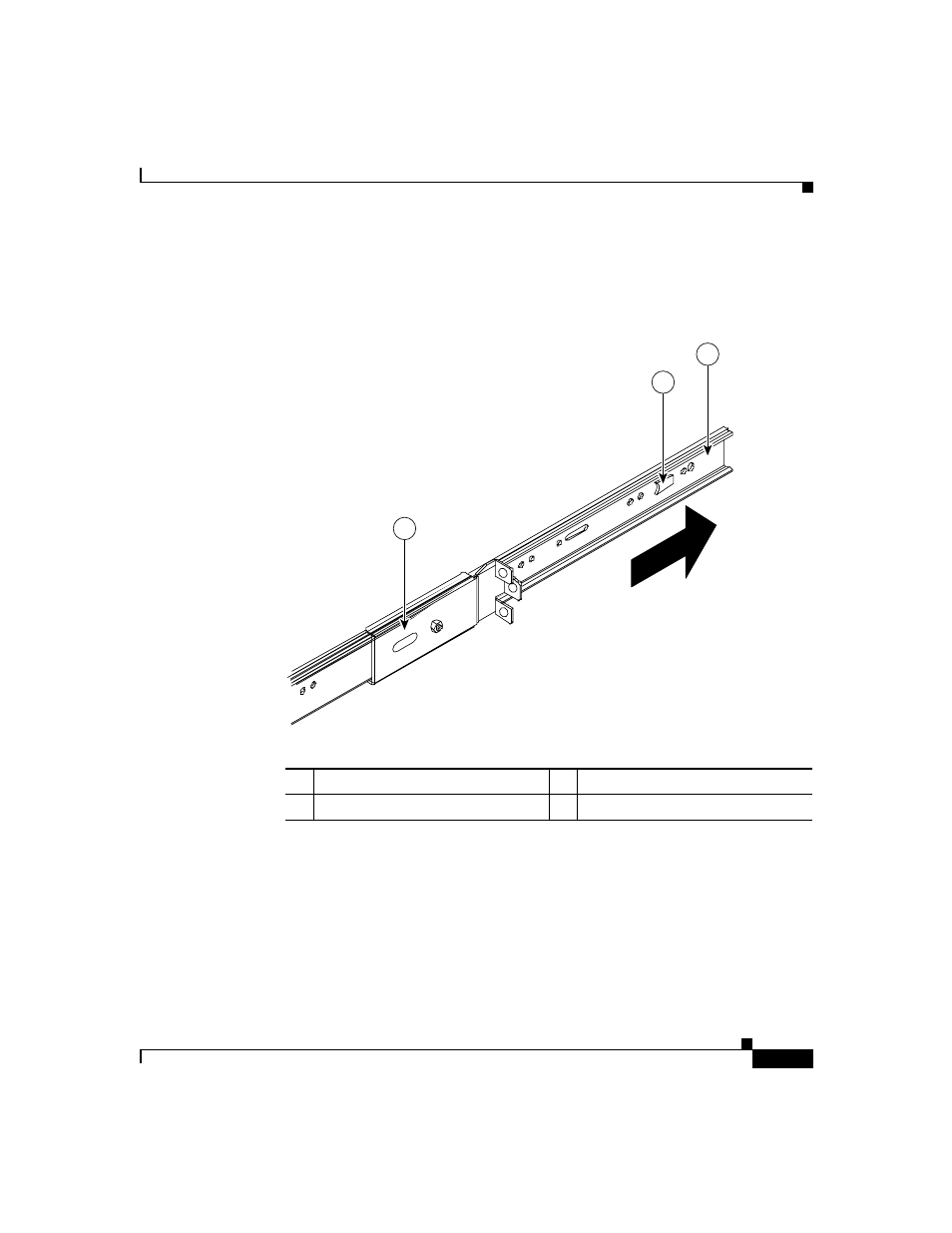

Figure 3-3 Removing the Inner Slide Rail
3. Place an inner slide rail at the alignment marker (labeled 1 in Figure 3-4 ) as
indicated by the arrow on the side of the GSS 4490. Use two M4 screws to
secure the inner slide rail to the GSS 4490.
Repeat this step to attach the other inner slide rail to the GSS 4490.
1 Slide rail assembly 2 Release latch
3 Inner slide rail
83202
1
2
3
