A
C
E
B
D
1
2
3 4
5 6
A small test network
A
C
E
B
D
1
2
3 4
5 6
Spanning Tree from source (C)

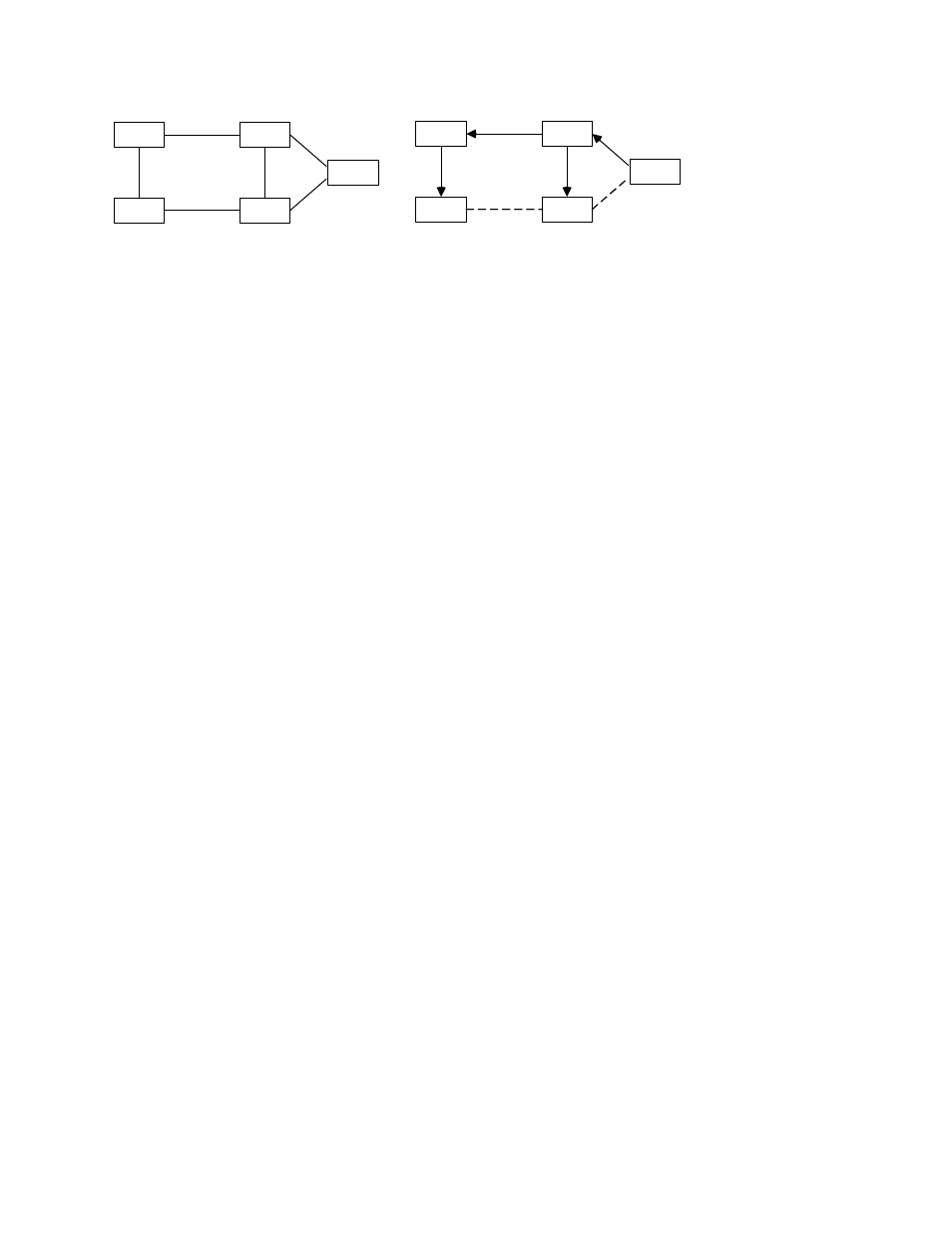

Figure 20. Typical Spanning Tree Application.
Note: For details on the Spanning Tree Algorithm, see the IEEE 802.1 specifications.
4.6.1 Global Spanning Tree Parameters
Use the Global Spanning Tree Parameters menu to set various STP parameters for the 9155 within the
network. See Figure 21 and Table 8. To access the Global Spanning Tree Parameters menu, follow
these steps:
1. From the Switch Configuration menu, type 1, "Global Spanning Tree Parameters," and press
.
2. At the Global Spanning Tree Parameters menu, type the number for an item and press ,
then follow the prompts.
3. To return to the Switch Configuration menu, press .
GLOBAL SPANNING TREE PARAMETERS
1. Admin Mode : disabled
2. Version : 802.1s
3. Configuration Name : 00-40-2A-12-34-00
4. Configuration Revision : 0
5. Priority : 32768
6. Hello Time (sec) : 2
7. Forward Delay (sec) : 15
8. Max Age (sec) : 20
9. View/Change Interface :
10. Main Menu
Figure 21. Global Spanning Tree Parameters Menu
9155 Network Interface Device 4-14
