EdgeAccess Universal Chassis System
L351 10/100BASE Media Converter 2-1
Chapter 2
Setup and Installation
This section describes how to set up and install the L351.
Before setting up the L351, make sure the chassis is installed and its Users Manual is available for
reference. If the system includes an optional DMM and CIM(s), make sure these are available:
• Serial cable (required to connect the chassis or 1020 enclosure to a VT100 type terminal or PC)
• VT100 type terminal or PC to run the User Interface manager
• The DMM and CIM manuals
2.1 Unpack and Inspect
Unpack and inspect all components. Save the shipping carton and packing materials in case you need
to return the equipment to the manufacturer. Appendix A provides information for Return Material
Authorization (RMA).
2.2 Set Up the L351
Before inserting the L351, look up the model number to verify that the L351 provides the wavelength
and fiber mode type that match its link partner.
For installation in a UCS 1001 or a Model 1030 enclosure, or if you plan to use the Hardware Option
Control see Chapter 4, set SW2 and SW3 (see Figure 2-1 and Table 2-1). For more information about
the SW2 and SW3 functions, see Chapter 3.

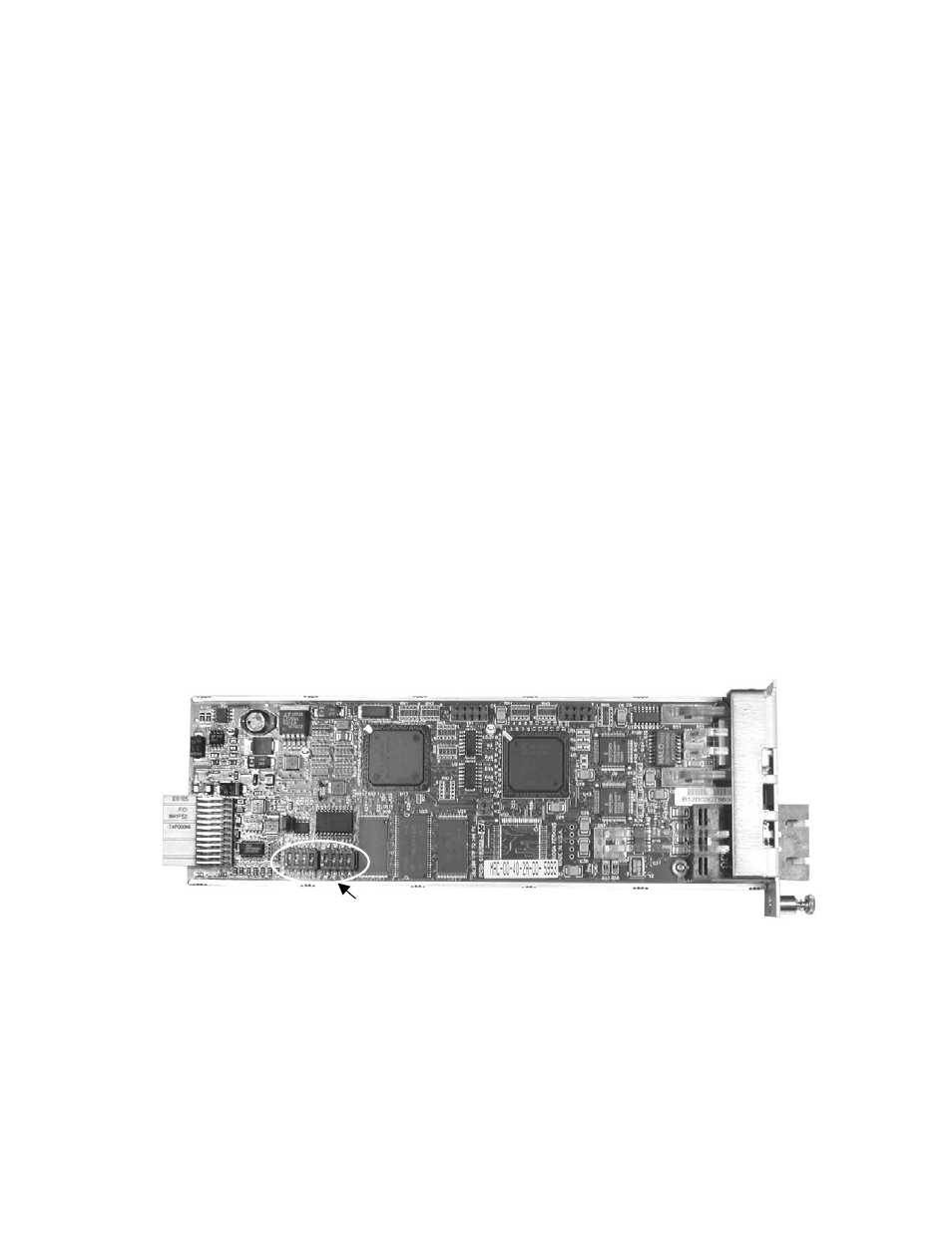

SW2 and SW3
Figure 2-1. SW2 and SW3 Locations
