Chapter 1 overview – CANOGA PERKINS L351 10/100BASE Media Converter User Manual
Page 13
EdgeAccess Universal Chassis System
L351 10/100BASE Media Converter
1-1
Chapter 1
Overview
The Edge Access L351 Series 10/100BASE Media Converters convert and extend Ethernet media
between Local Area Networks (LANs) located up to 120 Km apart.
In addition, the L351 offers Layer 2 statistics, local and remote loopback, remote software upgrade,
and remote control and monitoring through the SideBand Management Channel (SBMC).
1.1 L351
Series
The L351 receives and transmits 10/100BASE Ethernet data on single mode or multimode fiber optic
cable.
The L351 front panel, shown in Figure 1-1, includes:
• User port: UTP connector
• Extension port: SC connector, simplex or duplex; simplex requires a pair of L351s, one at
1310 nm wavelength and the other at 1550 nm wavelength
• Status LEDs:
• STA shows L351 status
• CFG shows configuration and setup status
• 100 and FDX show status for the User port
• LNK/RX and TX pairs for the User and Extension ports show that data is received and
transmitted

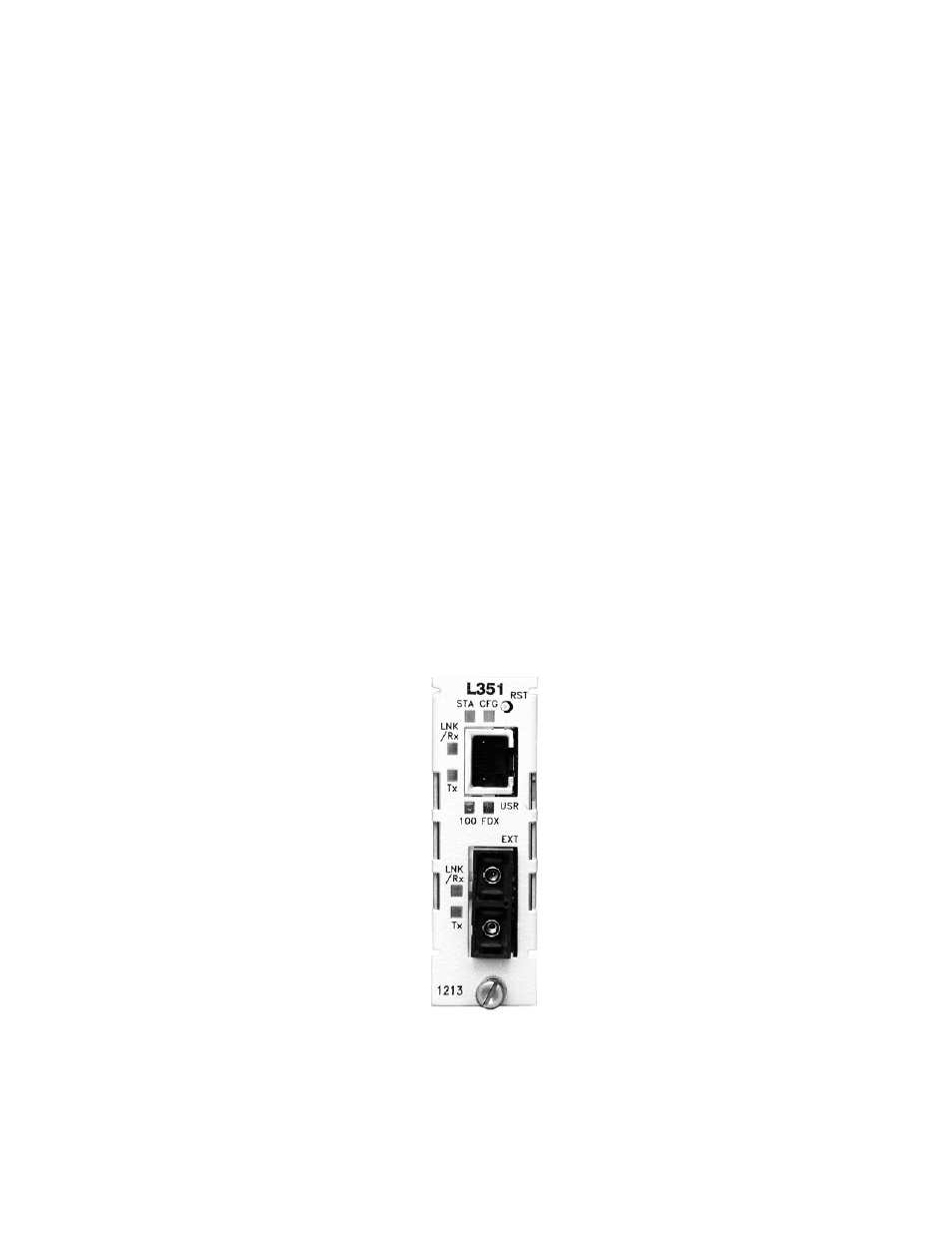

Figure 1-1. The L351
