WEBS-RETRO-MT Installation Instructions
Copyright 2009 Talk-A-Phone Co. All rights reserved.
Talk-A-Phone
Co.
• 7530 North Natchez Avenue • Niles, Illinois 60714-3804
Page 2 of 4
Phone 773.539.1100 • Fax 773.539.1241 • [email protected] • www.talkaphone.com
All prices and specifications are subject to change without notice.
Talk-A-Phone, Talk-A-Lert, Scream Alert and WEBS are registered trademarks of Talk-A-Phone Co.

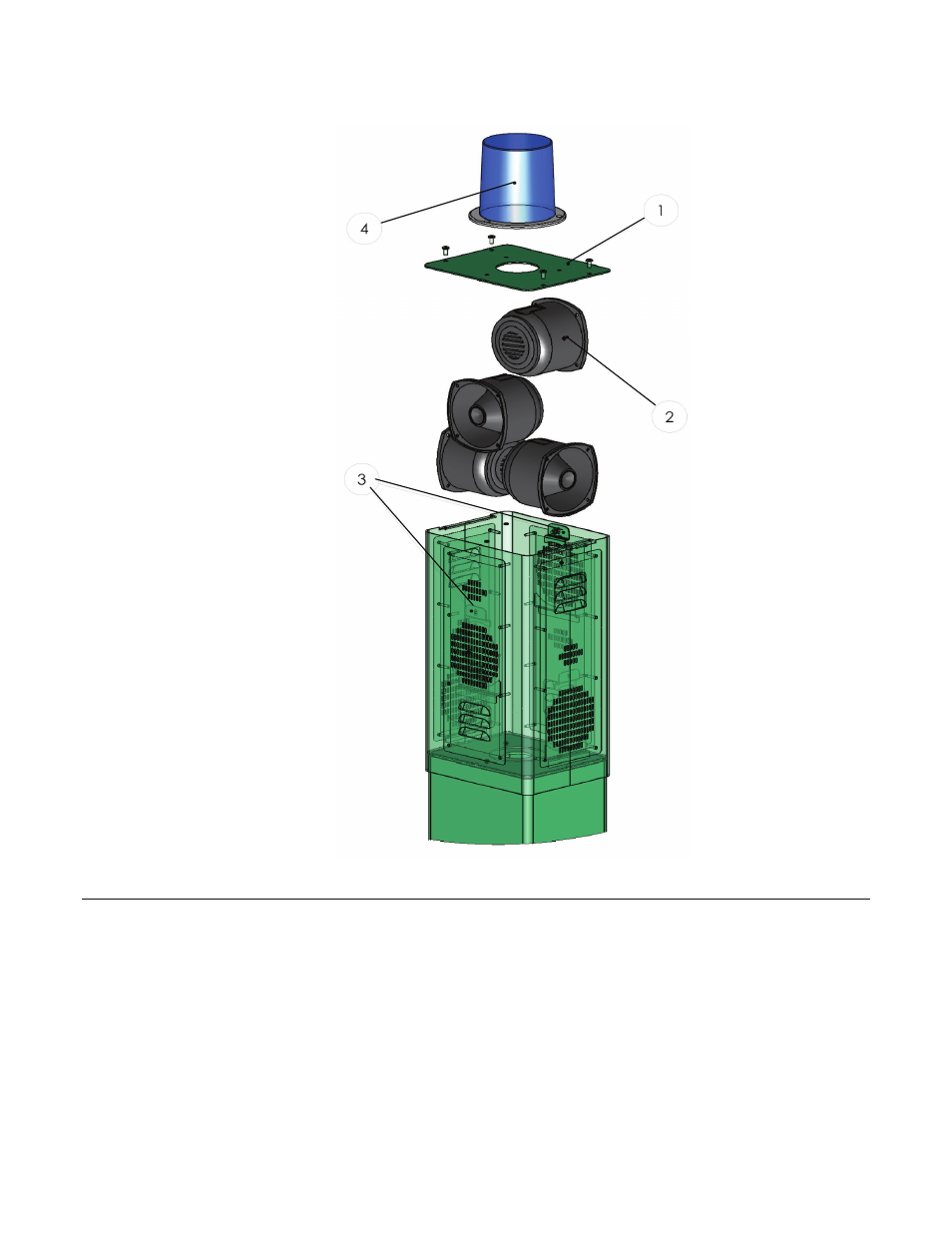

Figure 1. Installing the WEBS
®
Retrofit Tower Top: (1) Cap, (2) Loudspeaker, (3) Retainer Bracket, (4) Blue Light/Strobe
(B) Installing the Amplifiers
1) Remove the rear access panel from the ETP-MT Tower.
2) Fasten the amplifiers on to the mounting plates with the hex nuts provided.
3) Connect two WEBS
®
loudspeakers to each extension wire using the plug-in connectors. Connect the
other end of the cables to each of the amplifiers using the COM and 25V screw terminals (it does not
matter which wire goes to which screw terminal).
