OFNA Racing Ultra GTP MBX - Manual (Page 9)

3 x 20mm
Flat Head
Tapping Screw
30160
Front Lower
Arm Holder
4 x 15mm
Tapping Screw
( Small Head )
Assembly of the right and left hand side
are the same.
Assembly of the right and left hand side
are the same.
36901
Ball Type
Knuckle Arm
( Right and Left )
R
* Use 5mm
hex wrench.
36903
13.8mm
Steering Ball
36905
Steering Ball
Washer
36904
14mm
Alum. Nut
* Adjust alum. Nut to
keep steering ball
smoot.
* Note the "R" mark
is for righthand side.
R
36053
8x16mm
Ball Bearing
36053
8x16mm
Ball Bearing
36052
CVA
Constant Velocity Axle
4 x 10 mm
Set Screw
* A 4 x 10mm set screw is used
to adjust the ride height.
* Approx 3mm.
36870
4x4mm
Set Screw
36890
Front
Lower Arm
36900
Front
Upper Arm
3mm
3.5mm
R
36055
2.5 x 17mm
Pin
36054
Wheel Hub
( Alum. )
* Use 2.5mm
Hex Wrench.

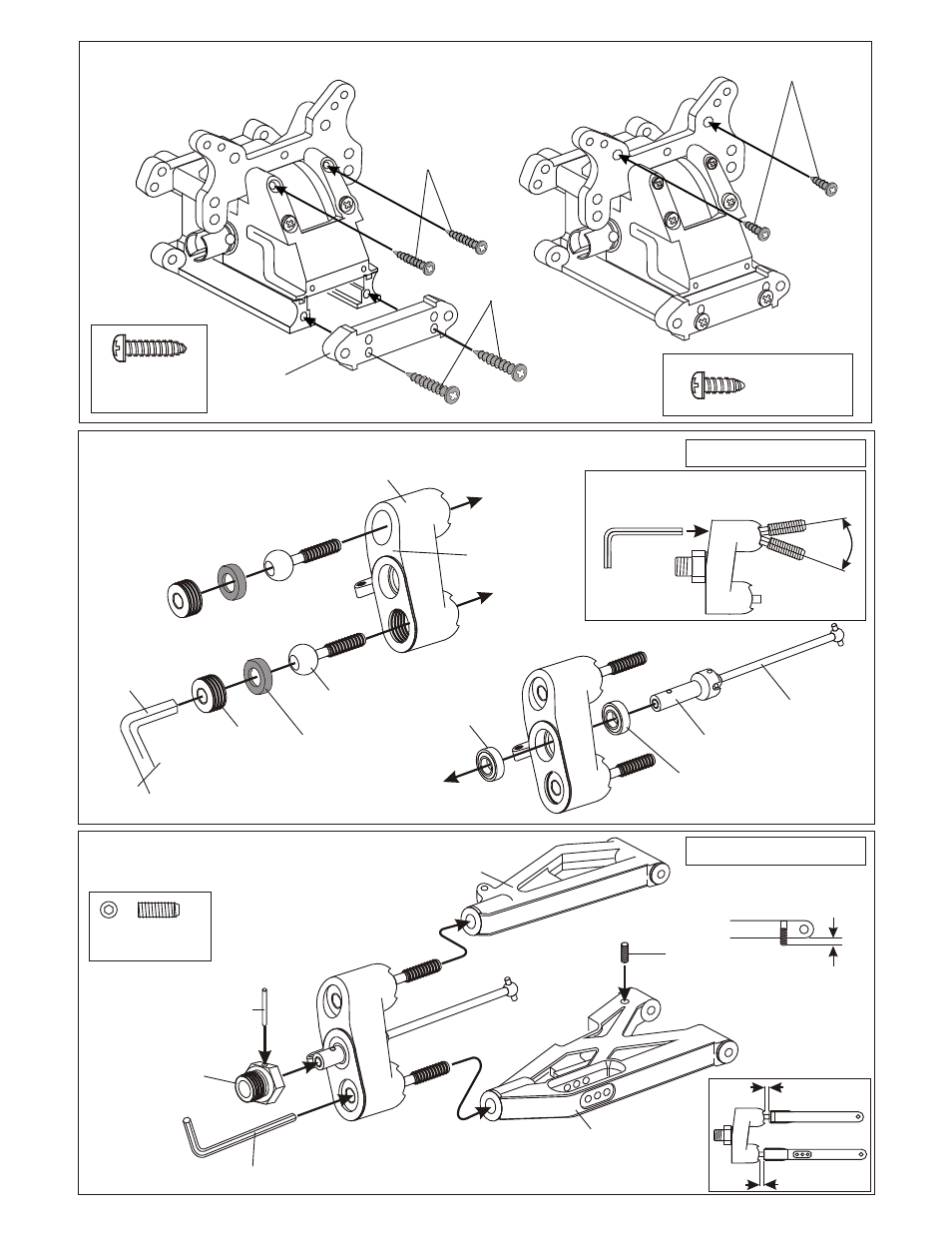

ASSEMBLY OF THE FRONT
PIVOT BALL KNUCKLE ARM
ASSEMBLY OF THE FRONT KNUCKLE ARM
INTO FRONT ARM
0
1
0
1
ASSEMBLY OF THE FRONT ARM HOLDER
4x10mm
Tapping Screw
4 x 15mm
Tapping Screw
( Small Head ) 4 x 10mm
Tapping Screw
( Small Head )
8mm
Axle
