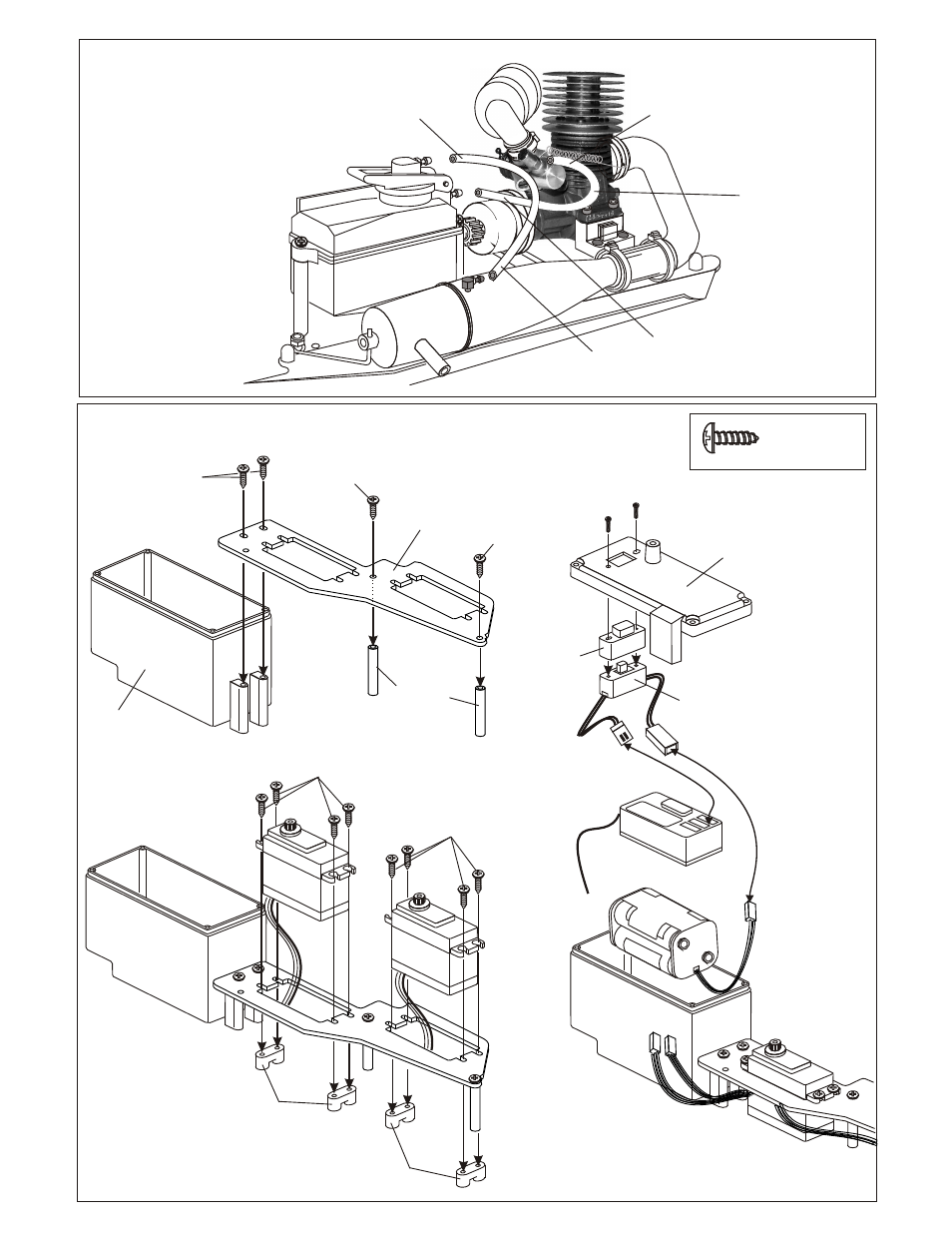

ASSEMBLY OF THE FUEL TUBE

* Connect to
fuel nipple.

* Connect to
carburetor.

* Connect to fuel tank
pressure nipple.

* Connect to
press nipple.

Fuel Tube

Switch

10280
Switch
Cover

* Use the screw provided
with your witch.

3 x 10mm
Tapping Screw

3 x 10mm
Tapping Screw

3 x 10mm
Tapping Screw

3 x 10mm
Tapping Screw

3 x 10mm
Tapping Screw

3 x 10mm
Tapping Screw

34020
Servo Mount

34020Servo Mount

Throttle Servo

Steering Servo

34032
Receiver Box

34061
Radio Tray

* Connect the wire to
receiver.

* Connect battery case
wire to switch.

* Connect switch wire
to receiver.

Receiver

Battery Case

ASSEMBLY OF THE RADIO TRAY AND SERVO

34032
Cover of the
receiver box

34031
Radio Tray
Pos, Nylont

30520
Radio Tray
Post, Alum.
