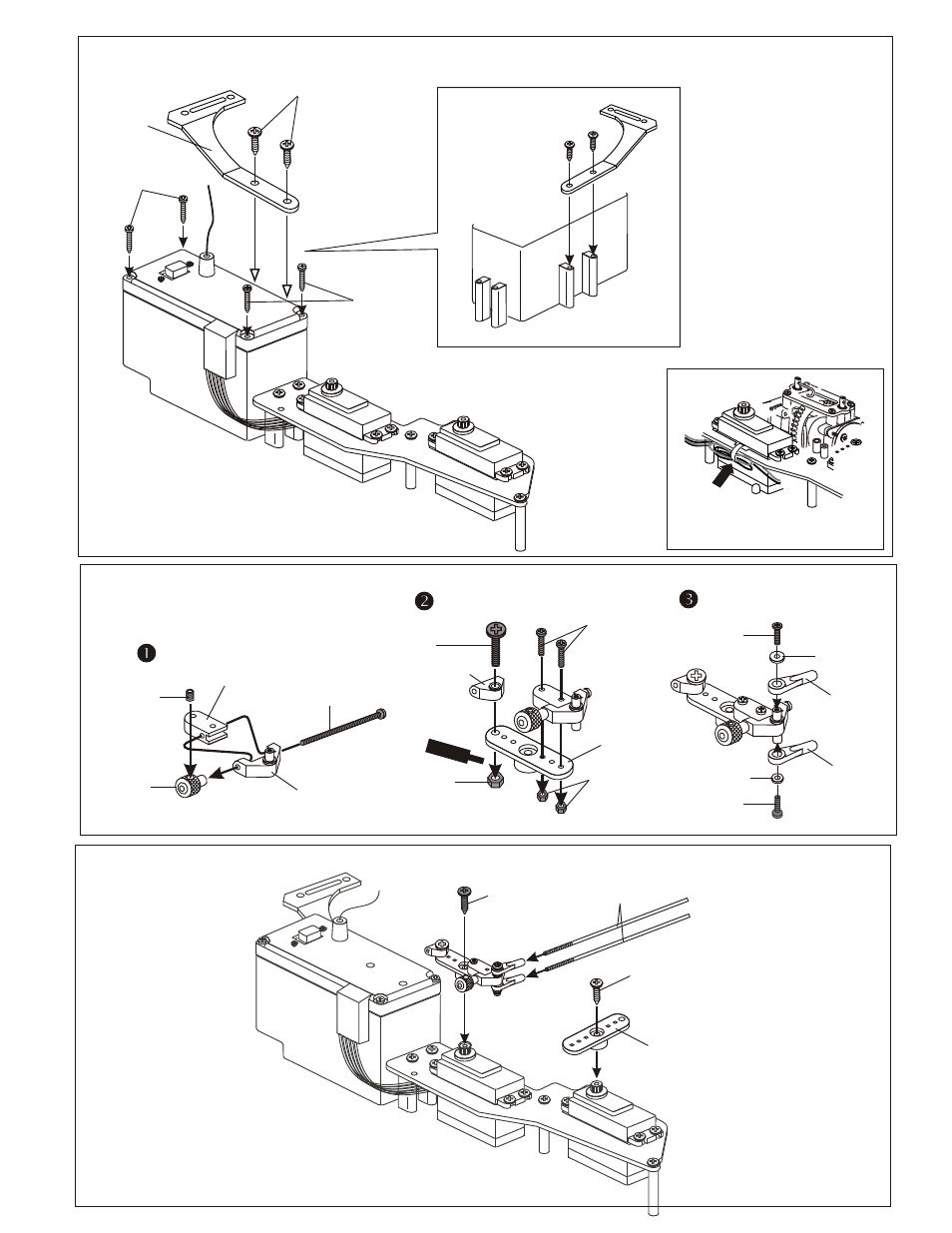

ASSEMBLY OF THE REAR STIFFENER

34070
Rear
Stiffener

* Use the screw provided
with your radio.

30172
2mm Rod

* Use the screw provided
with your radio.

Steering
Servo Horn

2.6x10
Tapping Screw

2.6x10
Tapping Screw

ASSEMBLY OF THE SERVO HORN LINKAGE
INTO SERVO

* Use the small strap to
secure the servo wire.

ASSEMBLY OF THE BRAKE SYSTEM

3X3mm
Set Screw

36140
2mm
Adjust Nut

Servo Mount

2x25mm
Screw

( Use #30800 brake linkage plastic parts set. )

Adjust
Mount

3mm
Nut

Slider

3x12mm
Screw

2x8mm
Screw

2mm Nut

2mm
Tie-Rod End

2mm
Tie-Rod End

2x6mm
Washer

2x6mm
Washer

2x4mm
Screw

2x4mm
Screw

Screw

Cemen

t

Servo Horn
